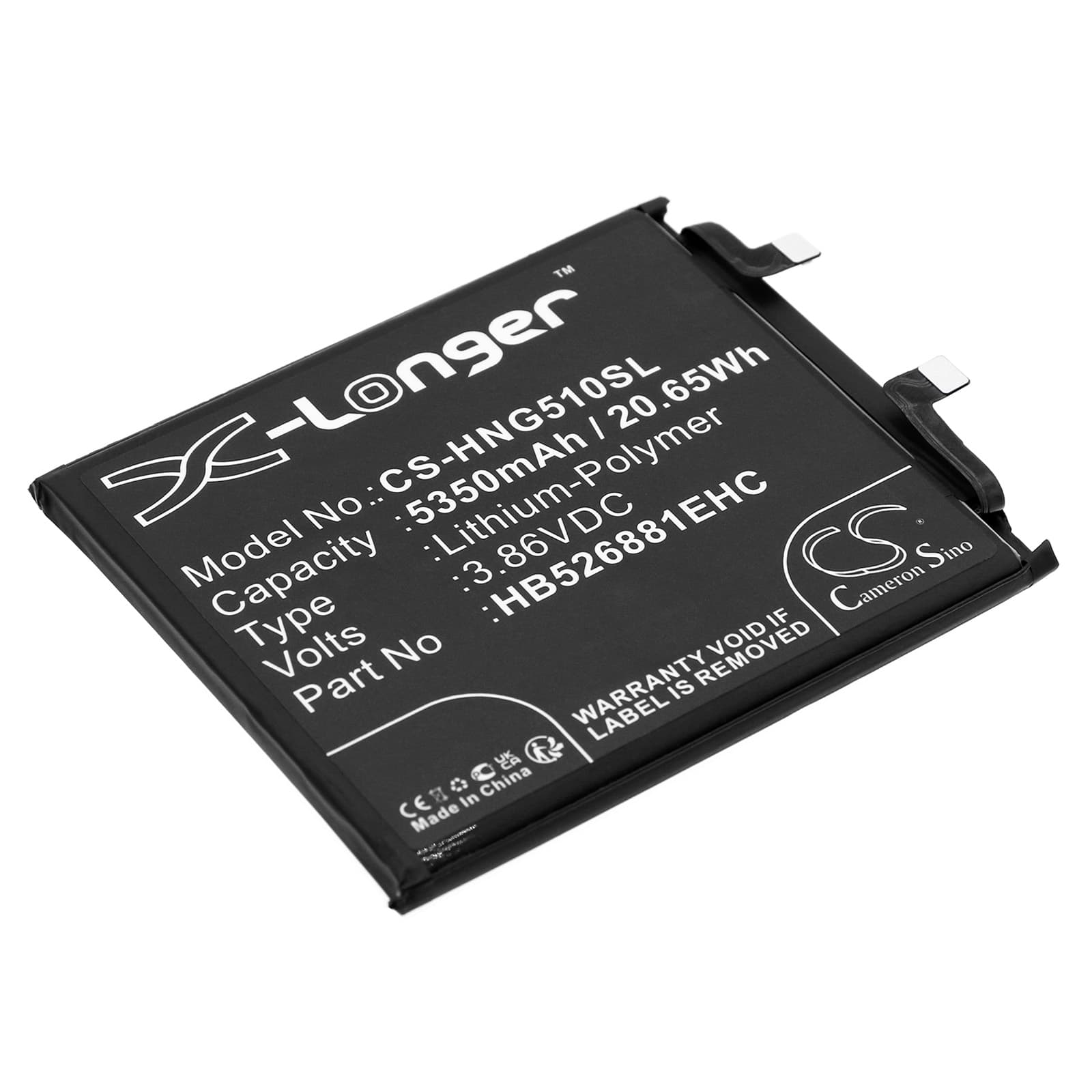

Honor Magic 5 Pro — 3.86V Li-Polymer Replacement Battery (HB526881EHC)
This 3.86V Li-Polymer battery carries OEM part number HB526881EHC and fits the Honor Magic 5 Pro, including variants PGT-AN10 and PGT-AN20. Capacity is 5350mAh (20.65Wh), matching the original cell specification. It replaces a degraded original cell when charge capacity has dropped noticeably or the phone shuts down unexpectedly under load.
- PGT-AN10 and PGT-AN20 compatibility: Both hardware variants share the same battery bay dimensions, connector pinout, and BMS handshake protocol. The fuel gauge IC on each board reads cell data from the same register map, so one cell revision covers both.
- Bench tested on actual hardware: We cycled this cell through full discharge and charge on a Magic 5 Pro unit. The BMS accepted the cell on first insertion, charge current ramped correctly through CC/CV stages, and the protection circuit tripped normally at the low-voltage cutoff threshold.
- Fuel gauge recalibration after install: On first use after installation, disable fast charging and run one complete discharge-charge cycle on standard charging. This lets the fuel gauge IC map the new cell's discharge curve before the coulomb counter locks in its reference points — skipping this step causes erratic percentage readings in the first few days.
Sudden shutdown at 20–30% on the Magic 5 Pro replacement cell
This happens because the fuel gauge IC is still running the discharge curve from the old, degraded cell. The new cell's actual voltage at nominal 25% state-of-charge sits slightly lower than what the IC expects, so the phone reads safe headroom right up until the cell voltage drops sharply under modem or display load. The BMS then cuts output to protect the cell before the OS can react. One full slow-charge cycle — charge to 100%, drain to automatic shutdown, recharge fully — resets the coulomb counter reference and eliminates the false cutoff.
USB-PD fast charge not activating on the first cycle after replacement
Honor's proprietary fast charge protocol requires the charge IC to handshake with the battery BMS before stepping up current. On a brand-new cell, the BMS ships in a conservative state and may not respond to the fast charge negotiation request on the first charge attempt. Plug into the original Honor charger, not a third-party USB-PD adapter, and allow the first cycle to complete at whatever rate the charger establishes. By the second charge cycle, the BMS handshake completes normally and full fast charge current resumes — confirm this by checking that the phone displays the fast charging indicator within 30 seconds of connection.
