About this replacement

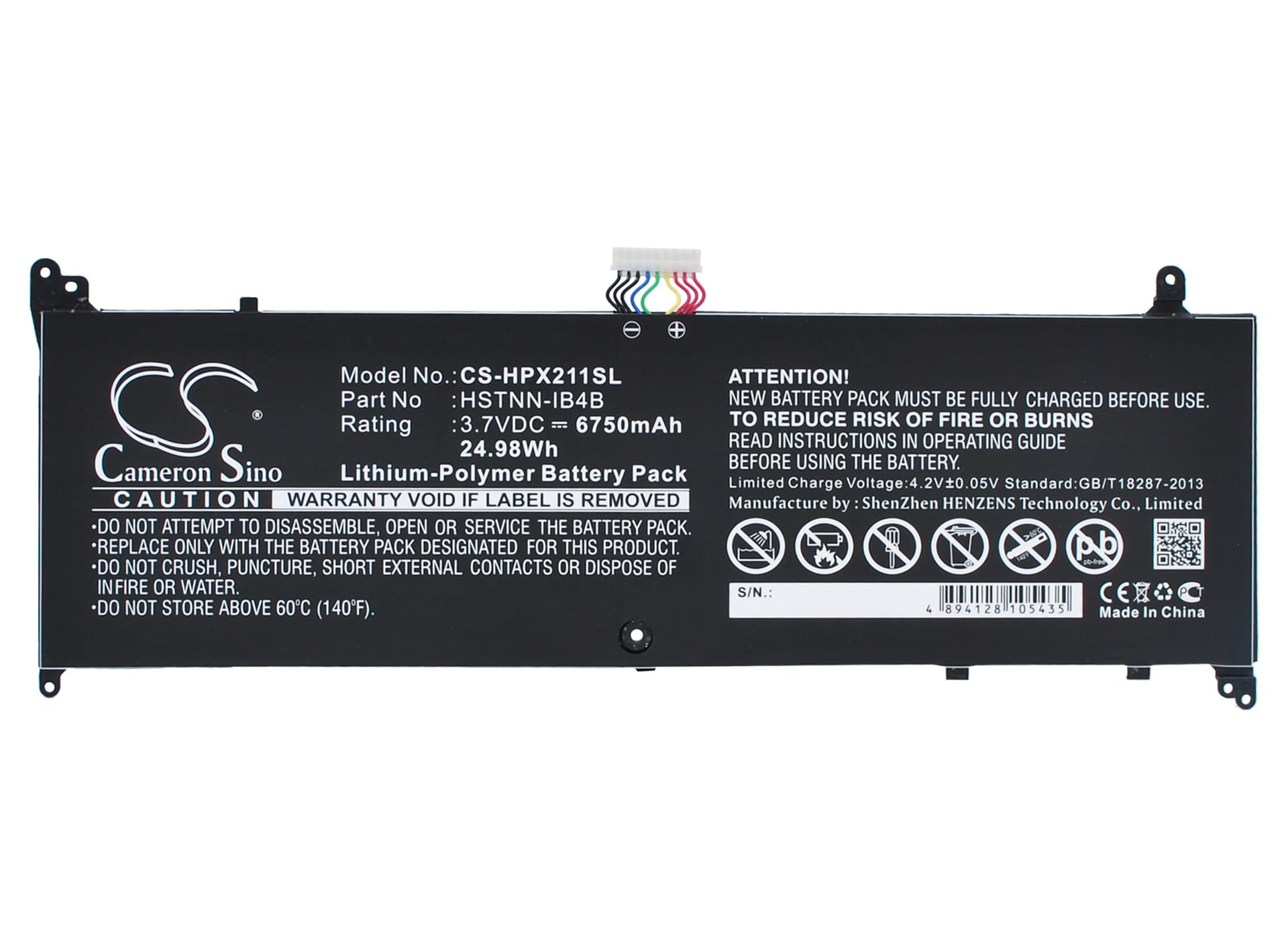

HP Envy X2 11 — 3.7V Li-Polymer Replacement Battery (HSTNN-IB4B)
This 3.7V, 6750mAh lithium-polymer battery fits the HP Envy X2 11 detachable tablet. It replaces OEM part numbers HSTNN-IB4B, DW02XL, HSTNN-DB4B, and 694398-2C1. Fits the Envy X2 11 base tablet unit, including models TPN-104, 11-G012NR, and 11-G010NR.
- Envy X2 11 tablet platform: These models share the same flat Li-Polymer cell format, connector pinout, and BMS communication protocol. The 265.75 × 96.04 × 3.60 mm cell slots into the tablet chassis without modification, and the BMS handshake with the HP EC firmware runs identically across the listed model variants.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on an Envy X2 11 unit. The BMS accepted the new cell without fault flags, charge IC negotiation completed normally, and voltage held steady across the display-plus-WiFi load profile typical of this tablet.
- Fuel gauge recalibration after swap: After installing this battery, run one full discharge to automatic shutoff, then charge uninterrupted to 100%. The HP EC firmware calibrates its fuel gauge IC against the old cell's wear curve — one complete cycle resets that calibration against the new cell and clears inaccurate percentage readings.
Why the Envy X2 11 shuts down at 15–25% after a battery swap
The HP embedded controller tracks a learned voltage-discharge curve from the original cell. A new cell has a different internal resistance and voltage slope at low charge states. When the EC sees the voltage drop faster than its stored curve predicts — typically under combined display brightness and WiFi load — it triggers an emergency cutoff before the gauge reaches 0%. One full calibration cycle teaches the EC the new cell's actual low-voltage behaviour and eliminates the early cutoff.
Fast charging not available after battery replacement on the Envy X2 11
The Envy X2 11 charge IC runs a negotiation sequence with the battery BMS on the first charge cycle after a new cell is installed. Until that handshake completes successfully, the firmware defaults to a conservative slow-charge rate as a safety measure. Plug in via the original HP AC adapter and allow one full uninterrupted charge to 100% — do not disconnect partway through. After that cycle, the charge IC accepts the higher rate and fast charging resumes at the expected wattage.
