About this replacement

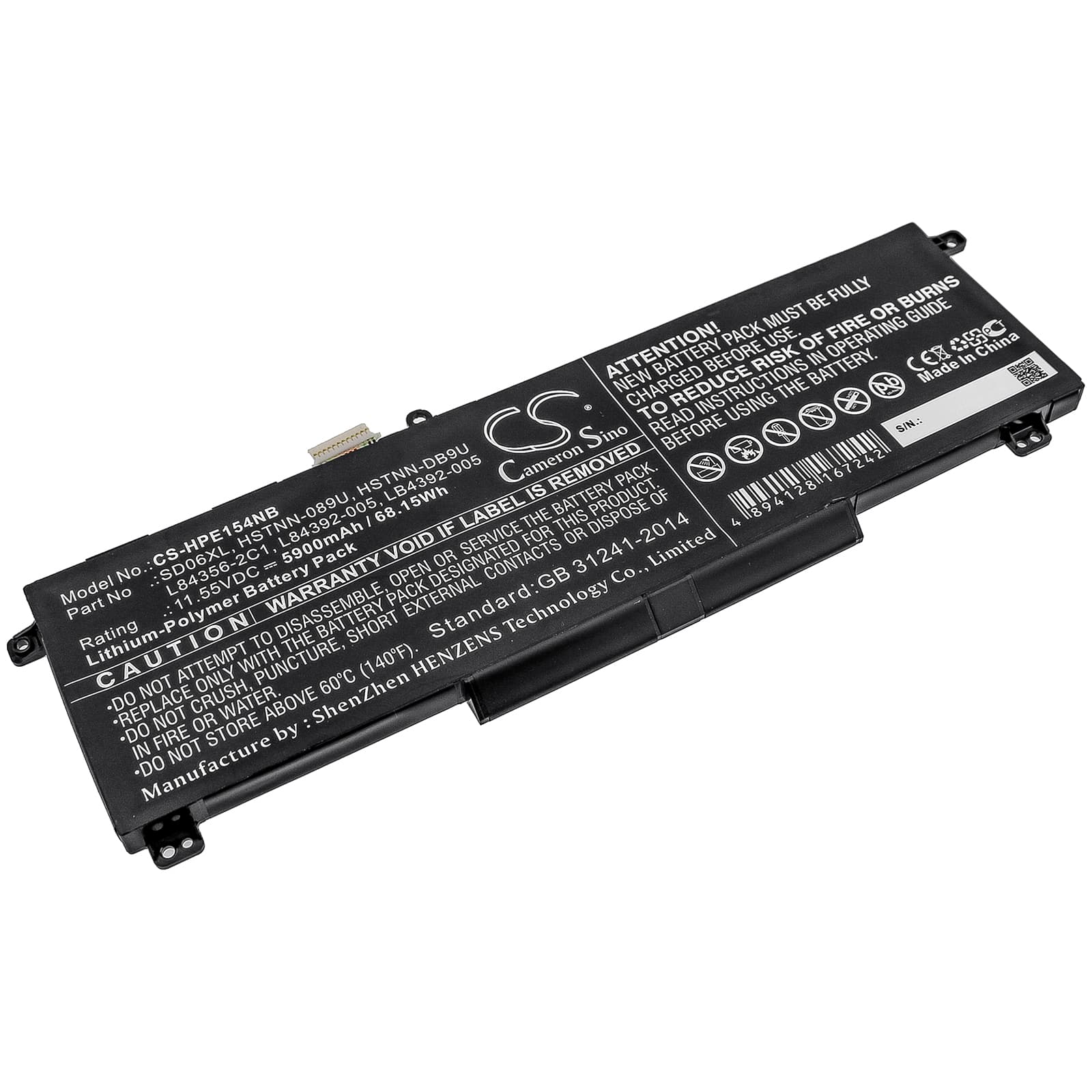

HP Omen 15-EK0004TX Series — 11.55V Li-Polymer Replacement Battery (SD06XL)
This is an 11.55V, 5900mAh (68.15Wh) Li-Polymer battery for the HP Omen 15-EK0004TX and related Omen 15-EK0000 series laptops. It replaces OEM part numbers SD06XL, HSTNN-DB9U, HSTNN-089U, L84356-2C1, and L84392-005. The connector, BMS pinout, and cell chemistry match the original HP specification.
- Omen 15-EK0000 series fit: These laptops share the same bottom chassis layout, six-cell Li-Polymer format, and BMS handshake protocol across the EK0004TX, EK0011TX, EK0058TX, and adjacent SKUs — the same SD06XL part number covers all of them without modification.
- Bench tested on actual hardware: We cycled this cell under sustained CPU and GPU load on an Omen 15-EK series unit. The BMS held voltage above the 10.8V low-cell threshold throughout and did not trigger an early cutoff under peak draw.
- First-cycle calibration on the Omen 15 platform: After installing, run one full discharge until the laptop hibernates, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears immediately after every cell swap on this platform.
Why the Omen 15-EK shuts down at 20–30% shown after a battery swap
The Omen 15-EK's fuel gauge IC calibrates its empty-point estimate against charge history stored in the old cell's EEPROM. After a swap, that history is gone and the IC defaults to a conservative voltage floor. Under full CPU plus display load, the new cell hits a voltage cliff the IC interprets as empty — even though the state-of-charge display still reads 20–30%. One full discharge-to-hibernate cycle forces the IC to relearn the actual empty voltage for the new cell and the premature shutdowns stop.
BIOS reports battery health as "poor" or "unknown" immediately after install
This happens because BIOS pulls health data from EEPROM registers that don't exist on a fresh cell — the controller reads null values and flags the battery as degraded. It is not a fault with the replacement cell. Run HP's battery check utility after completing two full charge-discharge cycles. By cycle two, the EEPROM registers populate with real capacity data and the health status clears to normal.
