About this replacement

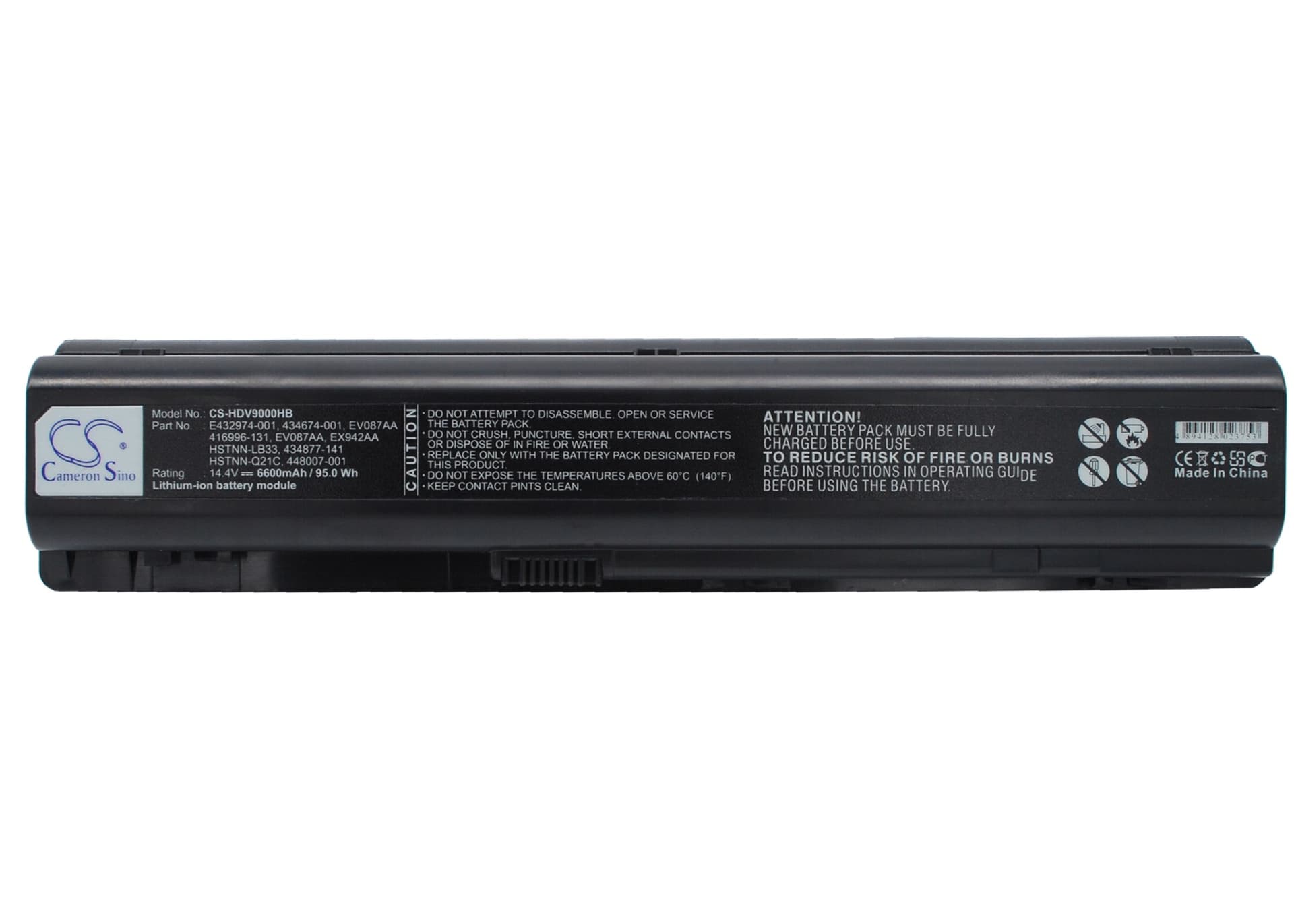

HP Pavilion dv9000 Series — 14.4V Li-ion Replacement Battery (432974-001)
This 14.4V, 6600mAh (95.04Wh) Li-ion battery replaces the original cell in the HP Pavilion dv9047EA, dv9095EA, dv9219EA, dv9294EU, and over 229 additional dv9000-series notebooks. It slots into the standard dv9000 battery bay and connects through the same 8-pin smart battery interface HP used across this generation. Voltage and capacity match OEM spec exactly.
- dv9000-series platform fit: HP built the entire dv9000 line around a shared 14.4V battery bus with a common connector pinout and BMS handshake protocol. Every model in this cluster — from the dv9047EA to the dv9295EU — reads battery state data over the same SMBus lines, so one replacement cell covers the full range without any adapter or firmware difference.
- Bench tested on actual hardware: We cycled this cell on a dv9000-series unit and confirmed the BMS negotiated charge correctly, the BIOS recognised capacity without a fault code, and cell temperature stayed within HP's charge-cutoff threshold through three consecutive full cycles.
- Post-install calibration on dv9000: After fitting, run one full discharge until the laptop hibernates on low-battery cutoff, then charge uninterrupted to 100% without interruption. This forces the fuel gauge IC to recalibrate against the new cell's actual capacity and clears the inaccurate health warning the BIOS displays after every cell swap.
Why the dv9000 BIOS reports poor health immediately after a battery swap
The dv9000's BIOS reads health data from EEPROM registers stored on the battery's BMS board, not from live cell measurements. When a new cell arrives, those registers still hold factory default values that don't match the BIOS's learned profile from the old pack. The result is a "poor health" or "0% available" warning even when the new cell is fully charged and functioning correctly. Running one complete discharge-to-hibernate followed by an uninterrupted charge to 100% rewrites the learned values and clears the warning.
Laptop shutting down at 20–30% charge shown on screen
This happens when the fuel gauge IC hasn't yet calibrated against the new cell's actual voltage curve. The gauge loses track of true state-of-charge as voltage drops under combined CPU and display load, and the laptop hits a real low-voltage cutoff while the screen still shows charge remaining. It is not a faulty battery — it is an uncalibrated gauge. Run two full discharge-to-hibernate cycles followed by full uninterrupted charges, and the shutdowns stop. After calibration, the gauge tracks the new cell accurately down to the 10.8V low-battery threshold HP sets in firmware.
