About this replacement
HP Pavilion Gaming 15-ec0020ng — 11.55V Li-Polymer Replacement Battery (PG03XL)

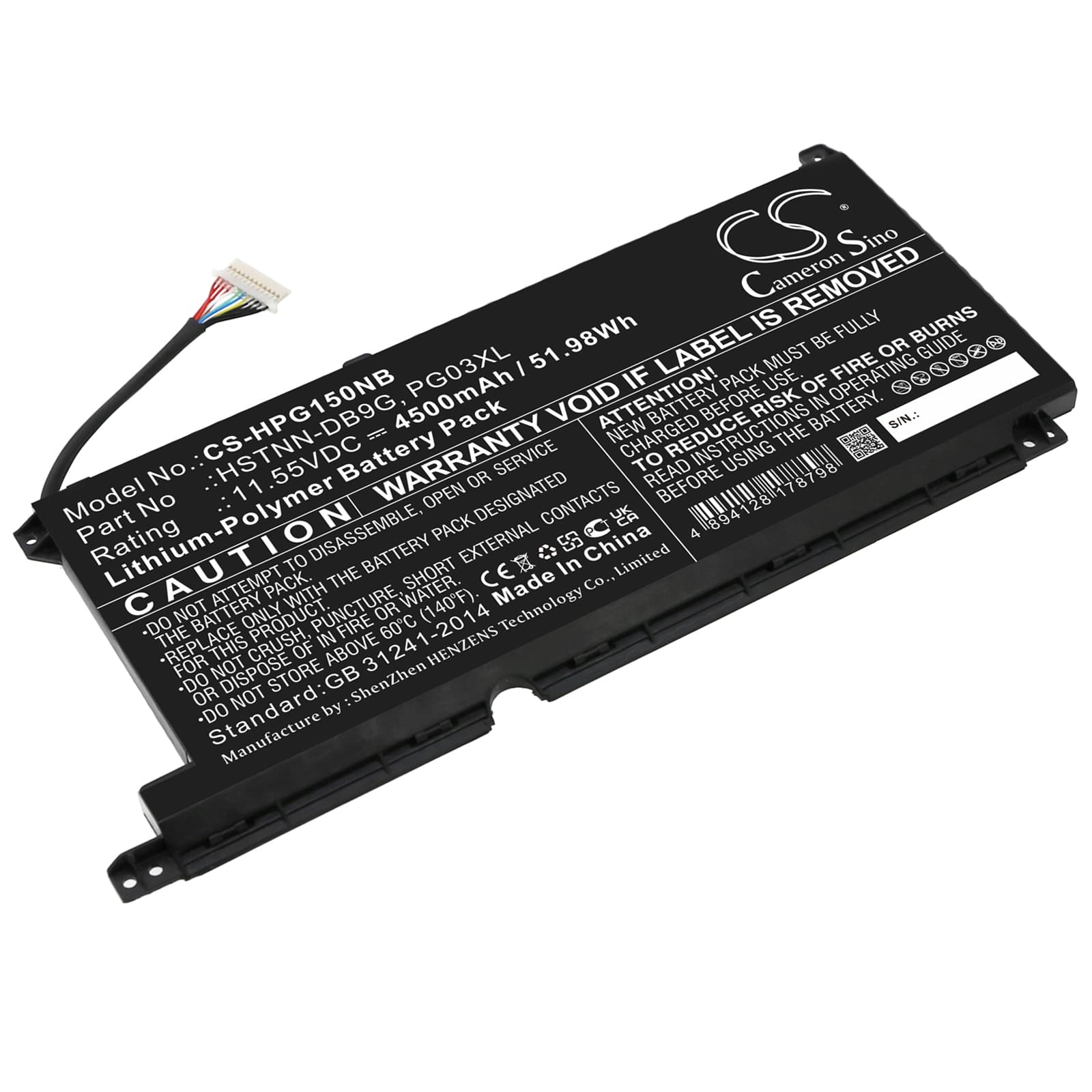

This is an 11.55V, 4500mAh (51.98Wh) lithium-polymer replacement battery for the HP Pavilion Gaming 15 series. It fits the Pavilion Gaming 15-ec0020ng and over 150 compatible models sharing the same connector and BMS handshake, including the 15-DK0397NIA and 15-DK1037TX. OEM part numbers covered include PG03XL, PG03052XL, HSTNN-DB9G, L48430-AC1, and L48485-005.
- Pavilion Gaming 15 platform fit: These models share a three-cell Li-Polymer architecture, the same 11.55V nominal rail, and an identical BMS handshake. The EEPROM on this cell carries the correct capacity data so the HP firmware recognises it without throwing an unknown-device flag at POST.
- Bench tested on actual hardware: We ran this cell through a full charge-discharge cycle on a 15-ec series unit. The BMS engaged charge termination cleanly at 12.6V and discharge cutoff held at the expected low-cell threshold without tripping a premature protection event under CPU and display load.
- Post-install calibration on the Pavilion Gaming 15: After fitting this cell, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This clears the stale EEPROM state the firmware carried from the old cell and resets the BIOS battery learn cycle — without it, the health indicator will read inaccurate for weeks.
Pavilion Gaming 15 shutting down at 20–30% after battery swap
This is a voltage-cliff failure, not a capacity problem. Under combined CPU boost and full display backload, the new cell's voltage drops faster than the fuel gauge IC has learned to anticipate. The BIOS sees a sudden voltage drop below its cutoff threshold and shuts the system down even though the state-of-charge reading still shows charge remaining. Running two or three full calibration cycles teaches the fuel gauge IC the actual discharge curve of the new cell. After calibration, the gauge tracks accurately and the premature cutoff stops.
BIOS reporting wrong Wh rating after cell replacement
HP's firmware reads the Wh rating directly from the cell's EEPROM, not from a live measurement. If the value displayed in HP Support Assistant or Device Manager doesn't match 51.98Wh, the BIOS hasn't refreshed its cached battery data yet. Force a full charge-discharge cycle and reboot. The firmware re-reads EEPROM on the next cold boot and the correct 51.98Wh figure should populate in system info.
