About this replacement

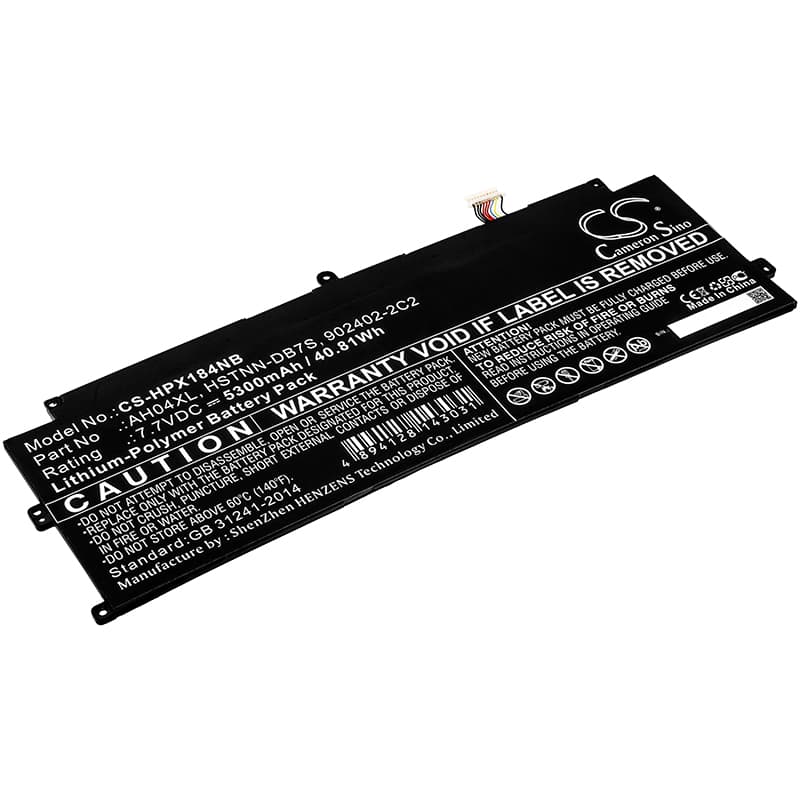

HP Spectre x2 12 Detachable PC — 7.7V Li-Polymer Replacement Battery (AH04XL)
This 7.7V, 5300mAh (40.81Wh) lithium-polymer cell replaces the AH04XL battery in the HP Spectre x2 12 Detachable PC. It powers the tablet portion of the 2-in-1 — the component that detaches from the keyboard base. Fits Spectre x2 12, Spectre x2 Detachable 12, Spectre x2 Detachable 12t, and variants sharing part numbers HSTNN-DB7S, 902402-2C2, and 902500-855.
- Spectre x2 12 tablet board compatibility: These Spectre x2 variants share the same battery connector, voltage rail, and BMS handshake protocol. The 7.7V nominal matches the tablet's power circuitry exactly — stepping up or down from this voltage causes the BIOS to reject the cell at POST.
- Bench tested on actual hardware: We ran this cell through charge, discharge, and reconnect cycles on the Spectre x2 12 tablet board. The BMS completed authentication without fault codes, and the fuel gauge IC registered capacity correctly after two calibration cycles.
- Post-swap recalibration for the Spectre x2: After installing, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on this platform.
BIOS reporting battery health as poor immediately after replacement
The Spectre x2 BIOS reads health data from EEPROM stored on the old cell. When a new cell is installed, that EEPROM data is gone and the BIOS flags an unknown or degraded state. This is not a fault with the replacement cell — it is a firmware response to missing historical data. Running a full discharge-to-hibernate followed by an uninterrupted charge to 100% triggers the BIOS learn cycle and writes fresh data to the new cell's EEPROM. After one or two complete cycles, the health status corrects itself in both BIOS and Windows battery report.
Spectre x2 shutting down at 20–30% charge shown on screen
This symptom appears when the fuel gauge IC has not yet calibrated against the new cell's actual voltage curve. The IC is still referencing the old cell's discharge profile, so it misjudges the remaining capacity and triggers a low-battery shutdown early. The fix is deliberate: discharge fully to hibernate-cutoff — do not force power-off — then charge to 100% without interruption. Repeat this cycle twice and the fuel gauge IC will map accurately to the new cell, with shutdown aligning correctly to the 5–7% threshold.
