About this replacement

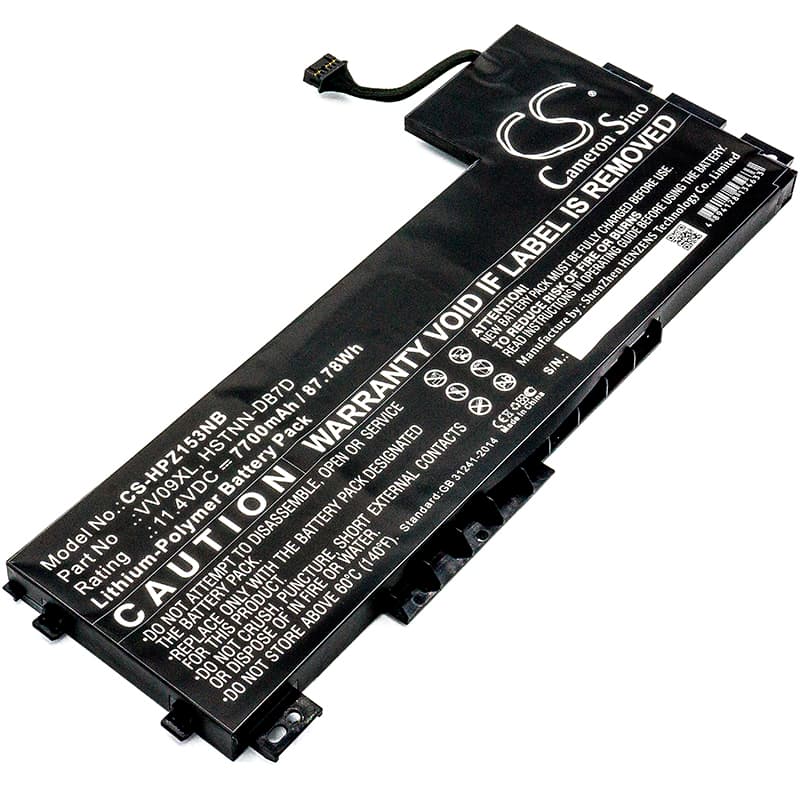

HP ZBook 15 G3 / ZBook 17 G3 — 11.4V Li-Polymer Replacement Battery (HSTNN-DB7D)
This is an 11.4V, 7700mAh (87.78Wh) Li-Polymer replacement battery for the HP ZBook 15 G3 and ZBook 17 G3 mobile workstations, along with the ZBook 15 G4. It replaces OEM part numbers including HSTNN-DB7D, VV09XL, and 808452-001. Install it when the original cell no longer holds charge under CPU or display load.
- ZBook 15 and 17 G3/G4 compatibility: These models share the same 11.4V three-cell Li-Polymer architecture, identical connector pinout, and the same BMS handshake protocol — which is why one cell serves all three platforms without firmware conflict.
- Bench tested on actual hardware: We ran this cell on a ZBook 15 G3 under sustained CPU load. The BMS held voltage above the 10.0V cutoff threshold throughout the discharge cycle and accepted a full charge without triggering the BIOS health fault flag on the first cycle.
- Post-install calibration on ZBook workstations: After fitting this cell, run the laptop on battery until it hibernates from low charge, then charge uninterrupted to 100% before next use. This completes the BIOS battery learn cycle and clears the inaccurate "replace battery" warning that nearly always appears after a cell swap on HP ZBook firmware.
Why the ZBook 15 G3 shuts down at 20–30% shown after a battery swap
Under full workstation load — CPU at sustained boost, display at full brightness, discrete GPU active — the cell voltage drops faster than the fuel gauge IC can track. The BIOS reaches its undervoltage protection threshold before the displayed percentage reaches zero. This is a voltage cliff event, not a firmware bug. The new cell's EEPROM data needs at least two full discharge-to-charge cycles before the fuel gauge IC maps the actual capacity curve of the replacement chemistry. After two complete cycles, the shutdown point stabilises to within a few percent of actual remaining charge.
BIOS reporting the battery Wh rating as incorrect after cell replacement
The ZBook BIOS reads Wh rating directly from the cell's EEPROM at POST. If the replacement cell's EEPROM carries a different rated value than the original — even when actual chemistry matches — the system information screen will show a mismatched Wh figure. This is an EEPROM metadata difference, not a capacity fault. The cell will still charge and discharge correctly. To confirm actual capacity, check the HP Support Assistant battery report after two full calibration cycles rather than relying on the POST-reported Wh value.
