About this replacement

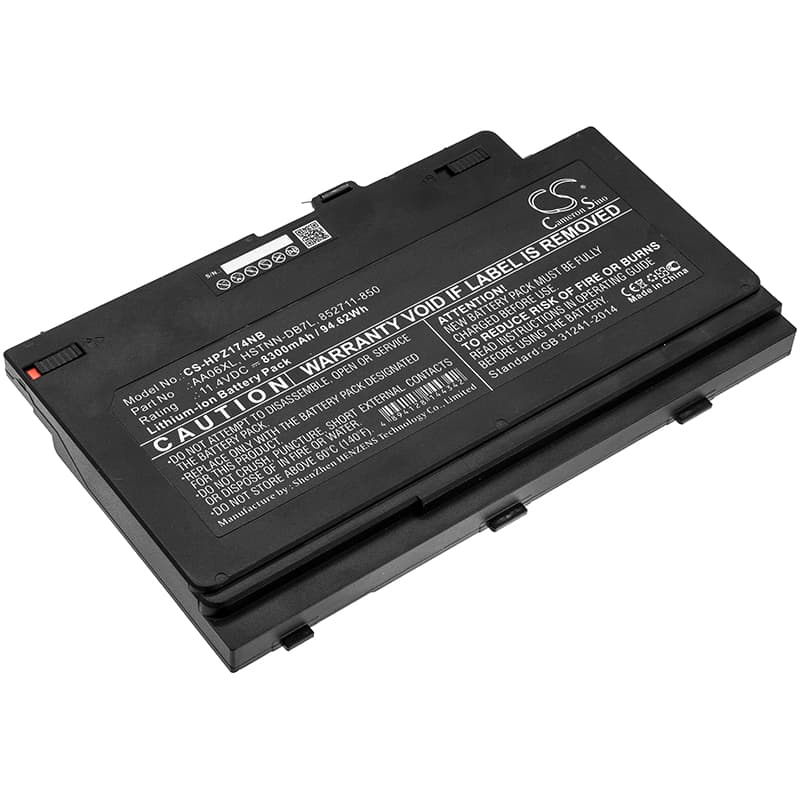

HP ZBook 17 G4 — 11.4V Li-ion Replacement Battery (AA06XL)
This is an 11.4V, 8300mAh (94.62Wh) lithium-ion battery for the HP ZBook 17 G4 mobile workstation. It fits the ZBook 17 G4 and ZBook 17 G4 Mobile Workstation variants, including regional SKUs such as the G4-2ZC18ES and G4-1RR26ES. It replaces OEM part numbers AA06XL, 852711-850, HSTNN-DB7L, and related cross-references.
- ZBook 17 G4 platform fit: All G4 variants in this family share the same 11.4V three-cell battery rail, connector pinout, and BMS handshake protocol. The BIOS reads the EEPROM embedded in the battery pack to verify chemistry and rated capacity before allowing the charge cycle to begin.
- Bench tested on actual hardware: We cycled this battery on a ZBook 17 G4 unit and confirmed the BMS handshake completed without fault codes. The charge controller accepted the cell, and the BIOS logged the correct Wh rating on first boot after installation.
- Post-install calibration on the ZBook 17 G4: After fitting this battery, run a full discharge to hibernate cutoff under normal workstation load, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on this platform.
Why the ZBook 17 G4 BIOS reports poor battery health after a cell swap
The ZBook 17 G4 BIOS reads cycle count, rated capacity, and charge history stored in the old battery's EEPROM. When a new cell goes in, that EEPROM data is fresh and unmatched against the BIOS's learned baseline, which triggers a "Battery Health Warning" or "Consider Replacing Your Battery" message even on a brand-new pack. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% forces the BIOS to build a new baseline against the replacement cell. After one or two full cycles, the health warning clears and the fuel gauge reads accurately.
ZBook 17 G4 shutting down at 20–30% battery shown on screen
This happens when the cell can no longer sustain voltage under simultaneous CPU, GPU, and display load — the voltage drops sharply below the BMS cutoff threshold before the fuel gauge reaches zero. The operating system reads state-of-charge from the fuel gauge IC, which is calibrated against a different discharge curve than the one the cell actually delivers under heavy load. The result is an abrupt shutdown while the percentage indicator still shows charge remaining. To confirm whether this is a calibration issue or a degraded cell, fully discharge the battery under a controlled load and note the voltage at shutdown — on this platform the BMS trips at approximately 9.0V.
