About this replacement

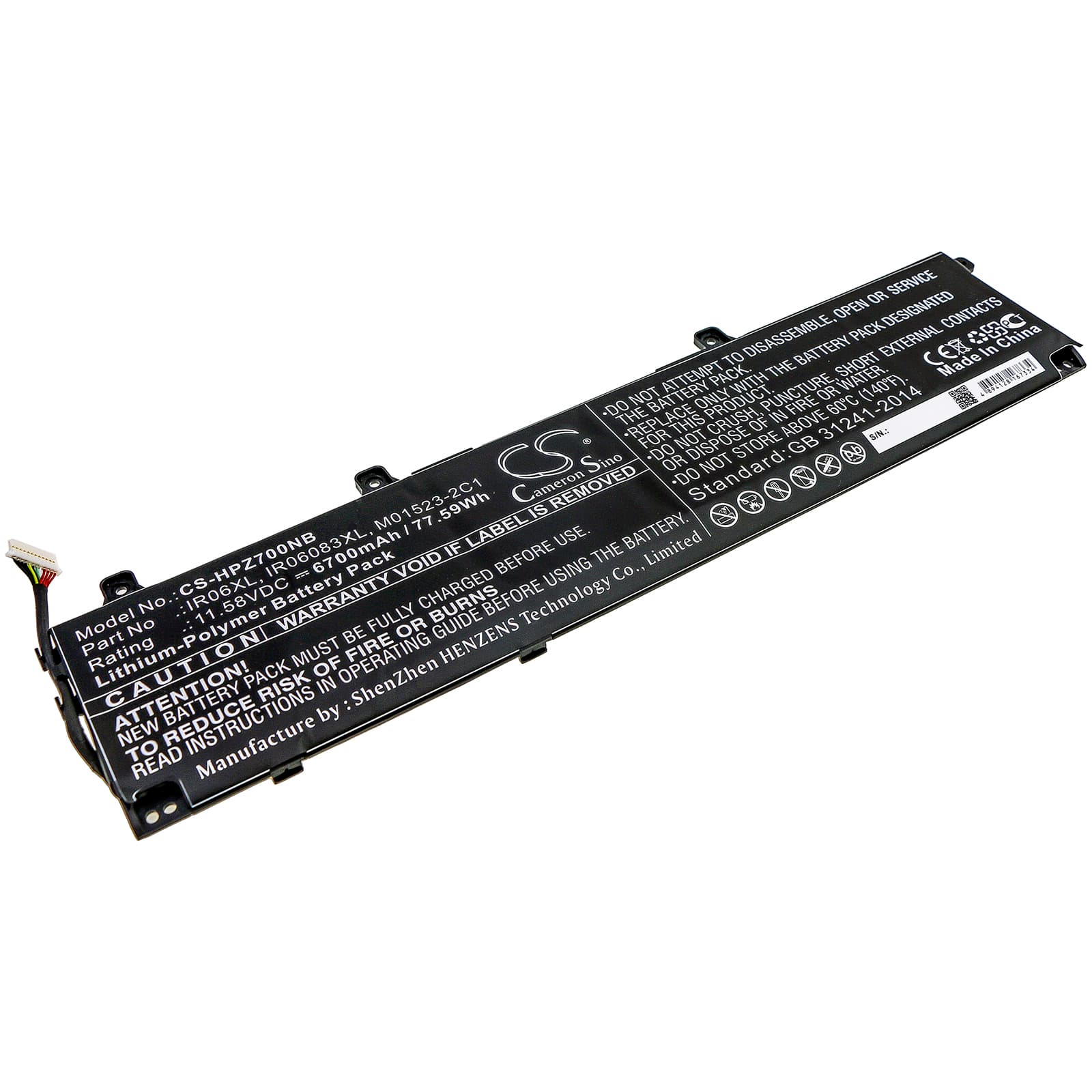

HP ZBook Power G7 — 11.58V Li-Polymer Replacement Battery (IR06XL)
This is an 11.58V, 6700mAh (77.59Wh) Li-Polymer battery pack for the HP ZBook Power G7 mobile workstation. It replaces OEM part numbers IR06XL, IR06083XL, and M01523-2C1. If your original cell is swelling, won't hold charge, or the ZBook shuts down unexpectedly under load, this is the direct swap.
- ZBook Power G7 fitment: HP built the ZBook Power G7 around a specific 3-cell Li-Polymer pack with an embedded BMS that handshakes with the BIOS. The IR06XL connector, cell count, and communication protocol match what the firmware expects — no adapter or modification needed.
- Bench tested on actual hardware: We cycled this cell through a ZBook Power G7 under simultaneous CPU and GPU load. The BMS held stable across full charge and discharge, and BIOS HP Battery Check cleared without flagging a fault after two calibration cycles.
- Post-install calibration on the ZBook Power G7: After fitting this battery, run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap on this platform.
Why the ZBook Power G7 BIOS flags a new battery as poor health
HP's BIOS reads battery health data from EEPROM registers embedded in the cell's BMS. When a new cell is installed, those registers contain factory default values that don't match the BIOS's learned baseline from the old pack. The firmware interprets that mismatch as a degraded cell and throws a health warning. Running one full discharge-to-cutoff followed by a full uninterrupted charge gives the BIOS enough data to update its baseline. After two cycles, HP Battery Check reports normal.
Fuel gauge jumping or reading 0% despite the battery being charged
The ZBook Power G7 uses a fuel gauge IC that estimates state-of-charge by tracking voltage curves from the old cell. A new cell has different internal resistance and a slightly different voltage profile, so the gauge reads erratically for the first few charge cycles. This is a calibration gap, not a faulty battery. Put the ZBook through two to three full discharge-and-charge cycles without interruption. By cycle three, the fuel gauge IC recalibrates against the new cell's actual curve and readings stabilise — expect the resting voltage to sit near 12.4V at full charge.
