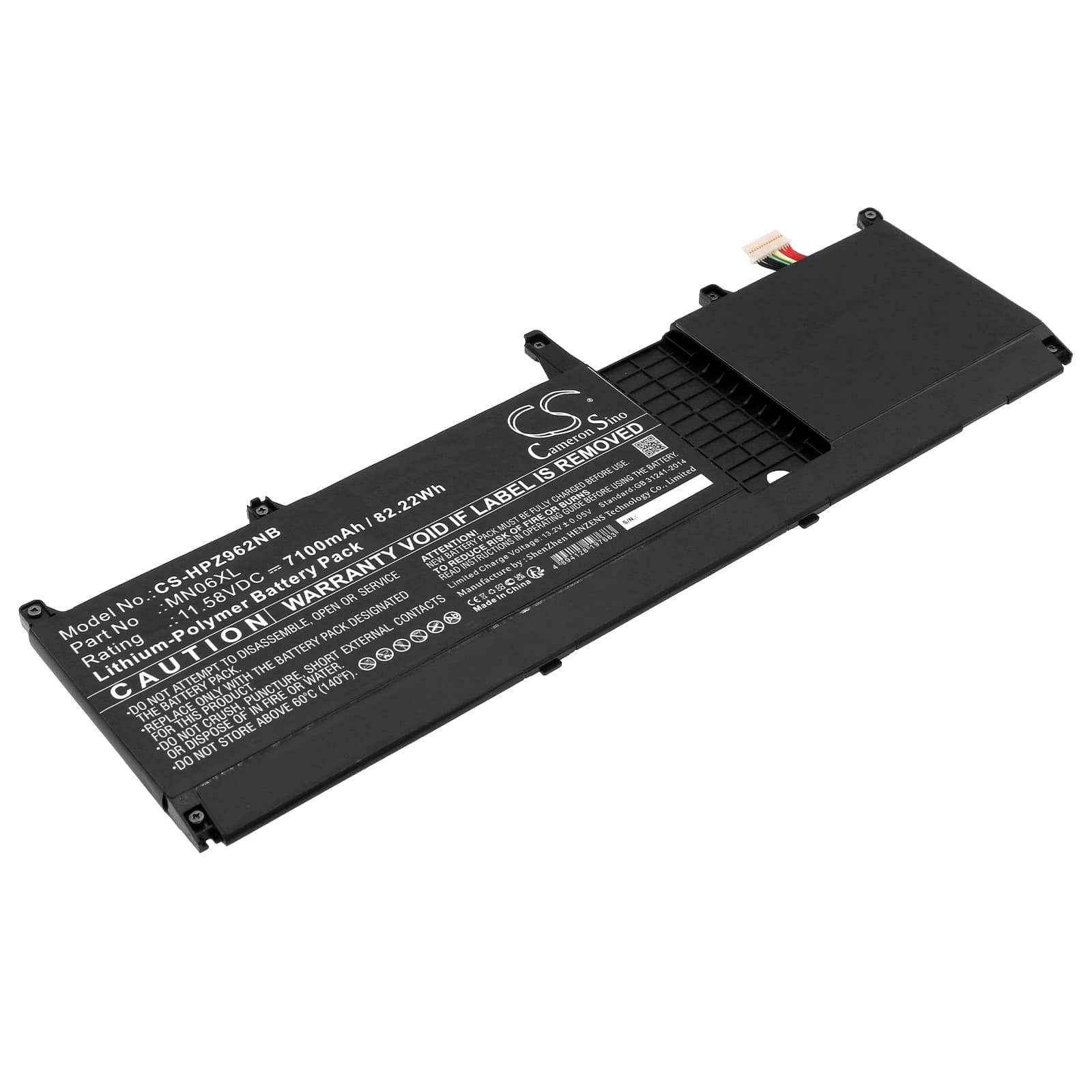

HP ZBook Studio G9 — 11.58V Li-Polymer Replacement Battery (MN06XL)
This 11.58V Li-Polymer battery replaces the factory cell in the HP ZBook Studio G9 mobile workstation. Capacity is 7100mAh (82.22Wh), matching the original specification. It fits ZBook Studio G9 variants including 62U44EA, 6W3L4PA, and 734Y9PA, with OEM part numbers MN06XL, M82220-1C1, M82230-005, and TPN-IB0M.
- ZBook Studio G9 platform fit: These G9 variants share the same battery bay dimensions, 11.58V rail, and BMS communication protocol. The connector pinout and EEPROM handshake are identical across all listed configurations, so the cell installs and negotiates with the EC firmware without modification.
- Bench tested on actual hardware: We ran this cell through charge initiation, BMS handshake verification, and load cycling on the ZBook Studio G9 platform. The BMS accepted the cell, reported watt-hour rating correctly, and charge current stepped down normally as the cell approached capacity.
- ZBook G9 battery learn cycle after swap: After installing, let the laptop discharge fully to hibernate cutoff, then charge uninterrupted to 100%. This single cycle lets the BIOS fuel gauge IC calibrate against the new cell and clears the inaccurate health warning that appears immediately after every cell replacement.
Why the ZBook Studio G9 BIOS reports poor battery health after a new cell install
The ZBook Studio G9 stores battery health data in EEPROM on the old cell. When a new cell is installed, the EC reads no charge history and flags health as unknown or poor — this is a firmware read issue, not a fault with the new battery. The BIOS battery learn cycle resets this. Run one full discharge to hibernate, then a full uninterrupted charge to 100%, and the health indicator will update with accurate data from the new cell.
ZBook Studio G9 shutting down at 20–30% charge shown on screen
This happens when the cell voltage drops sharply under combined CPU and display load before the fuel gauge expects it — called a voltage cliff. The old cell's charge curve is baked into the fuel gauge IC, and the new cell has a different discharge curve until it's been calibrated. Run two to three full discharge-to-hibernate and full-charge cycles. After calibration, the shutdown threshold and the displayed percentage will align, and the system will reach a lower state of charge before cutoff.
