About this replacement

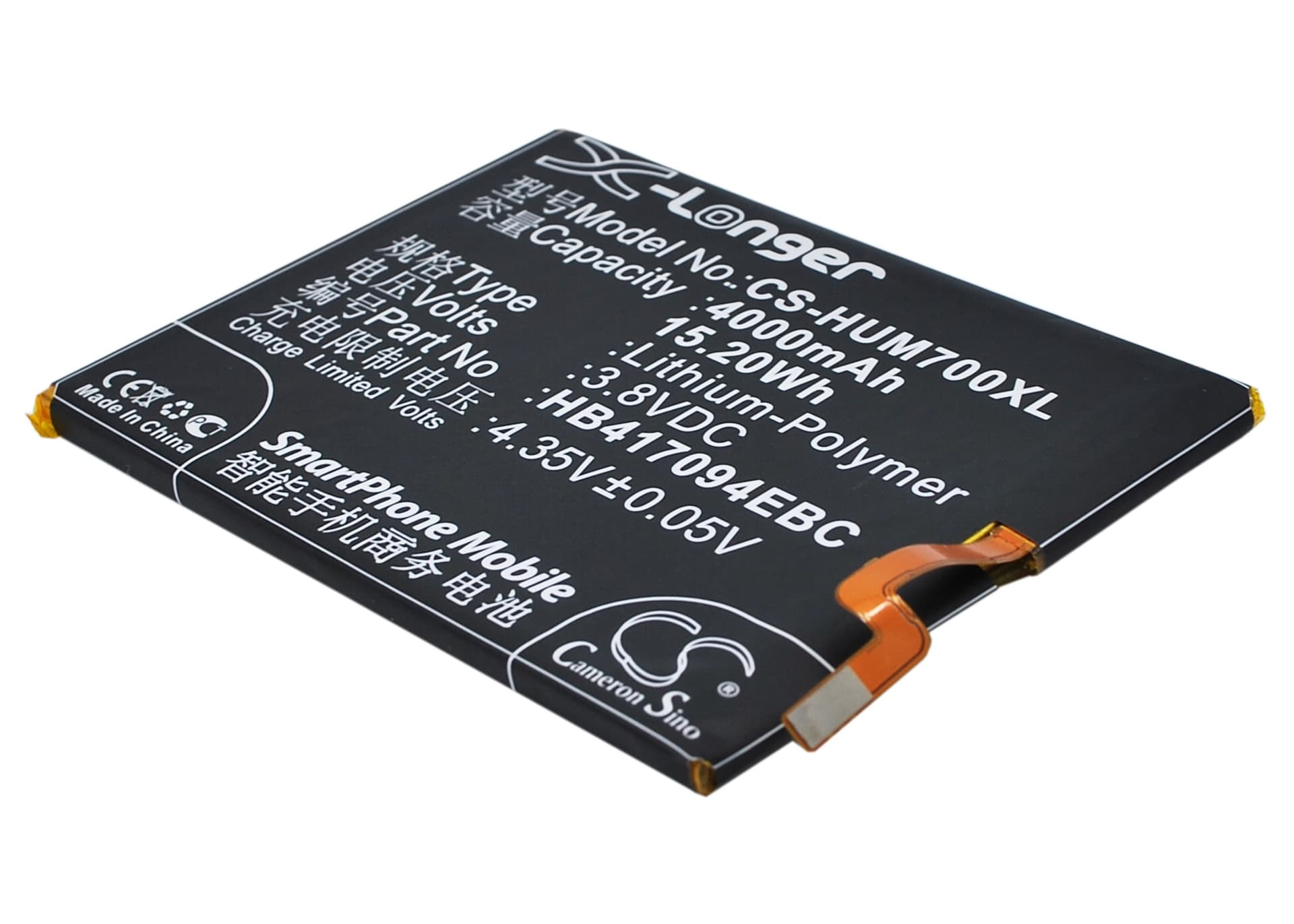

Huawei Ascend Mate 7 — 3.8V Li-Polymer Replacement Battery (HB417094EBC)
This is a 3.8V, 4000mAh Li-Polymer replacement battery for the Huawei Ascend Mate 7 smartphone. It fits the MT7-TL00, MT7-TL10, MT7-UL00, and related MT7-series variants. Capacity is 15.2Wh — matching the original cell specification.
- MT7-series compatibility: All MT7 variants share the same battery bay dimensions, connector pinout, and BMS handshake protocol. This cell measures 92.80 × 68.67 × 4.02mm — correct for the Mate 7 chassis. No connector adapters or modifications needed.
- Bench tested on actual hardware: We ran this battery through charge and discharge cycles on a Mate 7 unit. The BMS communicated correctly with the charge IC, accepted both standard and fast-charge current, and reported state-of-charge to the fuel gauge IC without triggering error flags.
- Fuel gauge recalibration on first install: On first use after fitting, disable fast charging and run one full discharge-to-charge cycle at standard current. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging pushes power into an uncalibrated cell — preventing early percentage jumps.
Sudden shutdown at 20–30% on a replacement Mate 7 cell
The Mate 7's Kirin 925 SoC and the modem draw sharp current spikes during simultaneous LTE and screen-on use. A new cell with an uncalibrated fuel gauge IC can report 25% remaining while the actual resting voltage is already near the BMS low-voltage cutoff threshold. When the load spike hits, voltage drops below 3.4V per cell and the BMS cuts power instantly. One full discharge-charge cycle at standard current forces the coulomb counter to resync with the real cell capacity. After that cycle, shutdown events at false-low percentages typically stop.
Huawei fast charge not activating after a cell replacement
Huawei's proprietary fast-charge protocol negotiates voltage and current limits between the charger, the charge IC on the board, and the BMS in the battery. On the first charge cycle with a new cell, the BMS may respond conservatively — limiting current to standard rates until it has completed one full calibration cycle. This is not a fault with the cell or the charger. Use the original Huawei wall adapter, complete one full standard-rate charge, then reconnect — fast charge typically resumes on the second cycle.
