About this replacement

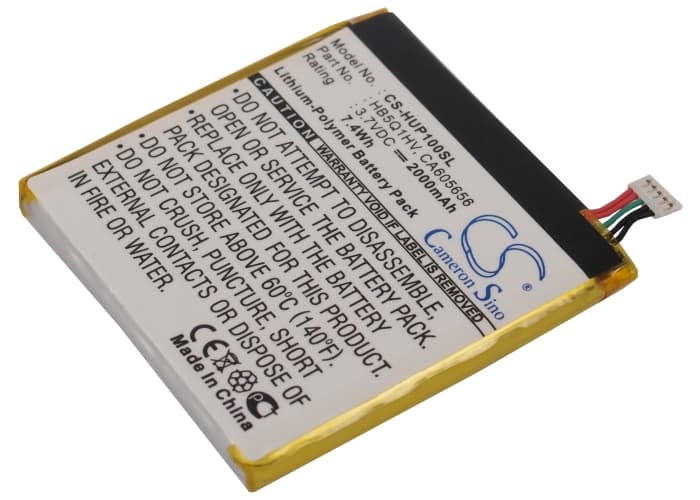

Huawei Ascend P1 XL / U9200E — 3.7V Li-Polymer Replacement Battery (HB5Q1HV)
This is a 3.7V, 2000mAh Li-Polymer replacement cell for the Huawei Ascend P1 XL and its variants. It fits the U9200E, Ascend D1 Quad XL, and T9510E, among others. OEM part numbers HB5Q1HV and CA605656 both cross-reference to this cell.
- Ascend P1 XL / D1 Quad XL family: These models share the same 3.7V single-cell Li-Polymer architecture and battery bay dimensions (56.42 × 56.17 × 5.81mm). The connector pinout and BMS communication protocol are consistent across U9200E and T9510E variants, so one cell covers the range.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on an Ascend P1 XL unit. The BMS accepted the cell without error flags, and the fuel gauge IC began tracking state-of-charge within the first cycle. Charge termination occurred correctly at 4.2V.
- First-cycle fuel gauge reset: On first use after installation, disable fast charging and run one complete discharge down to auto-shutoff, then charge to 100% uninterrupted. This gives the fuel gauge IC one clean reference cycle against the new cell's discharge curve before high-current charging is applied to an uncalibrated cell.
Sudden shutdown at 20–30% on the Ascend P1 XL after a cell swap
This is a voltage cliff issue, not a capacity fault. The Ascend P1 XL's modem and display draw sharp current spikes that cause a new, uncalibrated cell to sag below the BMS cutoff threshold — even when the fuel gauge still reads 20–30%. The phone interprets the voltage drop as a dead cell and shuts down. Running one full discharge-charge cycle recalibrates the coulomb counter so the reported percentage aligns with the actual cell voltage curve. After calibration, shutdowns at partial charge typically stop.
Phone not powering on after the replacement battery sat in storage
Li-Polymer cells self-discharge in storage. If this cell dropped below approximately 2.5V, the BMS enters lockout to prevent damage — and the phone will not respond to a normal power button press or charging cable. Connect the phone to a wall charger rated at least 5V/1A and leave it for 20–30 minutes without pressing anything. The charge IC trickle-charges the cell back above the BMS re-enable threshold, typically around 2.9–3.0V, at which point the BMS unlocks and normal charging resumes.
