About this replacement

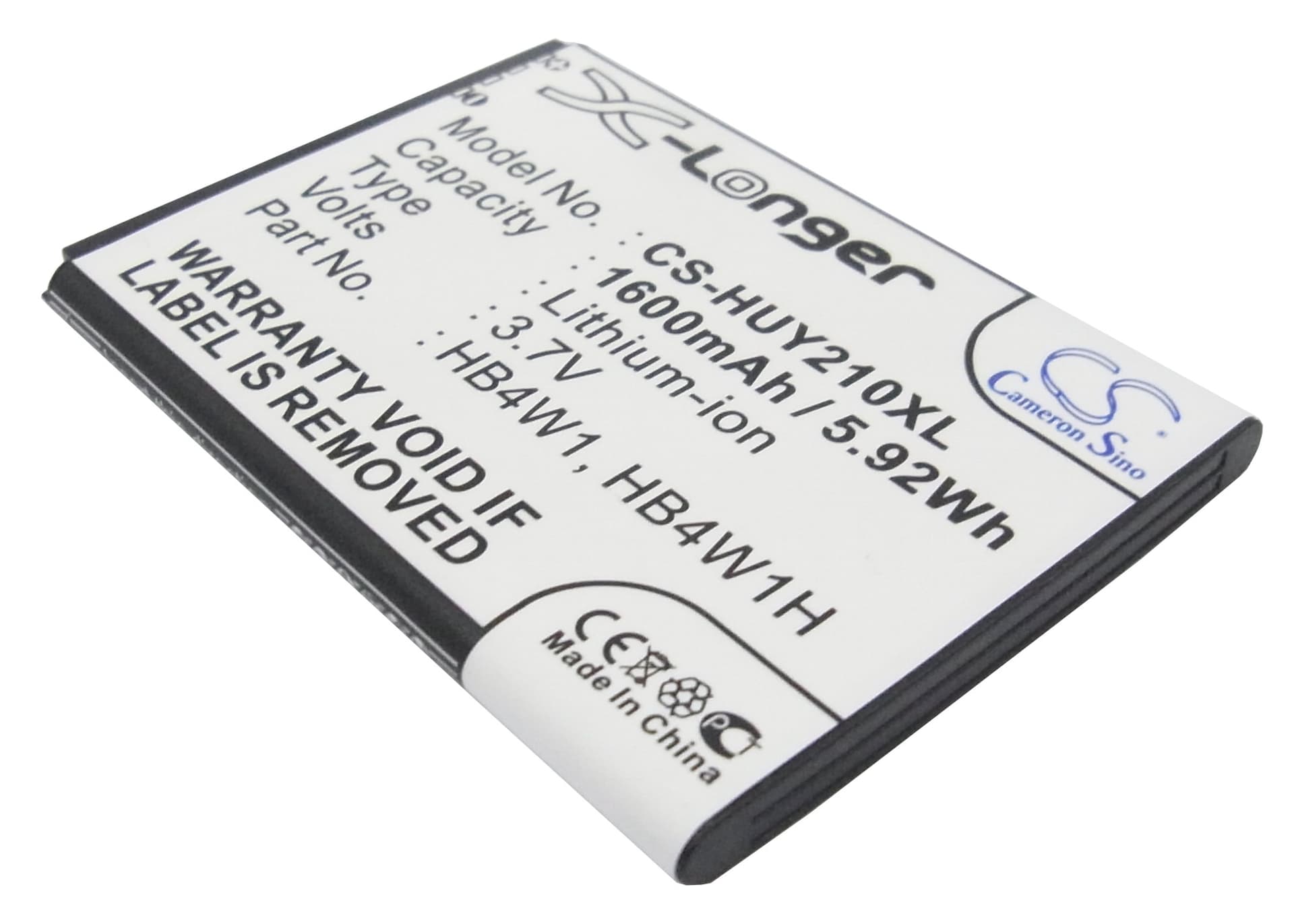

Huawei Ascend Y210 Series — 3.7V Li-ion Replacement Battery (HB4W1)
This 3.7V, 1600mAh Li-ion cell replaces the OEM HB4W1 and HB4W1H batteries in the Huawei Ascend Y210, Y210C, Y210-0151, and U8685D, along with 52 additional compatible models. It restores power to devices where the original cell no longer holds a usable charge. Dimensions are 65.25 × 47.78 × 4.75mm — confirm your tray clearance before installing.
- Ascend Y210 platform fit: The Y210, Y210C, Y210-0151, and U8685D share the same battery bay geometry and connector pinout, all referencing the HB4W1 part number. No adapter or pin modification is needed across this group.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a Y210 unit. The BMS accepted the charge IC handshake correctly, held charge cutoff at 4.2V, and triggered low-voltage protection at 3.0V without false trips.
- Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one complete discharge-to-charge cycle. This lets the fuel gauge IC map the new cell's discharge curve before it reports accurate percentages to the OS.
Sudden shutdown at 20–30% on the Ascend Y210 after a cell swap
This is a voltage cliff issue, not a capacity problem. When the modem fires a high-power transmission burst or the screen peaks at full brightness, it pulls current that a freshly installed, uncalibrated cell cannot sustain at that state of charge. Voltage drops sharply below the shutdown threshold — typically 3.2–3.4V under load — and the phone cuts out even though the fuel gauge still reads 20–30%. One full discharge-charge cycle lets the coulomb counter recalibrate against the actual cell curve, and the shutdowns stop.
Phone won't power on after the replacement battery sat in storage
Li-ion cells self-discharge during storage, and if the HB4W1 cell drops below approximately 2.5V, the BMS enters deep-discharge lockout to prevent cell damage. A standard charger will not wake it — the phone appears completely dead. Connect the device to a low-current USB source such as a PC port rather than a wall adapter, and leave it for 15–30 minutes. Once the BMS detects enough voltage to release the lockout, the charge IC takes over and normal charging resumes from there.
