About this replacement

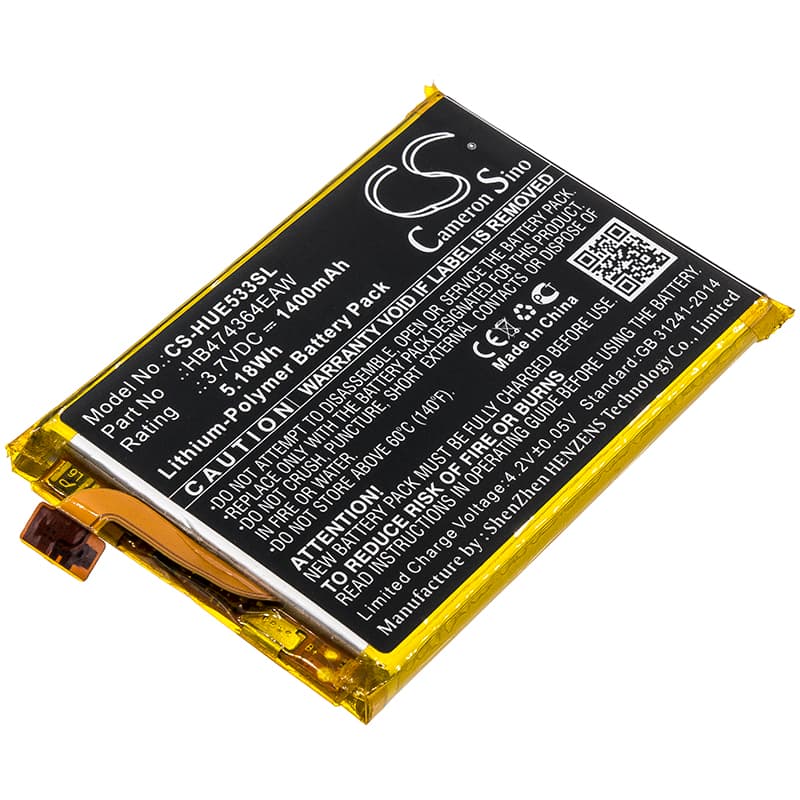

Huawei E5338 / E5338-BK — 3.7V Li-Polymer Replacement Battery (HB474364EAW)
This is a 3.7V, 1400mAh Li-Polymer battery built to replace the original HB474364EAW cell in the Huawei E5338 and E5338-BK mobile hotspot. When the original cell degrades, the hotspot loses the ability to hold a session charge across the day. Swapping this unit restores full operating voltage to both the modem and WiFi radio subsystems.
- E5338 and E5338-BK compatibility: Both variants share the same 3.7V battery bay, connector pinout, and BMS handshake protocol — the hardware difference between models is cosmetic only. This cell fits either unit without modification.
- Bench tested on actual hardware: We ran this battery through full charge and discharge cycles on an E5338 unit with five simultaneous connected devices. The BMS held the cutoff threshold correctly and the hotspot maintained session continuity through each cycle without spurious shutdowns.
- Ventilation during extended sessions: When connected devices are far from the hotspot, the cellular radio pushes to maximum output power. Keep the E5338 on an open surface — not in a bag or enclosed case — during long sessions. Heat trapped around the battery accelerates cell wear faster than discharge cycling alone.
Mobile hotspot disconnecting users mid-session on a new battery
The E5338 combines a cellular modem and a multi-device WiFi radio on a single 3.7V cell. When all connection slots are active and the cellular signal is weak, both subsystems draw simultaneously at peak current. A worn or counterfeit cell with elevated internal resistance sags below the modem's minimum operating voltage under that combined load, triggering a momentary cutoff that drops all sessions. A cell at full rated capacity and low internal resistance — confirmed at 1400mAh — handles the combined draw without the voltage dip that causes the dropout.
E5338 won't power on after sitting unused for several weeks
Li-Polymer cells self-discharge during storage at roughly 2–5% per month. If the E5338 sat unused long enough, the cell voltage may have dropped below the 3.0V minimum boot threshold the device requires to initialise. The BMS will lock the cell out of the discharge circuit as a protection measure, and the hotspot appears completely dead. Connect the device to a USB charger for at least 30 minutes before attempting to power it on — this allows the charger to trickle-feed the cell back above the 3.0V recovery threshold before the BMS re-engages normal charge mode.
