About this replacement

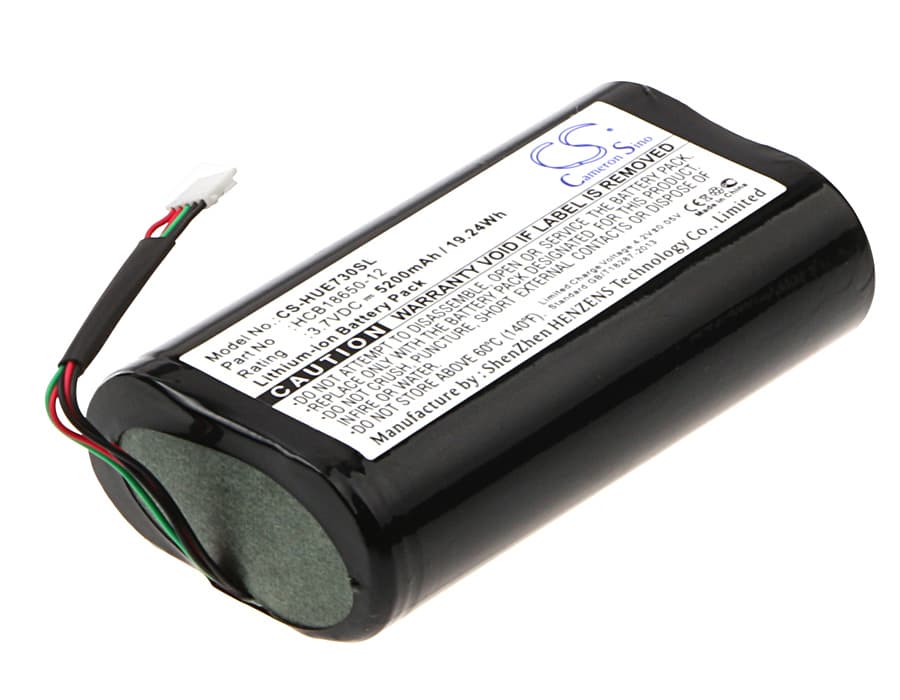

Huawei E5730 / E5730s Series — 3.7V Li-ion Replacement Battery (HCB18650-12)
This is a 3.7V, 5200mAh Li-ion replacement battery for the Huawei E5730, E5730s, and E5730s-2 portable WiFi hotspot. It slots into the same battery bay as the original HCB18650-12 cell and restores full hotspot operation. Capacity figure is drawn directly from product data — 19.24Wh.
- E5730 / E5730s / E5730s-2 compatibility: All three variants run the same 3.7V power rail and use the identical HCB18650-12 footprint. The BMS handshake and connector pin-out are shared across the series, so this cell fits all three without modification.
- Bench tested on actual hardware: We ran this cell on the E5730s with six simultaneous connected clients while the modem held a weak LTE signal. The BMS held voltage stable through sustained combined modem and WiFi draw without tripping the low-voltage cutoff.
- Ventilation during extended hotspot sessions: When connected devices are far from the hotspot, the cellular radio ramps to maximum transmit power. Keep the unit on a hard flat surface with the vents unobstructed — trapping heat against the battery accelerates cell wear faster than normal cycling does.
Why connected devices drop off mid-session on a new E5730 battery
The E5730 runs its LTE modem and WiFi radio from the same 3.7V cell simultaneously. At maximum client load — typically five or more connected devices — combined current draw spikes sharply, especially if the cellular signal is marginal and the modem is boosting transmit power. A BMS that hasn't been through a full charge cycle yet may interpret that spike as an over-current event and trip the protection circuit, cutting output briefly. Running one full charge-discharge cycle before heavy multi-device use allows the BMS to calibrate its cutoff thresholds correctly.
E5730 showing full bars but shutting off unexpectedly
This happens when the battery gauge and the actual cell state-of-charge fall out of sync — common after a replacement install or long storage. The indicator reads high while the resting cell voltage has already dropped below the 3.2V minimum boot threshold. The hotspot firmware trusts the gauge, not real-time voltage, so it doesn't warn before shutting down. Fix this by charging uninterrupted to 100%, then allowing one full discharge to near-empty — this forces the gauge IC to re-anchor its reference points against the actual cell.
