About this replacement

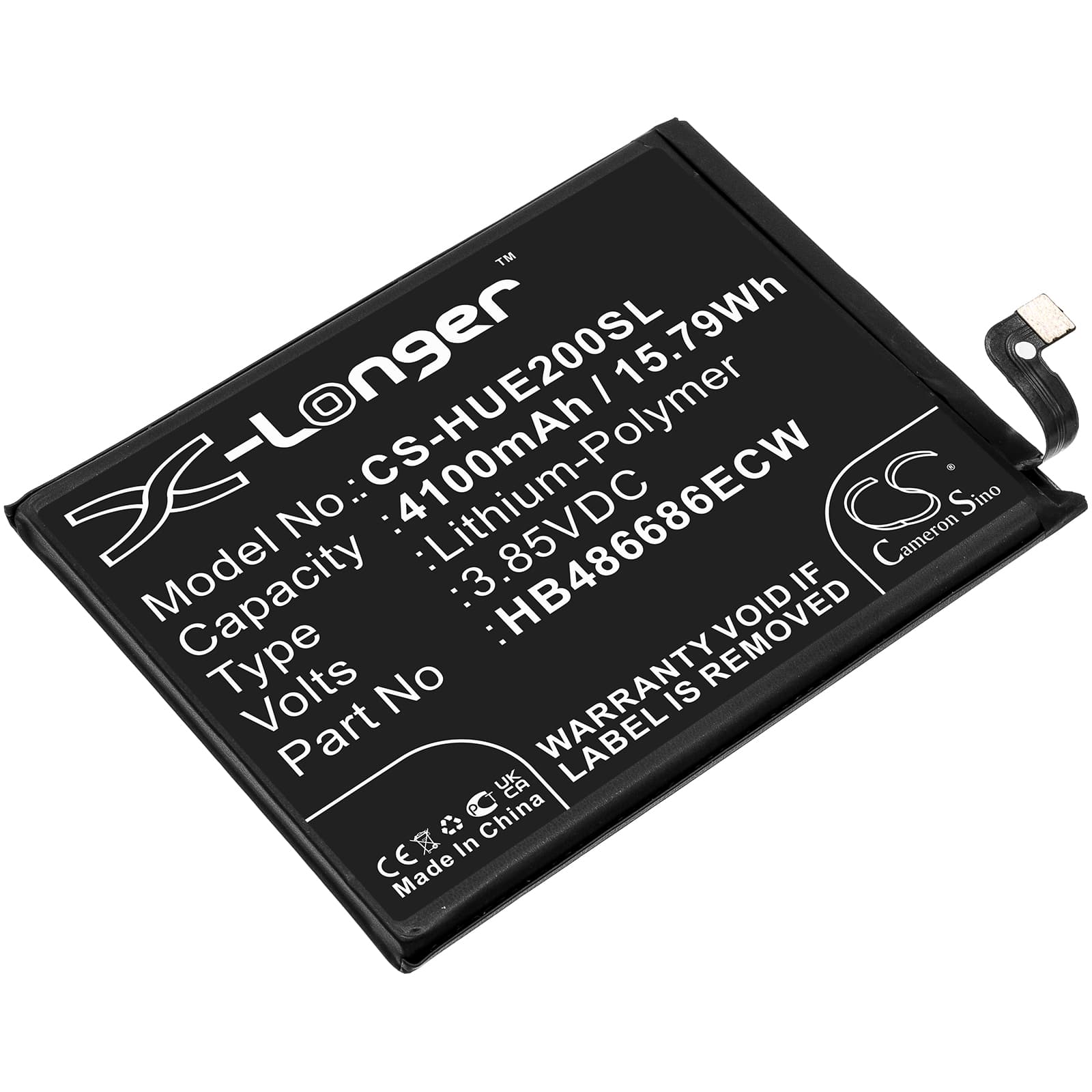

Huawei Enjoy 20 Plus — 3.85V Li-Polymer Replacement Battery (HB486686ECW)
This 3.85V, 4100mAh Li-Polymer cell replaces the original HB486686ECW battery in the Huawei Enjoy 20 Plus and Enjoy 20 Plus 5G Standard Edition (FRL-AN00a / Changxiang 20 Plus). It matches the original cell's dimensions at 83.90 × 63.26 × 4.20mm and connects via the factory flex connector. Capacity matches the stock specification at 15.79Wh.
- Enjoy 20 Plus and 5G Standard Edition fit: Both variants — FRL-AN00a and the Changxiang 20 Plus — use the same battery bay dimensions, connector pinout, and BMS handshake. One cell covers the full model range listed above.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the Enjoy 20 Plus platform. The BMS accepted the cell without a protection-circuit lockout, and the charge IC completed a full CC/CV cycle to 4.35V termination voltage.
- Fuel gauge recalibration on first installation: On first use after fitting, disable fast charging and run one complete discharge-to-charge cycle at standard rate. This lets the fuel gauge IC map the new cell's discharge curve before the coulomb counter commits to its reference baseline.
Sudden shutdown at 20–30% on the Enjoy 20 Plus after a cell swap
A new Li-Polymer cell has a slightly different voltage-versus-capacity curve than the degraded cell it replaces. The fuel gauge IC still holds calibration data from the old cell, so when the new cell hits a voltage the IC doesn't expect at that state of charge, the system treats it as a critical low-battery event and cuts power. This isn't a fault with the replacement cell — it's the coulomb counter working off the wrong reference curve. Run two full discharge-to-charge cycles at standard charge rate to allow the IC to relearn the curve. After recalibration, shutdowns below 20% should stop.
USB fast charging not activating on the first cycle after fitting
Huawei's proprietary fast charge protocol (FCP) involves a handshake between the charge IC and the battery's BMS before elevated current is permitted. On the very first cycle with a new cell, the BMS may hold the charge IC in standard 5V/1A mode until it confirms cell impedance is within expected parameters. Plug in using the original Huawei charger and cable — third-party USB-PD adapters can stall this handshake entirely. If fast charging still doesn't activate after one full standard-rate cycle, check that the charger output shows 9V or above in the phone's battery settings under charging status.
