About this replacement

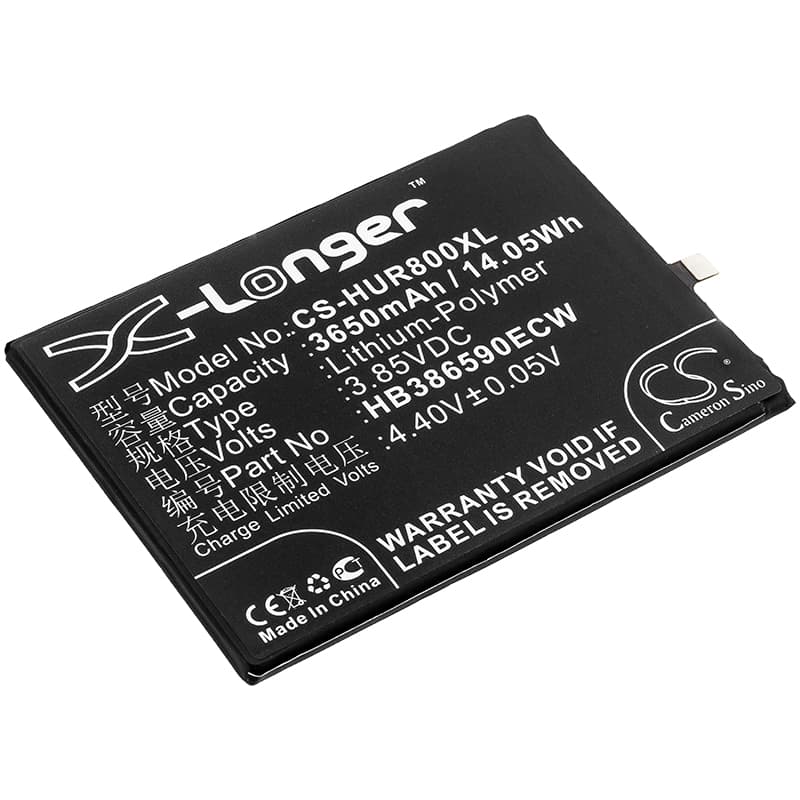

Huawei Honor 8X — 3.85V Li-Polymer Replacement Battery (HB386590ECW)
This 3.85V, 3650mAh Li-Polymer cell replaces the HB386590ECW battery in the Huawei Honor 8X and Honor 8X Dual SIM, including variants JSN-LX3 and JSN-L23. It restores power capacity to a phone that can no longer hold a meaningful charge through a full day of calls, messaging, and app use. Dimensions are 88.02 × 63.92 × 4.30mm — verify your existing cell matches before fitting.
- Honor 8X variant coverage: The JSN-LX3, JSN-L23, and Dual SIM models all run the same power rail and connector layout, so all share the HB386590ECW footprint. The BMS handshake protocol is identical across these variants — no firmware differences affect cell recognition.
- Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on an Honor 8X unit. The BMS accepted the cell without error flags, and the charge IC completed a full CC/CV cycle without cutoff interruptions.
- Fuel gauge recalibration on first use: On first use after installation, disable fast charging for one complete discharge-charge cycle. This lets the fuel gauge IC recalibrate against the new cell's discharge curve before high-current charging pushes current into an uncalibrated cell.
Why the Honor 8X shuts down suddenly at 20–30% after a cell swap
The Honor 8X fuel gauge IC builds its state-of-charge model from the previous cell's discharge curve. When a new cell goes in, the IC still references the old curve — and the new cell's voltage profile doesn't match it. Under modem or display load, actual cell voltage drops faster than the IC predicts, crossing the hardware shutdown threshold while the screen still shows 25%. One full uninterrupted discharge-charge cycle forces the coulomb counter to resync against the real cell behaviour. After that cycle, the sudden shutdowns stop.
Huawei fast charge not activating on the replacement cell's first cycle
Huawei's proprietary fast charge protocol requires the charge IC to confirm BMS readiness before ramping current above standard 5V/1A. On the first cycle after a cell swap, the BMS may respond with a conservative handshake while it assesses the new cell's internal resistance — the charge IC interprets this as a non-fast-charge cell and stays at base rate. This is normal behaviour, not a fault. Complete the first slow cycle fully — discharge to auto-off, then charge uninterrupted to 100% — and fast charge will activate from the second cycle onward.
