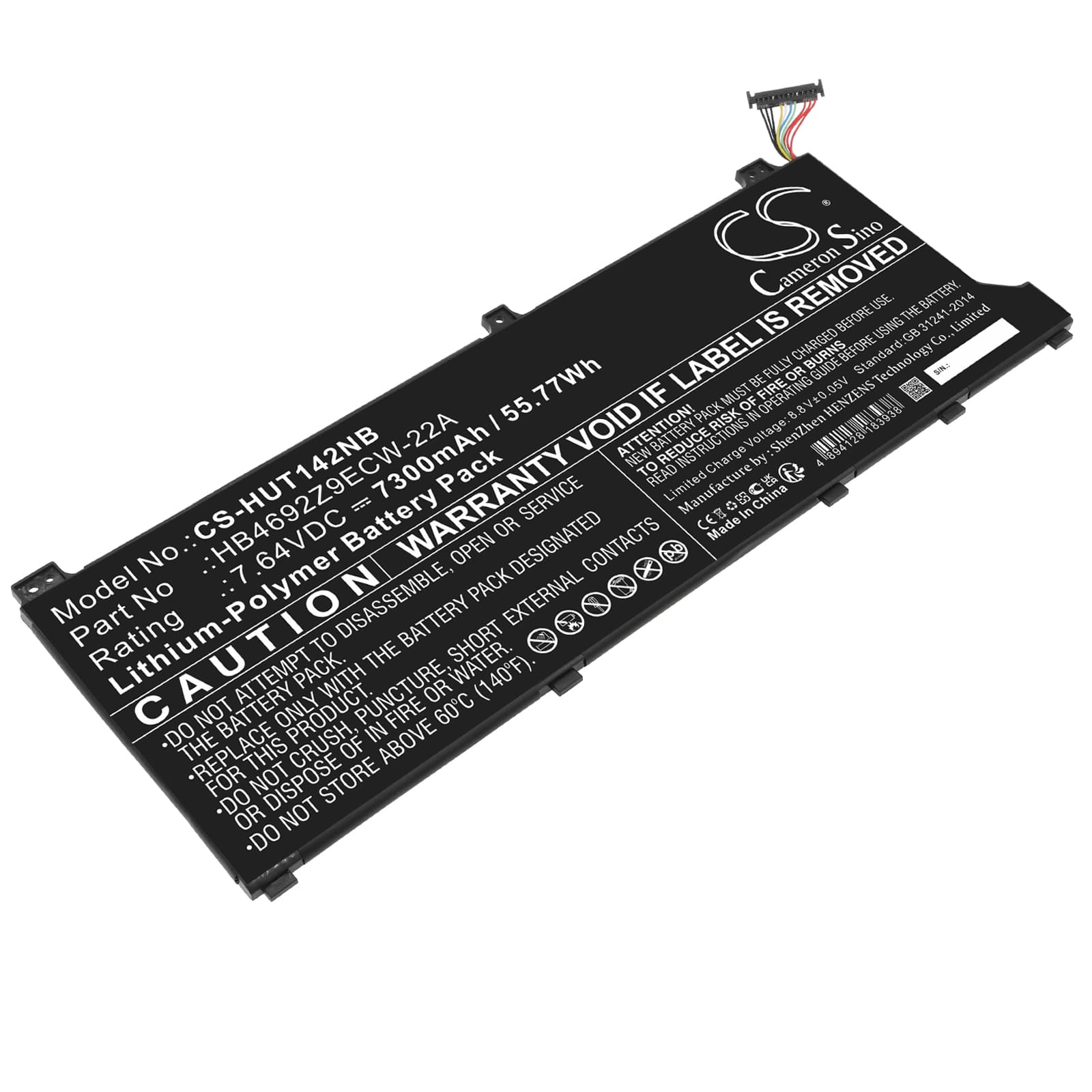

Huawei MateBook D 15 Ryzen 5 5500U — 7.64V Li-Polymer Replacement Battery (HB4692Z9ECW-22A)
This is a 7.64V, 7300mAh (55.77Wh) Li-Polymer replacement battery for the Huawei MateBook D 15 Ryzen 5 5500U and MagicBook 14 2020. It replaces OEM part number HB4692Z9ECW-22A. Dimensions are 269.10 × 100.60 × 4.80mm — confirm these against your existing cell before ordering.
- MateBook D 15 and MagicBook 14 2020 fitment: Both models share the same 7.64V battery rail, connector pinout, and BMS handshake protocol, which is why a single cell covers both. The BMS on these units reads EEPROM data from the cell on first boot, so the physical fit and electrical spec must match exactly.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on MateBook D 15 hardware. The BMS completed its handshake without fault codes, charge acceptance hit the rated capacity, and thermal sensors reported within expected range throughout.
- Post-install learn cycle: After fitting, run one full discharge to hibernate cutoff, then charge uninterrupted to 100%. This forces the BIOS battery learn cycle to reset against the new cell's actual chemistry, clearing the inaccurate health warning that appears after every cell swap on these notebooks.
BIOS reporting poor battery health immediately after replacement
The MateBook D 15 BIOS reads cycle count and health data stored in the outgoing cell's EEPROM. When a new cell goes in, that stored data is gone and the BIOS flags the battery as unknown or degraded — this is expected behaviour, not a fault with the replacement. The fuel gauge IC also needs two to three full charge-discharge cycles before its state-of-charge model aligns with the new cell. Run the learn cycle described above and the health warning will clear within the first few sessions. After three calibration cycles, the OS percentage readout will stabilise.
Laptop shuts down at 20–30% shown after battery swap
This is a voltage cliff issue. Under full CPU plus display load, the cell voltage drops faster than the fuel gauge expects — the BMS trips a low-voltage cutoff while the OS still shows charge remaining. It happens most often when the fuel gauge IC has not yet calibrated against the new cell's discharge curve. Run two or three full cycles from 100% down to hibernate cutoff without interrupting the discharge. After calibration, the cutoff will track actual cell voltage correctly and the early shutdown stops. If it persists past three cycles, check that the BIOS charge threshold setting is not capping the cell below 95%.
