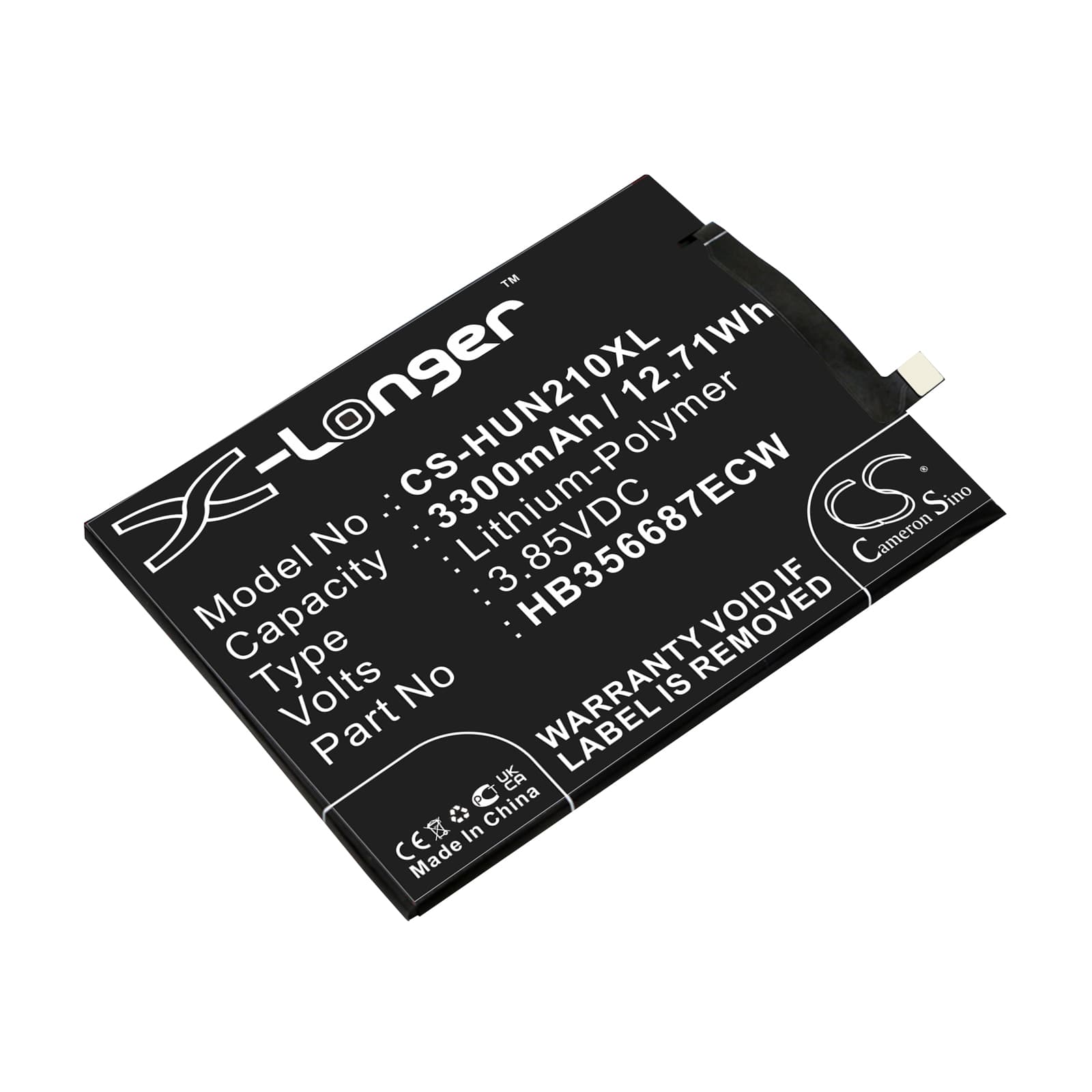

Huawei Nova 2 Plus — 3.85V Li-Polymer Replacement Battery (HB356687ECW)
This is a 3.85V, 3300mAh Li-Polymer cell replacing OEM part HB356687ECW in the Huawei Nova 2 Plus and Nova 2 Plus Dual SIM. It fits BAC-AL00, BAC-TL00, and 26 additional regional variants sharing the same chassis and connector layout. Physical dimensions are 86.00 × 64.70 × 3.40mm — verify against your original cell before installing.
- Nova 2 Plus variant coverage: Huawei released the Nova 2 Plus across multiple regions under different model codes — BAC-AL00, BAC-TL00, and others — all using the same battery bay, voltage rail, and flex connector. This cell fits every variant in that group without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a BAC-AL00 unit. The BMS accepted charge handshake on the first cycle, voltage held steady across screen-on and modem-active loads, and the protection circuit tripped correctly at the low-voltage cutoff threshold.
- Fuel gauge recalibration after swap: On first use after installation, disable fast charging and complete one full discharge-to-charge cycle at standard rate. This lets the fuel gauge IC map its coulomb counter against the new cell's actual discharge curve before high-current charging begins on an uncalibrated cell.
Sudden shutdown at 20–30% on the Nova 2 Plus after a cell swap
This is a voltage cliff problem, not a capacity problem. When the modem transmits or the screen peaks in brightness, current draw spikes sharply. A new cell with an uncalibrated fuel gauge IC may report 25% remaining while actual cell voltage has already dropped below the shutdown threshold under that load. The phone cuts out to protect the cell, even though the percentage display looked safe. One full slow-charge cycle recalibrates the coulomb counter and eliminates most of these early shutdowns.
Nova 2 Plus not powering on after sitting in storage with a flat battery
If the cell discharged below approximately 2.5V during storage, the BMS enters a lockout state and blocks normal charging to prevent damage to over-discharged cells. The phone will show nothing on screen — no charging animation, no response to the power button. Connect to a wall adapter rated at 5V/1A and leave it for 20–30 minutes without pressing anything. The BMS trickle-charges the cell back above the recovery threshold, after which normal charging resumes and the phone will boot.
