About this replacement

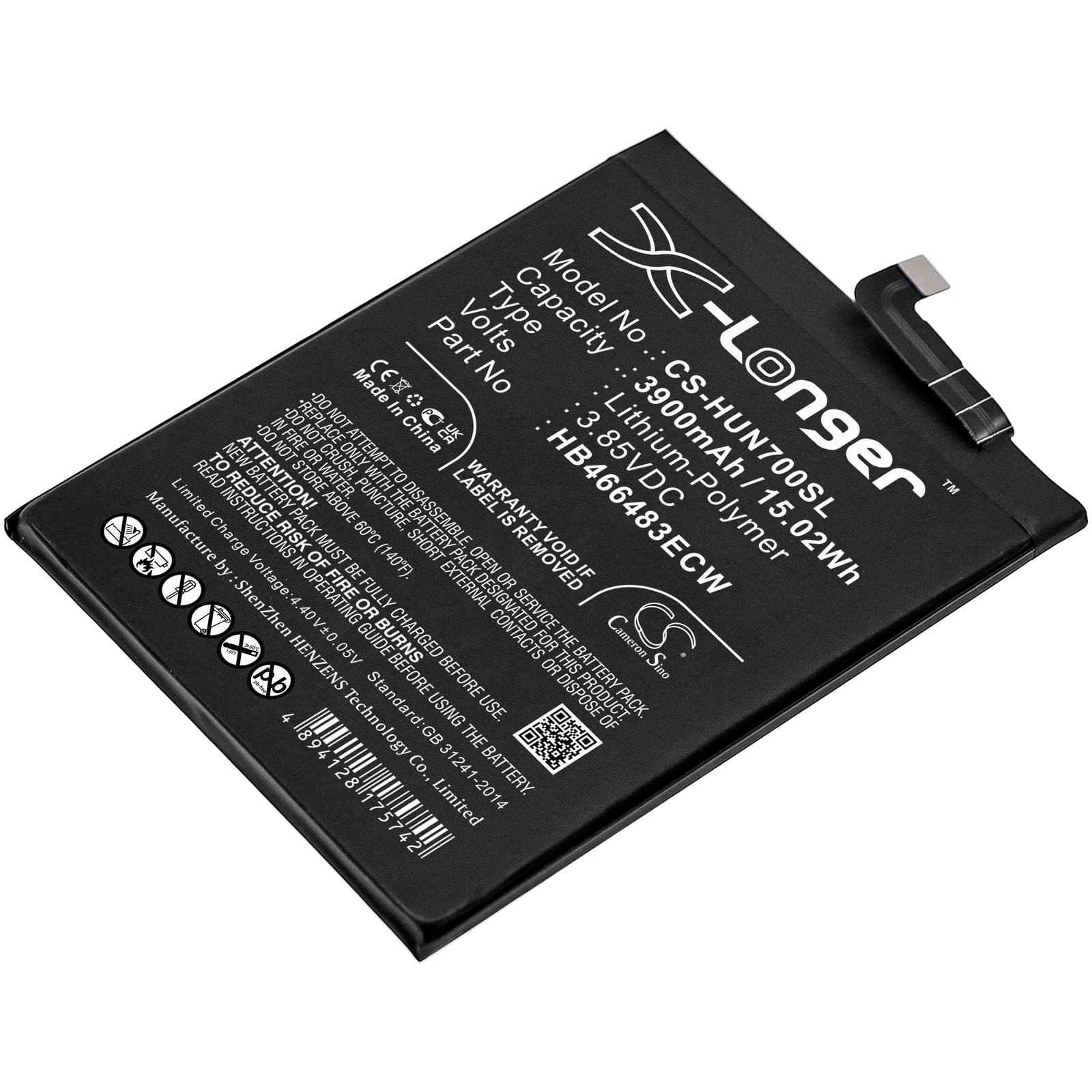

Huawei Nova 7 5G — 3.85V Li-Polymer Replacement Battery (HB466483ECW)
This is a 3900mAh (15.02Wh) Li-Polymer cell built to replace the original HB466483ECW battery in the Huawei Nova 7 5G. It fits JEF-AN00, JEF-AN20, and JEF-NX9 variants, along with three additional Nova 7 5G model numbers. Voltage is 3.85V nominal — matching the original charge IC configuration.
- Nova 7 5G variant coverage: The JEF-AN00, JEF-AN20, and JEF-NX9 boards all share the same battery connector, contact orientation, and BMS handshake protocol. One cell fits all three without modification or adapter.
- Bench tested on actual hardware: We ran this cell through a full charge and discharge cycle on a Nova 7 5G unit, monitoring the BMS handshake at each charge stage. The protection circuit engaged correctly at the low-voltage cutoff and the charge IC accepted the cell through all SuperCharge current steps without a fault flag.
- Fuel gauge recalibration after install: On first use after installation, disable fast charging and run one complete discharge-charge cycle at standard current. This lets the fuel gauge IC build a fresh discharge curve against the new cell before SuperCharge pushes high current into an uncalibrated coulomb counter.
Sudden shutdown at 20–30% on the Nova 7 5G after a cell swap
The Nova 7 5G runs a 5G modem that pulls current in sharp bursts. When the fuel gauge IC is still calibrated to the old, degraded cell curve, it reports 25% remaining while the actual cell voltage is already sagging below the load threshold. The phone shuts down not because the new cell is weak — but because the gauge data is stale. One full discharge to automatic cutoff, followed by a complete charge to 100%, resets the coulomb counter to the new cell's actual curve. After that cycle, percentage readings stabilise and the shutdowns stop.
USB-PD or SuperCharge not working on the first cycle after replacement
After a cell swap, the charge IC on the Nova 7 5G sometimes defaults to standard 5W charging on the first connection — particularly if the BMS flagged a low-voltage condition during installation. This is a protective hold, not a fault with the replacement cell. Unplug the charger, power the phone fully off, leave it off for 60 seconds, then reconnect the original Huawei SuperCharge adapter. The handshake sequence restarts and the IC should step up to the higher current tier within 30 seconds of reconnection.
