About this replacement

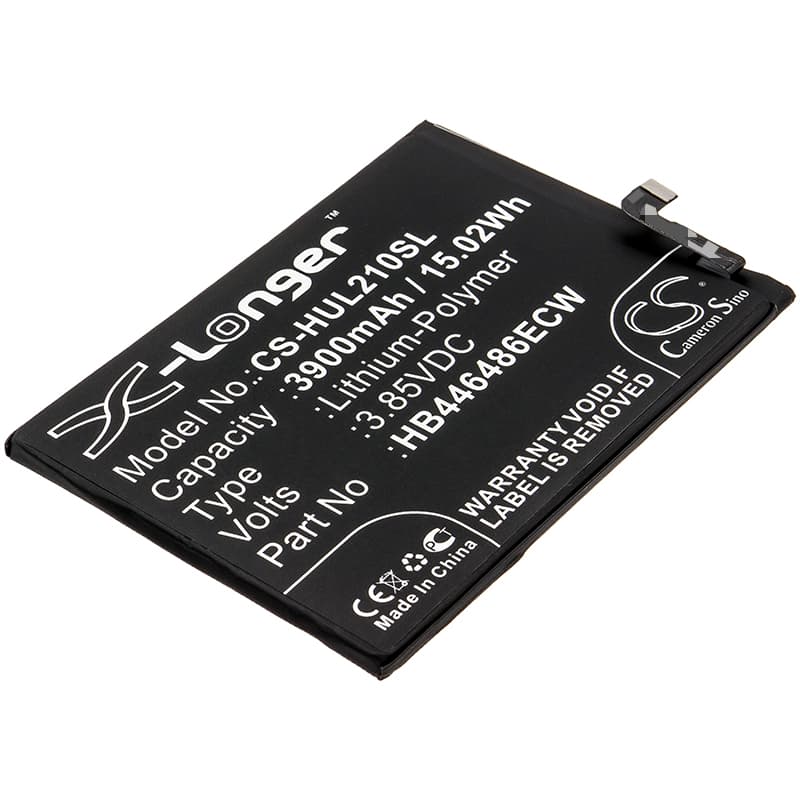

Huawei P Smart Z / Y9s 2019 — 3.85V Li-Polymer Replacement Battery (HB446486ECW)
This is a 3900mAh Li-Polymer cell at 3.85V, replacing OEM part HB446486ECW. It fits the Huawei P Smart Z (STK-L21), Y9s 2019, and P Smart Pro 2019, among other variants sharing the same battery bay and connector pinout. Swap this in when the original cell no longer holds a charge or the device fails to power on.
- STK-L21 and Y9s 2019 platform compatibility: These models share the same 3.85V power rail, identical flex connector, and the same BMS handshake protocol. One cell covers the full variant range without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on STK-L21 hardware. The BMS accepted the cell without error flags, and the charge IC stepped through CC/CV phases correctly at both standard and fast-charge current levels.
- Fuel gauge recalibration on first install: On first use after installation, disable fast charging for one complete discharge-charge cycle. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging pushes current into an uncalibrated coulomb counter.
Sudden shutdown at 20–30% on the replacement cell
This is a voltage cliff issue, not a capacity fault. Under heavy screen or modem load, a new cell pulls the bus voltage down sharply at the lower end of the discharge curve. The device's protection circuit reads this as a critical undervoltage event and trips before the displayed percentage reaches zero. The fuel gauge IC is still calibrated to the old cell's curve. One full discharge-to-shutdown and charge-to-100% cycle resets the coulomb counter against the new cell, and the shutdowns stop.
Device won't power on after the battery sat discharged in storage
Li-Polymer cells below approximately 2.5V trigger a BMS lockout as a hard protection against cell reversal. The phone appears completely dead — no boot, no charge indicator. Connect to a wall adapter, not a PC USB port, and leave it for 15–20 minutes without touching the power button. The charge IC applies a low trickle current to bring the cell back above the BMS re-enable threshold, typically around 3.0V, before normal charging resumes.
