About this replacement

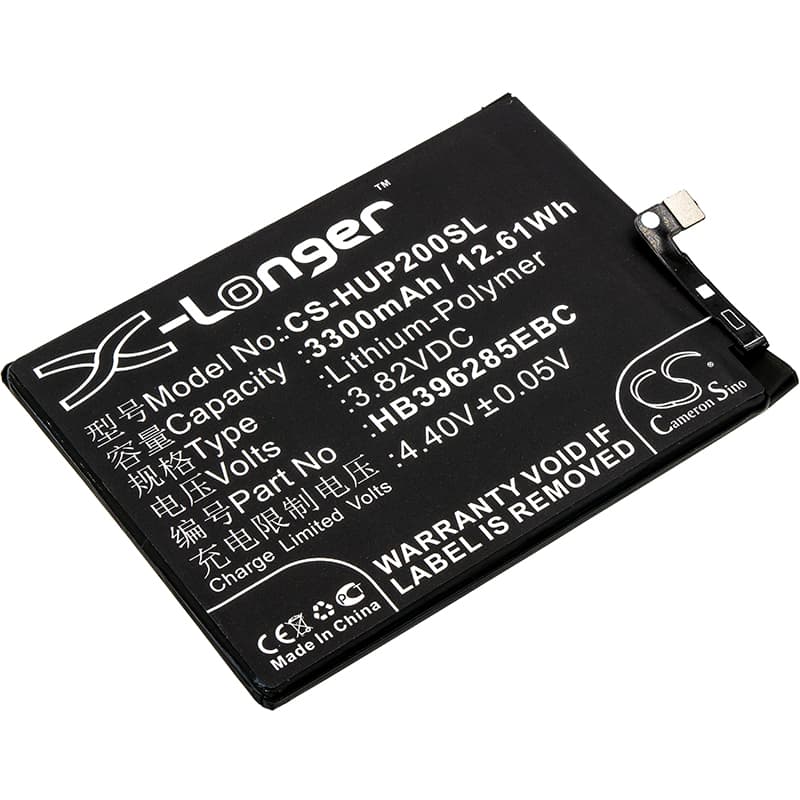

Huawei P20 — 3.82V Li-Polymer Replacement Battery (HB396285EBC)
This is a 3300mAh (12.61Wh) Li-Polymer cell at 3.82V, built to replace the original HB396285EBC in the Huawei P20, P20 Standard Edition, P20 Standard Edition Dual SIM, and over 20 regional variants. It slots into the same battery bay and connects to the same flex cable as the factory cell. Voltage and chemistry match the P20's charge IC specifications exactly.
- P20 variant compatibility: All P20 Standard Edition models — single SIM, Dual SIM, and TD-LTE regional builds — share the same battery bay dimensions and BMS handshake protocol. One cell covers the full range because Huawei used an identical voltage rail and connector across those SKUs.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a P20 unit and monitored BMS communication with the charge IC. The BMS reported cell state correctly to the OS, and charge termination triggered at the expected cutoff voltage without error flags.
- First-cycle fast-charge protocol: On first use after installation, disable fast charging for one complete discharge-charge cycle. This lets the P20's fuel gauge IC recalibrate its coulomb counter against the new cell's actual discharge curve before Huawei's SuperCharge protocol pushes high current into an uncalibrated cell.
Why the P20 reports wrong battery percentage after a cell swap
The P20 uses a coulomb-counting fuel gauge IC that builds its discharge model from the previous cell's charge history. When a new cell goes in, that learned curve no longer matches the actual cell chemistry and internal resistance. The OS then reads percentage from a calibration map that does not reflect the replacement cell's real voltage profile. One full discharge-to-shutdown followed by a slow charge resets the counter and lets the IC write a fresh baseline for the new cell.
Sudden shutdown at 20–30% on the replacement cell
This happens when the fuel gauge IC still holds a stale low-resistance model from the old degraded cell, causing it to over-report remaining capacity. Under modem or screen load, the new cell's actual terminal voltage drops below the 3.4V shutdown threshold while the OS still shows 20–30%. The phone cuts out because hardware protection trips before the software gauge catches up. Running one complete slow charge cycle forces the coulomb counter to resync and typically resolves the premature cutoff.
