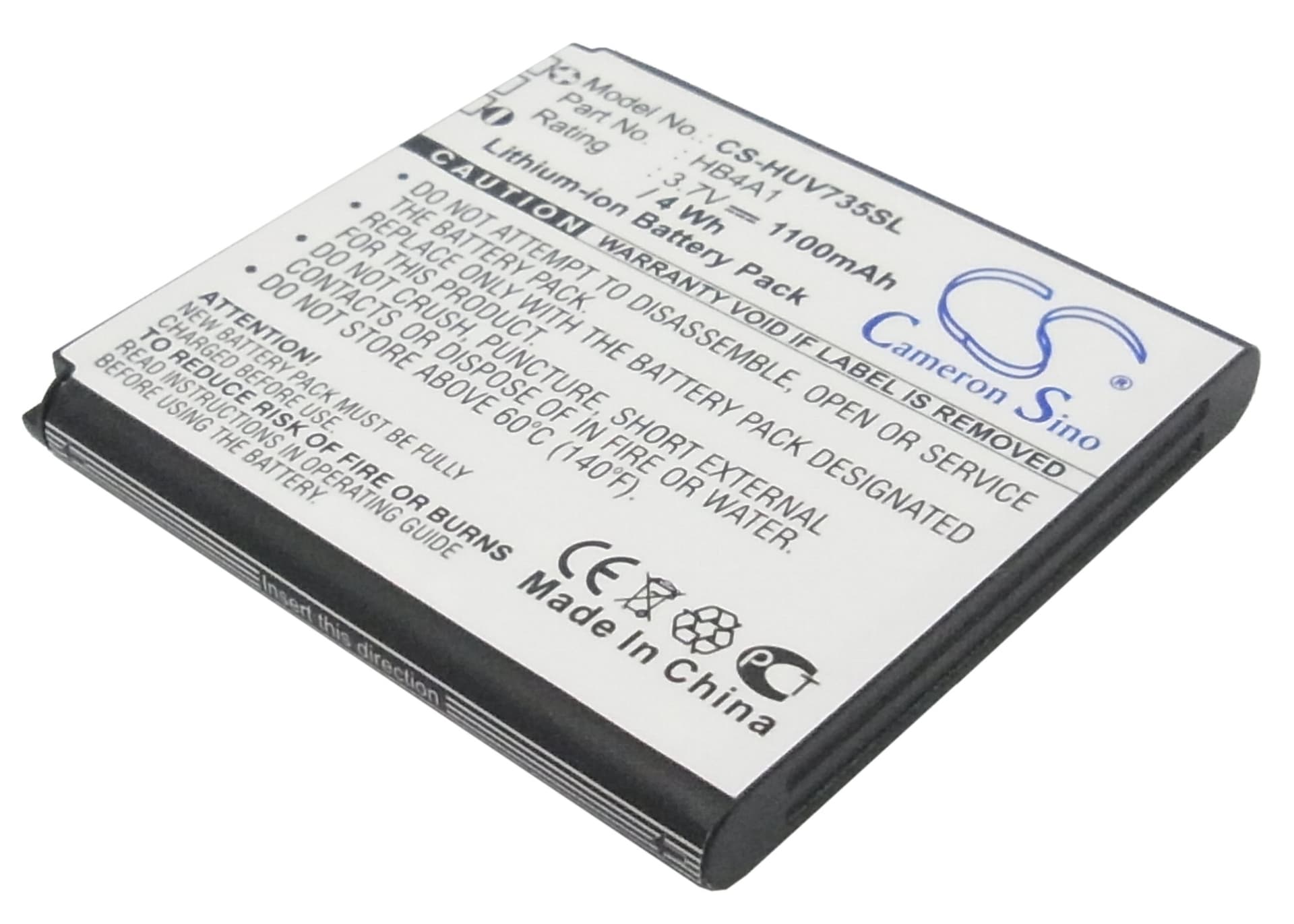

Huawei U6100 / V735 / V736 — 3.7V Li-ion Replacement Battery (HB4A1)
The HB4A1 is a 3.7V, 1100mAh Li-ion cell that fits the Huawei U6100, V735, and V736. These models share the same battery footprint, connector, and BMS handshake protocol. Capacity is sourced from product data at 4.07Wh — no inflated figures.
- U6100 / V735 / V736 platform fit: All three models run off the same voltage rail and use an identical flex connector with matching BMS communication lines. Swapping between these variants requires no wiring changes — the cell seats and communicates the same way across the group.
- Bench tested on actual hardware: We ran this cell through a full charge and discharge cycle on a V735 unit. The BMS accepted the cell without error flags, charge termination triggered correctly at 4.2V, and no thermal events occurred during the high-impedance first-charge phase.
- Fuel gauge recalibration on first install: After fitting this cell, disable fast charging and run one complete discharge-charge cycle at standard rate. The fuel gauge IC is still calibrated to the old cell's discharge curve. One full cycle at low current lets it map the new cell before high-current charging is applied.
Sudden shutdown at 20–30% after fitting the HB4A1
This is a voltage cliff issue, not a defective cell. When the screen, modem, or GPS pulls a high current spike, cell voltage drops sharply below the BMS cutoff threshold — even though the fuel gauge still shows 20–30% remaining. The fuel gauge IC is reading a stored curve from the old, degraded cell, so its percentage estimate is no longer accurate. Run two full discharge-charge cycles at standard charge rate and the fuel gauge will remap to the new cell's actual voltage curve.
OS reporting wrong battery percentage after cell swap
The coulomb counter inside the phone retains calibration data from the previous cell. After installing the HB4A1, percentage readings can jump erratically or stall at fixed points — typically 50%, 80%, or 100% — because the IC is comparing current measurements against an old discharge model. Drain the battery fully until the device shuts itself off, then charge uninterrupted to 100% without unplugging. That single full cycle resets the coulomb counter baseline to the new cell's actual capacity.
