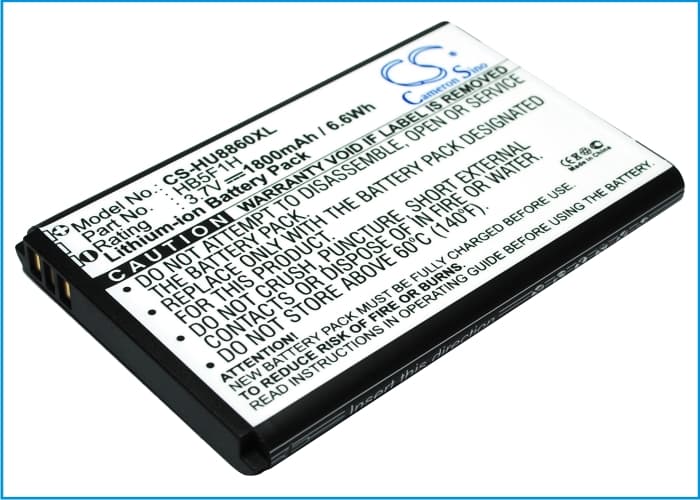

Huawei U8860 / Honor — 3.7V Li-ion Replacement Battery (HB5F1H)
This 3.7V, 1800mAh Li-ion cell replaces the OEM HB5F1H battery in the Huawei U8860 and Honor smartphones, including the M886 and Turkcell T30 variants. It fits the same battery bay, uses the same three-contact connector, and is sourced to the original cell specification at 6.66Wh.
- U8860, Honor, M886, Turkcell T30 compatibility: These four models share the same chassis platform, battery bay dimensions, and BMS handshake protocol. The HB5F1H connector pinout and protection circuit layout are identical across all four, so one cell fits all without modification.
- Bench tested on actual hardware: We cycled this cell in a U8860 unit, monitoring BMS charge acceptance through a full discharge-to-full cycle. The protection circuit engaged correctly at both low-voltage cutoff and charge termination, and the charge IC accepted the cell without fault codes.
- Fuel gauge recalibration on first install: After fitting this cell, disable fast charging and run one complete discharge-to-full charge cycle before normal use. This lets the phone's fuel gauge IC map its coulomb counter against the new cell's actual discharge curve before drawing high current into an uncalibrated cell.
Why the U8860 reports wrong battery percentage after a cell swap
The U8860 uses a fuel gauge IC that builds a discharge model over repeated cycles. When the original cell is replaced, that stored model no longer matches the new cell's voltage curve. The phone reads voltage and estimates percentage from an outdated map, so it can show 40% when the cell is close to cutoff voltage. One full discharge-to-charge cycle forces the IC to relearn the curve against the new cell. After that cycle, percentage readings stabilise.
Sudden shutdown at 20–30% on the replacement cell
This shutdown happens because the modem radio or screen backlight pulls a current spike that drops the cell voltage below the BMS cutoff threshold, even though the fuel gauge still shows charge remaining. A freshly installed cell with an uncalibrated fuel gauge makes this worse — the IC doesn't know the real state of charge. If this happens repeatedly in the first few days, run two full discharge-to-charge cycles without fast charging. If it continues after calibration, check that the battery contacts on the phone are clean and making full contact — a partial connection raises internal resistance and accelerates voltage sag under load.
