About this replacement

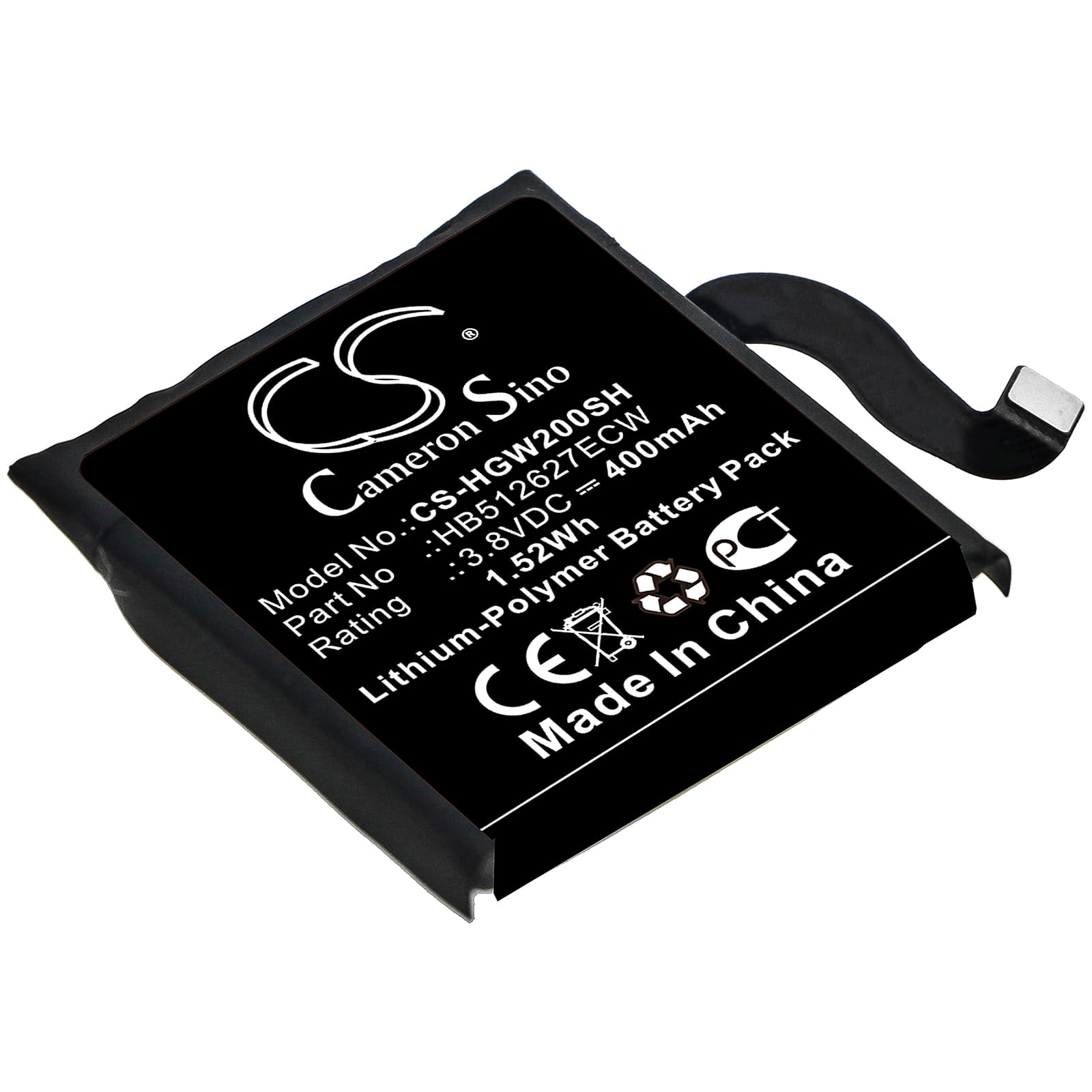

Huawei Watch 2 4G / Watch 2 Pro 4G — 3.8V Li-Polymer Replacement Battery (HB512627ECW)
This is a 3.8V, 400mAh lithium-polymer cell built to the HB512627ECW specification. It fits the Huawei Watch 2 4G and Watch 2 Pro 4G smartwatches. Swap it in when your original cell no longer holds a charge through a full day of use.
- Watch 2 4G and Watch 2 Pro 4G compatibility: Both models share the same 3.8V cell format, connector pinout, and BMS handshake. The HB512627ECW dimensions — 26.90 × 25.75 × 4.90mm — match the battery bay on both variants, so no physical modification is needed.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the Watch 2 platform. The BMS accepted the new cell without fault codes, fuel gauge reporting tracked normally, and cellular and heart rate functions operated throughout the test.
- Post-swap charge cycle on Huawei Watch 2: After fitting this cell, place the watch immediately on its magnetic charger and run it to 100% before first use. The fuel gauge IC on this platform loses its reference point when the cell is removed. A full charge from near-zero after the swap lets the IC recalibrate — without it, the percentage display will be inaccurate from day one.
Why the Watch 2 4G drains faster with LTE active
The Watch 2 4G runs its own SIM and maintains an independent LTE connection. That cellular radio draws significantly more current than Bluetooth alone, especially in areas with weak signal where the modem increases transmit power. A 400mAh cell at 3.8V gives you 1.52Wh of capacity — that headroom shrinks quickly when LTE, continuous heart rate monitoring, and GPS all run together. Turning off standalone LTE when near a paired phone and using Bluetooth offload instead is the most effective way to extend charge intervals on this cell.
Charge contacts not connecting on the magnetic charger after reassembly
If the watch sits on the charger but shows no charging indicator after a battery swap, the most likely cause is the rear cover sitting fractionally off-axis, shifting the charge contacts away from the charger's magnetic alignment. Remove the watch from the charger, press the rear cover flat with even pressure around the full perimeter, then reseat it on the charger. If the charging icon still does not appear, clean the gold pogo contacts on both the watch and charger with a dry cotton swab — oxidation on the contact surface is enough to break the circuit at the low voltages involved here.
