About this replacement

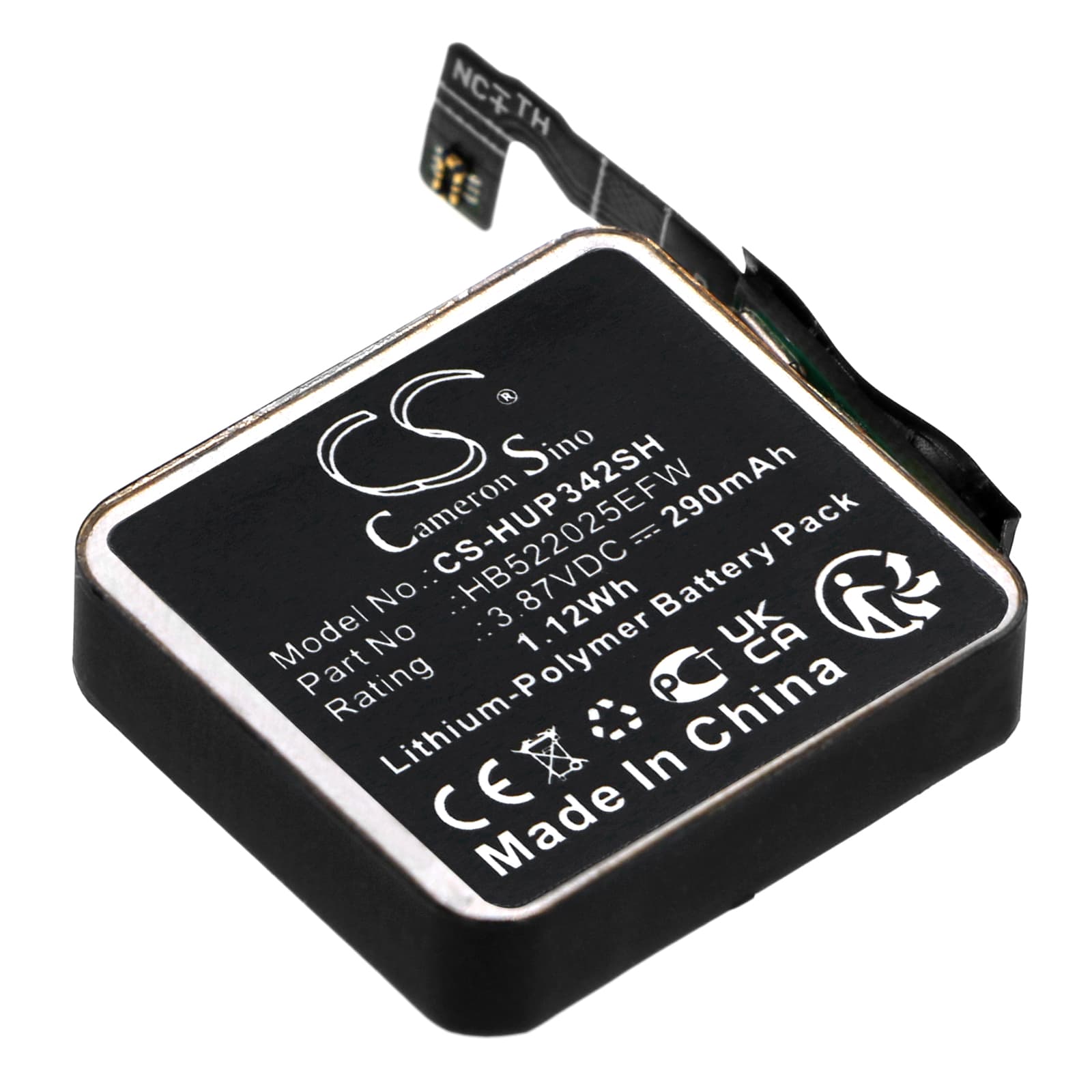

Huawei Watch GT3 42mm — 3.87V Li-Polymer Replacement Battery (HB522025EFW)
This is a 3.87V, 290mAh Li-Polymer cell replacing OEM part HB522025EFW in the Huawei Watch GT3 42mm and Watch GT3 Pro 42mm. It fits the compact 42mm chassis and restores full smartwatch operation — fitness tracking, heart rate monitoring, and notifications. Dimensions are 23.30 × 19.80 × 5.10mm, matching the original cell footprint.
- GT3 42mm and GT3 Pro 42mm compatibility: Both 42mm variants share the same cell cavity, connector pinout, and BMS handshake protocol, so one SKU covers both. The fuel gauge IC on each model reads voltage curves specific to a 290mAh Li-Polymer cell — fitting a different capacity would throw off state-of-charge reporting immediately.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a GT3 42mm unit. The BMS accepted the cell without fault flags, the fuel gauge recalibrated after a full charge cycle, and the watch held state-of-charge accurately across several days of standard sensor use.
- Post-swap initialisation on the GT3 platform: Place the watch on its magnetic charger immediately after fitting this cell and charge to 100% before first use. The fuel gauge IC loses its voltage reference during a cell swap — without a full charge cycle from near-zero, it cannot recalibrate and will report inaccurate percentages from the start.
Why the GT3 42mm reports wildly wrong battery percentages after a cell swap
The GT3 platform uses a coulomb-counting fuel gauge IC that anchors its state-of-charge model to known full and empty voltage points. When the original cell is removed, those reference points are lost. The IC wakes up with a new cell at an unknown charge level and guesses — often badly. Charging to 100% immediately after fitting the replacement resets the upper anchor point, and the first full discharge from 100% sets the lower one. After one full cycle, percentage readouts stabilise.
Charge contacts not connecting on the magnetic charger after reassembly
If the watch shows no charging indicator when placed on its magnetic puck after a battery replacement, the rear cover has most likely shifted slightly during reassembly, misaligning the charge contacts. Remove the watch from the charger, press firmly around the edge of the rear cover to reseat it, then try again. The magnetic puck is sensitive to lateral offset of more than about 1mm. If the charging icon still does not appear, rotate the watch 180° on the charger — the magnet will re-centre it at the correct alignment.
