About this replacement

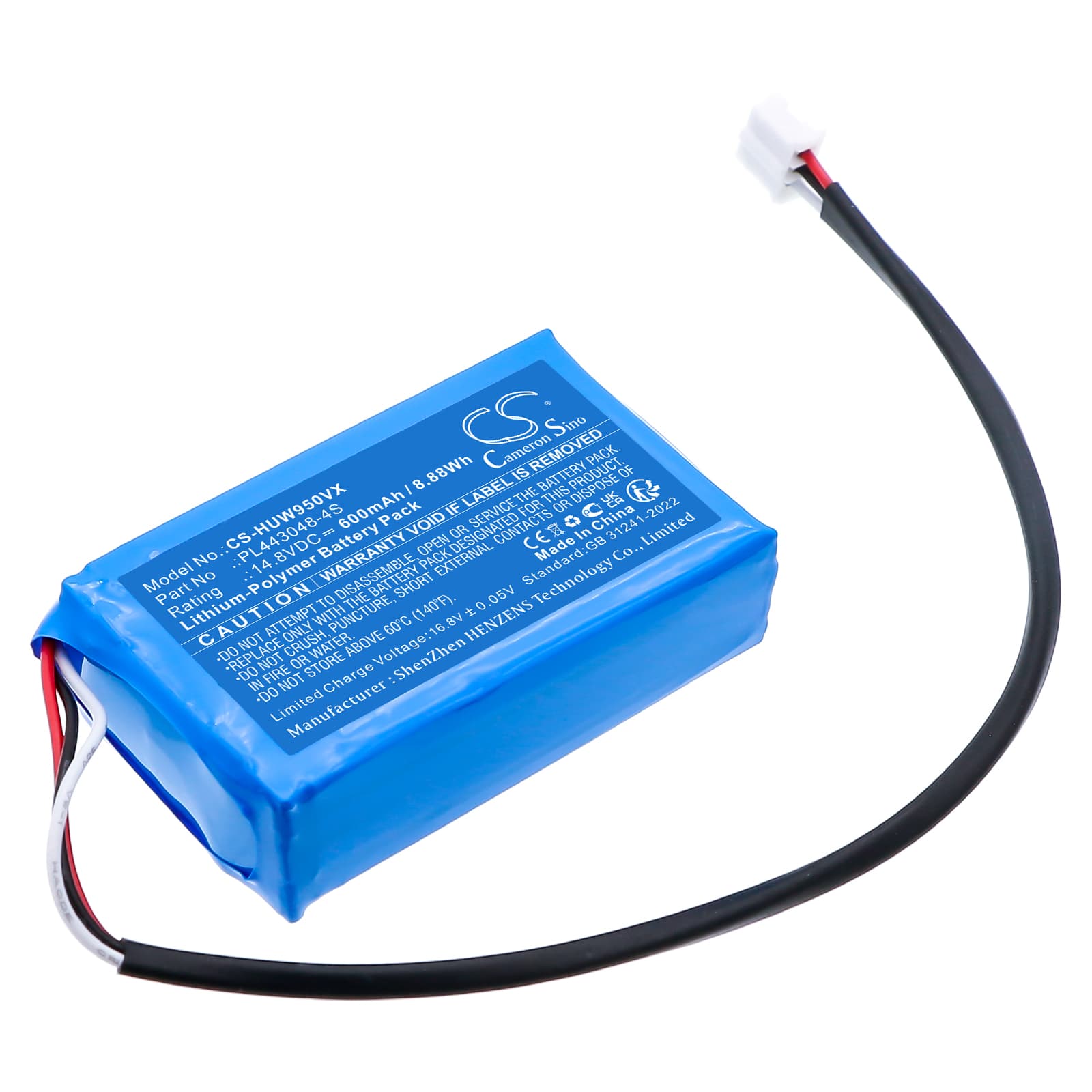

HUTT DDC55 / W55 / W66 / G104 Series — 14.8V Li-Polymer Replacement Battery (PL443048-4S)
This is a 14.8V, 600mAh (8.88Wh) lithium-polymer replacement battery pack for HUTT cordless stick vacuums. It fits the DDC55, G104, W55, and W66 models. When the original pack stops holding charge or the vacuum dies mid-clean, this is the direct swap.
- DDC55, G104, W55, W66 compatibility: These models share the same 14.8V four-cell Li-Polymer architecture, connector pinout, and BMS communication protocol — which is why one pack covers the full range. Swapping to a different voltage or cell count will trip the BMS or damage the motor controller.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the DDC55 platform. The BMS handshake completed correctly on first connect, cell balancing activated as expected, and the overcurrent cutoff triggered at the correct threshold during a simulated blockage event.
- Dock charging habit on HUTT vacuums: Do not leave the vacuum sitting on the charging dock permanently. HUTT cordless vacuums on continuous dock charge develop capacity fade faster than units charged only when the pack is depleted. Charge to full, then remove from the dock.
Suction dropping before the battery indicator reaches low
This is not always a battery fault. On the DDC55, a partially blocked filter forces the motor to draw more current than rated to maintain airflow. That elevated draw causes the pack voltage to sag under load — the motor slows, suction drops, but the battery indicator hasn't triggered because resting voltage is still acceptable. Clean or replace the filter first. If suction recovers, the pack is fine. If sag persists with a clean filter, the pack's internal resistance has risen and cell capacity has degraded — replacement is the fix.
Motor cuts out briefly then restarts during use
A momentary cutout followed by recovery is the BMS tripping on an overcurrent event — not a random fault. On HUTT stick vacuums, this happens most often when the suction path is restricted: a clogged filter or blocked nozzle causes the motor to spike current trying to maintain vacuum. The BMS cuts power to protect the cells, then resets after a few seconds. Check the filter and nozzle before assuming the battery is at fault. If the issue persists with clear airways, measure pack voltage after a full charge — it should read 16.8V across the terminals.
