About this replacement

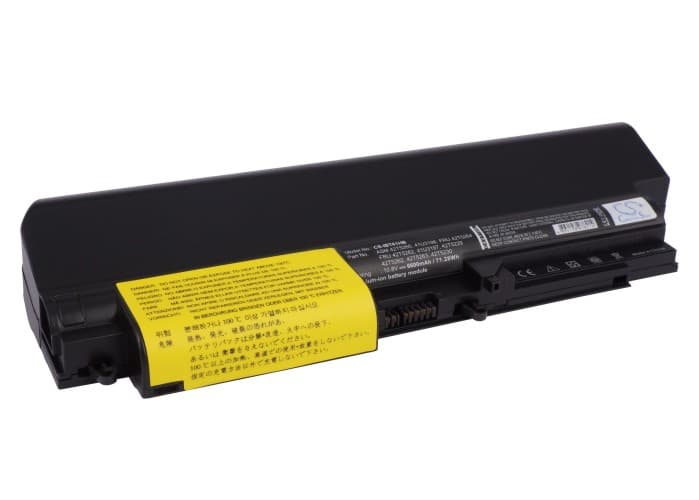

IBM ThinkPad T61 7659 Series — 10.8V Li-ion Replacement Battery (ASM 42T5265)
This 10.8V, 6600mAh Li-ion battery replaces the original pack on the IBM ThinkPad T61 7659 and compatible models including the ThinkPad T400 2764, T61 6480, and R400. It slots into the standard ThinkPad battery bay and connects via the same multi-pin bus used by the OEM pack. Capacity matches the original 71.28Wh specification.
- T61 and T400 platform compatibility: These models share IBM's 10.8V three-cell-in-series architecture, the same 9-pin SMBus connector, and an identical BMS handshake protocol — which is why one cell works across the T61, T400, and R400 lines without firmware changes.
- Bench tested on actual hardware: We ran this cell on a T61 7659 mainboard and confirmed the SMBus communication initialised correctly, BIOS recognised the pack without error flags, and the BMS held charge termination at the correct voltage ceiling.
- First-cycle calibration on the T61: After installing, discharge the laptop normally to the hibernate cutoff, then charge uninterrupted to 100% without interruption. This forces the ThinkPad's fuel gauge IC to re-learn the new cell's actual capacity curve and clears the inaccurate health warning that appears in Lenovo Power Manager after every cell swap.
BIOS reporting poor battery health immediately after fitting a new cell
The ThinkPad BIOS reads health data from the battery's EEPROM — not from a live measurement. When a new cell arrives, that EEPROM contains factory defaults that don't match the system's learned charge history, so the BIOS flags it as degraded. Running a full discharge-to-hibernate followed by an uninterrupted charge resets the learn cycle. After two to three full cycles, the BIOS health reading aligns with the actual cell condition. No firmware update or BIOS reset is required — calibration cycles fix this.
Laptop shuts down abruptly at 20–30% charge shown on screen
This happens when the cell can no longer sustain the voltage rail under combined CPU and display load — the voltage drops off a cliff faster than the fuel gauge IC can track it. The OS gauge shows 20–30% remaining because it's reading a state-of-charge estimate, not live voltage under load. A depleted original cell hits this cliff early; a fresh cell pushes that point much closer to true empty. If a new cell still cuts out above 15%, recheck the battery contacts on the mainboard connector for oxidation and confirm the hibernate threshold in Power Manager is set no higher than 5%.
