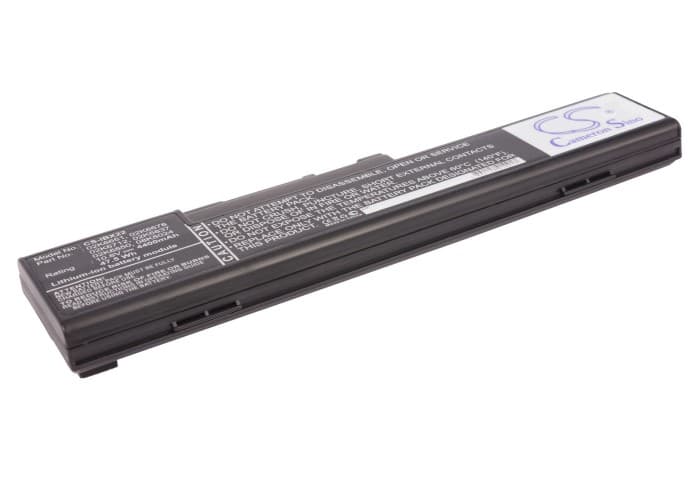

IBM ThinkPad X20 / X21 / X22 / X23 — 10.8V Li-ion Replacement Battery (02K6651)
This is a 10.8V, 4400mAh (47.52Wh) lithium-ion replacement battery for the IBM ThinkPad X20 series ultraportable notebooks. It fits the ThinkPad X20, X21, X22, and X23, covering a wide span of early-2000s business-class ThinkPad hardware. OEM part numbers covered include 02K6651, 02K6678, 02K6712, 02K6837, 02K6838, 02K6839, 02K6850, 08K8024, and FRU 02K6652.
- X20 through X23 shared platform: These four ThinkPad models run the same 10.8V power rail, use the same physical connector, and communicate with the same BMS handshake protocol. A single cell fits all four without modification.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a ThinkPad X22. The BMS responded correctly to charge termination at full capacity and did not trigger false protection cutoffs during normal CPU and display load.
- Post-install discharge cycle on X-series ThinkPads: After fitting this battery, run the laptop on battery power until it hibernates at low charge, then charge it uninterrupted to 100%. The ThinkPad X-series BIOS uses a battery learn cycle to calibrate its fuel gauge against the new cell — skipping this step causes the health warning to persist and the charge indicator to read inaccurately for weeks.
BIOS reporting poor battery health immediately after cell swap
The ThinkPad X20 BIOS reads health data stored in the battery's EEPROM and compares it against expected charge cycles and capacity. A fresh cell arrives with EEPROM values that do not match the BIOS's learned baseline for the old cell, so the BIOS flags it as degraded even though it is new. This is not a fault with the replacement cell — it is a data mismatch. Running one full discharge-to-hibernate followed by a complete uninterrupted charge to 100% resets the BIOS battery learn cycle and clears the warning.
Laptop shutting down abruptly at 20–30% charge shown on screen
This happens when the cell voltage drops below the BMS protection threshold under combined CPU and display load, even though the OS fuel gauge still reads 20–30%. The fuel gauge IC in the ThinkPad X-series calculates remaining charge from a model built on the old cell's chemistry — it has not yet calibrated to the new cell's actual voltage curve. The result is a mismatch: the gauge shows capacity remaining, but the cell has already crossed the cutoff voltage under load. Complete two to three full discharge-to-hibernate and charge-to-100% cycles to let the fuel gauge IC recalibrate against the new cell. After calibration, the gauge tracks the actual voltage cliff and the abrupt shutdowns stop.
