About this replacement

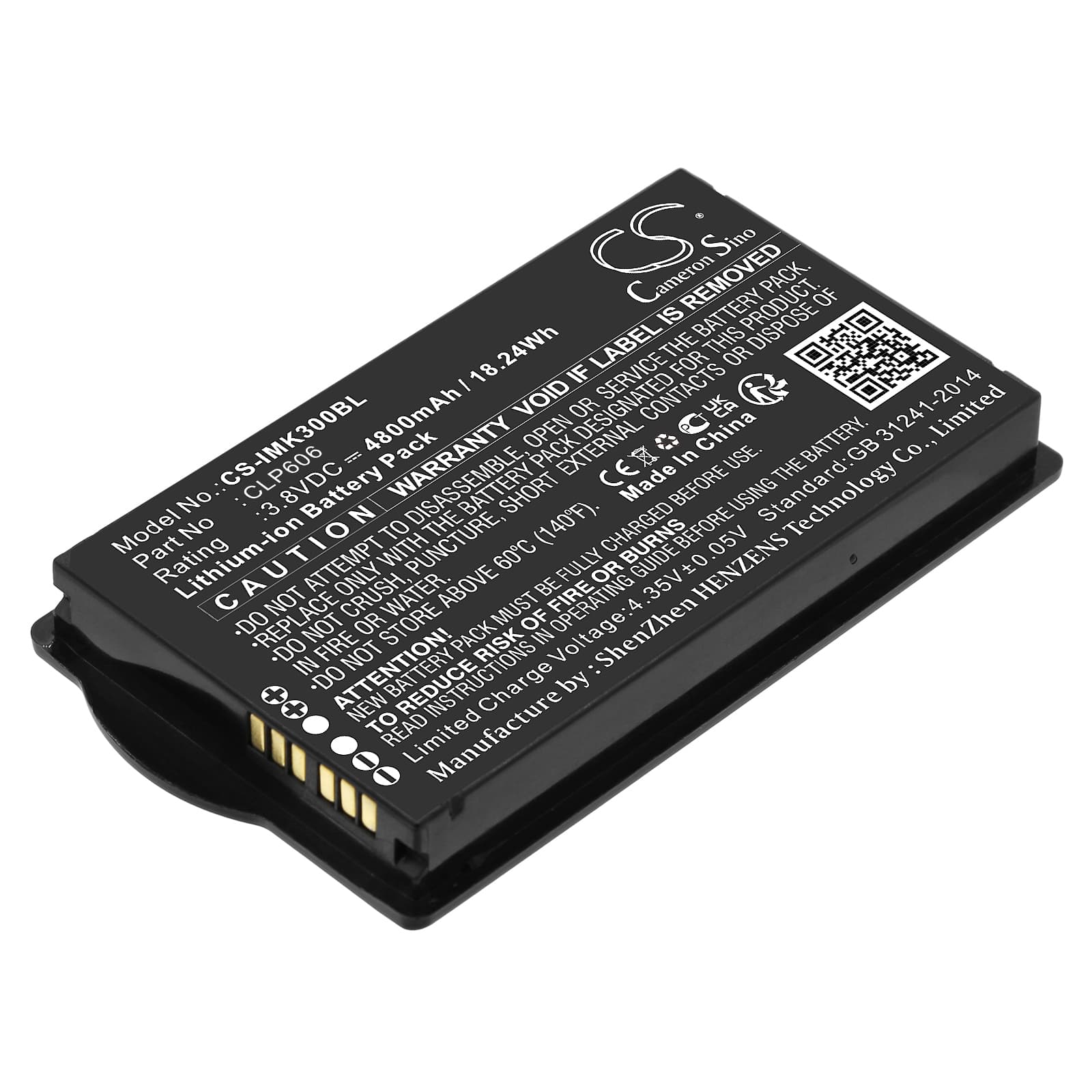

IDATA K3 — 3.8V Li-ion Replacement Battery (CLP606)
This is a 3.8V, 4800mAh Li-ion battery for the IDATA K3 handheld barcode scanner. It replaces OEM part CLP606 and fits the K3 directly. Rated at 18.24Wh, it suits retail, warehousing, and inventory scanning environments where the scanner runs through full shifts.
- IDATA K3 fit: The K3 uses a dedicated battery bay with a BMS handshake tied to the CLP606 part line. This replacement matches the connector pinout and voltage profile the K3's power management circuit expects, so the device recognises the pack and charges normally through the cradle.
- Bench tested on actual hardware: We ran this pack through the K3's charge and discharge cycle on the bench. The BMS handled scan trigger inrush without tripping, and the cradle recognised the pack and completed a full charge cycle without a fault code.
- First-shift prep for the K3: After installing, seat the scanner in its cradle and let it complete a full charge before the first pick-and-pack shift. The scan trigger draws the highest inrush current when the cell is near minimum — a fully charged pack prevents false BMS trips during the first burst of scans.
Cradle showing a charging error on a new CLP606 pack
A charging error on the K3 cradle with a new pack is almost always a contact resistance issue, not a faulty cell. The cradle's charge controller checks contact voltage at the gold pads on the battery before committing current — any oxidation or debris on those pads raises resistance above the threshold and triggers an error. Wipe the battery contacts and the cradle contacts with a dry cloth, reseat the scanner firmly, and the error clears in most cases. If the error persists after reseating, check that the cradle itself reads 5V at the charge pins with a multimeter.
Scanner losing wireless connection during rapid scan bursts
During fast, repeated scanning, the K3 pulls current simultaneously from the imager and the wireless radio. On a degraded or low battery, combined inrush from both loads causes a momentary voltage drop that the radio interprets as a power fault, dropping the connection. A new 4800mAh pack at full charge holds the voltage rail above the radio's minimum threshold during those combined draw events. If dropouts continue after a full charge, check the scan burst interval in the scanner's configuration — reducing the polling frequency on the radio reduces the overlap between the two peak draws.
