About this replacement

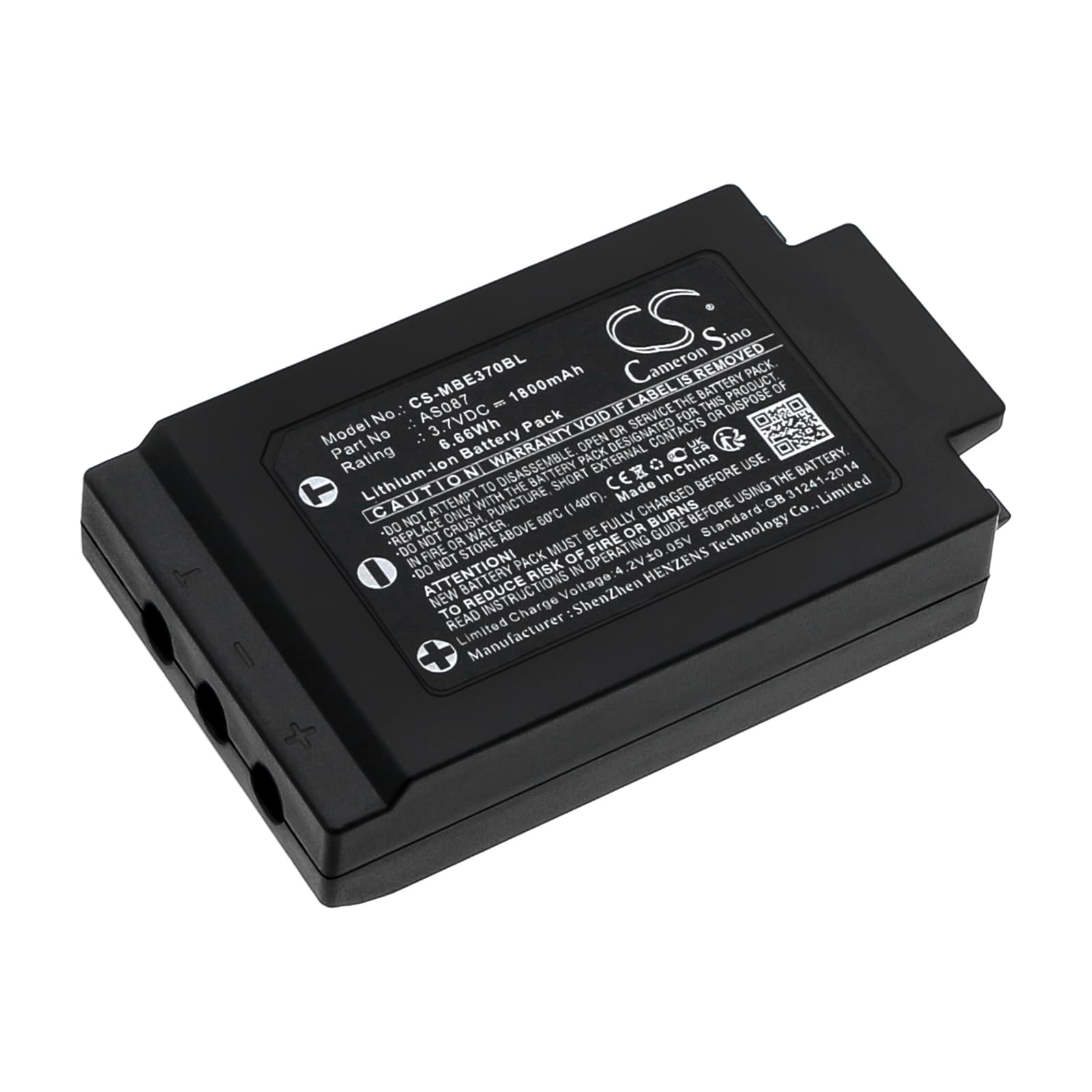

IMET WAVE2 / M880 RAY Crane Remote — 3.7V Li-ion Replacement Battery (AS087)
This is a 3.7V, 1800mAh Li-ion battery for IMET crane remote transmitters. It fits the WAVE2, WAVE2 S6, WAVE2 L10, and M880 RAY platforms. Swap it in when the original cell can no longer hold charge through a full shift.
- WAVE2 and M880 RAY transmitter family: These remotes share the same battery bay geometry, connector orientation, and 3.7V nominal rail. The AS087 cell fits all listed transmitter variants without modification to the housing or contacts.
- Bench tested on actual hardware: We cycled the cell through charge and discharge on the bench, confirming the BMS holds cutoff correctly at low voltage and accepts a full charge without flagging a fault on the transmitter display.
- Monthly charge during idle storage: Crane remotes often sit unused for weeks between jobs. Keep this cell above 3.0V by charging it once a month during any idle period — Li-ion cells that drop below 2.5V can trigger BMS lockout and will not recover even when a charger is connected.
Solenoid activation causing power dropout on a freshly installed battery
When a solenoid or relay fires, it draws a short inrush current spike that can exceed the BMS discharge threshold on a cell that is not at full charge. The BMS interprets that spike as an overcurrent event and cuts the output rail momentarily. This causes the remote to drop out or reset mid-command, which is dangerous on a live crane. Charge the new cell fully to 4.2V before putting the remote into service — a cell sitting at storage voltage around 3.7V does not have enough headroom to absorb that inrush without tripping the BMS.
Remote showing low-battery warning immediately after new cell install
Li-ion cells ship at storage voltage, typically 3.6–3.7V, not at full charge. The WAVE2 transmitter reads cell voltage directly and flags anything below its low-battery threshold as a warning. This is not a fault with the cell — it is a storage state, not a depleted state. Connect the charger before first use and run the cell up to 4.2V; the warning will clear once the transmitter sees nominal operating voltage.
