About this replacement

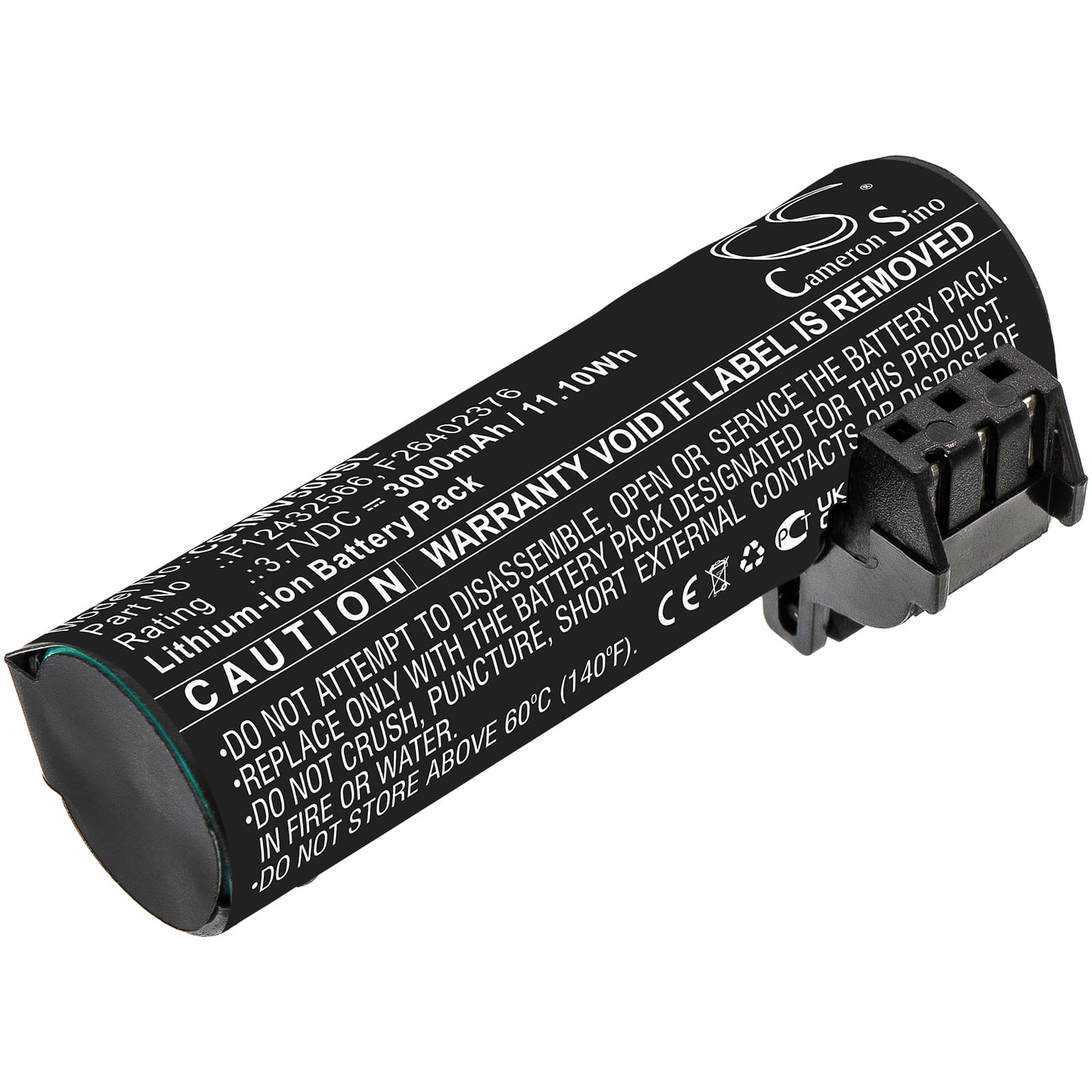

Ingenico Move 5000 Series — 3.7V Li-ion Replacement Battery (F26402376)
This 3.7V 3000mAh Li-ion battery replaces the original cell in the Ingenico Move 5000, Move 5000s, and Move 5000F mobile payment terminals. It matches OEM part numbers F26402376, PBI61726, and F12433179. Physical dimensions are 66.00 × 31.80 × 24.00mm — confirm fit before installing in a modified enclosure.
- Move 5000 / 5000s / 5000F compatibility: All three variants share the same battery bay geometry, connector pinout, and BMS communication protocol. The terminal's charge IC reads the same authentication handshake across this model family, so one cell covers all three.
- Bench tested on actual hardware: We ran this cell through the Move 5000's full boot sequence and simulated transaction loads — receipt printer motor engagement, NFC polling, and wireless data bursts. The BMS held rail voltage steady and did not trip overcurrent during combined draw events.
- First-deployment cycle: Complete one full transaction cycle before using the terminal in a live environment. The Move 5000 maps battery capacity during normal operation and requires at least one complete power cycle to calibrate the charge indicator accurately.
Terminal rebooting mid-transaction after battery swap
The Move 5000 pulls a combined load from the receipt printer motor, NFC antenna, and wireless radio simultaneously during a card transaction. On a new cell that hasn't completed its first calibration cycle, the BMS can interpret this combined spike as an overcurrent event and cut output. This is a BMS protection trip, not a faulty battery. Run two or three complete transactions on a full charge first — once the charge IC has profiled the cell, the threshold mapping stabilises and nuisance trips stop.
Terminal not completing PCI boot sequence on a freshly installed battery
The Move 5000 runs a PCI security boot check at startup that draws a brief high-current pulse from the battery. If the cell voltage is below approximately 3.5V when the battery is installed, the terminal may stall or loop at the boot screen before completing initialisation. Connect the terminal to the charging dock immediately after installing the battery and allow it to reach at least 3.6V before powering on. One full charge-to-completion cycle resolves this in almost every case.
