About this replacement

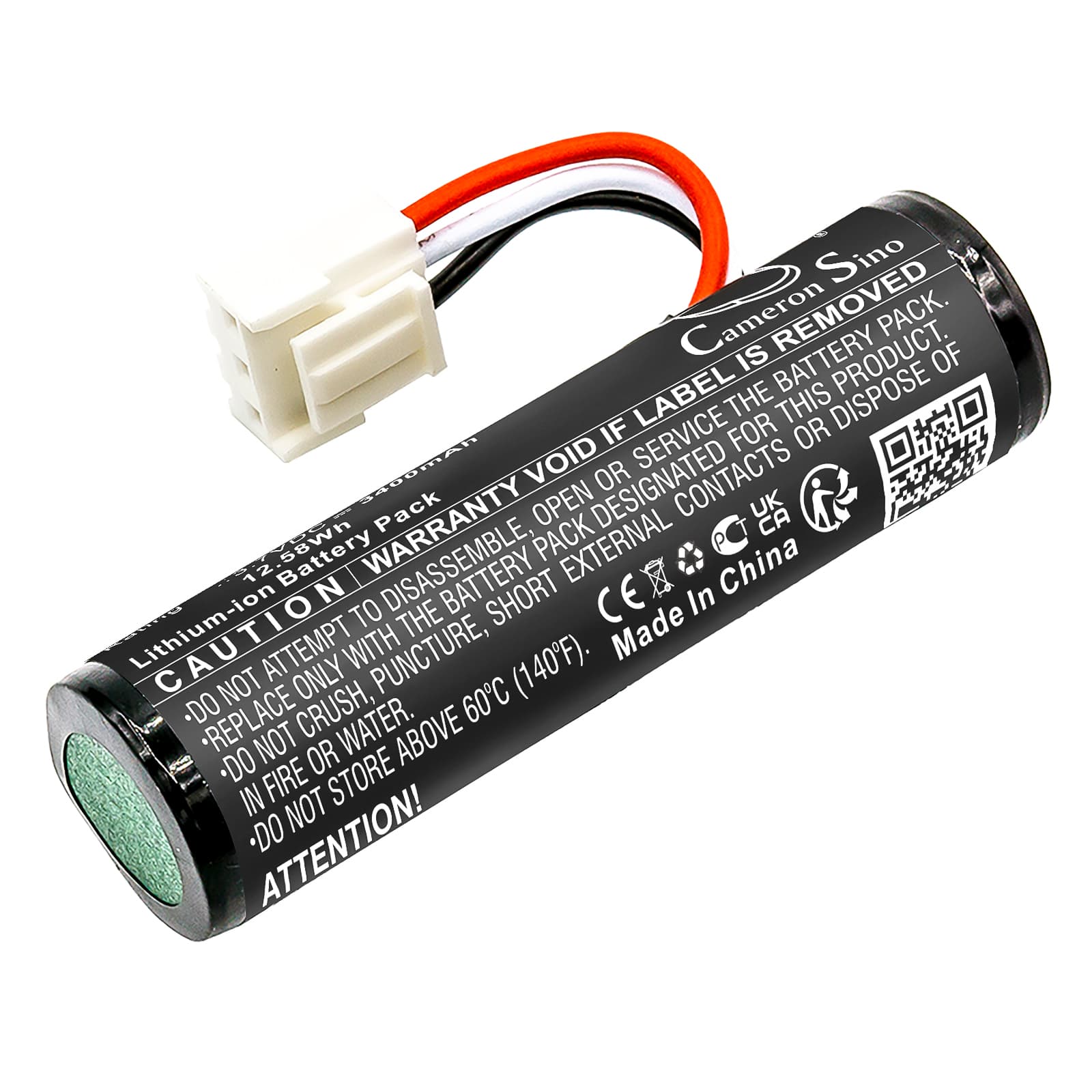

Ingenico Move 5000 Series — 3.7V Li-ion Replacement Battery (F12432566)
This is a 3.7V 3400mAh Li-ion replacement battery for the Ingenico Move 5000 payment terminal range. It fits the Move 5000 3G Bluetooth, Move 5000 3G WiFi Bluetooth, Move 5000 3G/GPRS, and Move 5000 4G Bluetooth variants. OEM part number F12432566 confirms direct fitment across the Move 5000 platform.
- Move 5000 platform compatibility: All Move 5000 variants share the same battery bay geometry, connector pinout, and BMS handshake protocol. The terminal firmware communicates with the battery's protection circuit to verify cell voltage and NTC thermistor response — this battery passes that handshake on every Move 5000 variant listed.
- Bench tested on actual hardware: We cycled this battery through the Move 5000's boot sequence and a simulated transaction load — display on, Bluetooth active, and receipt printer firing. The BMS held current delivery steady through the combined draw without tripping overcurrent protection.
- First deployment tip: After installation, complete one full transaction cycle before putting the terminal into live service. The Move 5000 maps battery capacity during normal operation and requires at least one complete power cycle to calibrate the charge indicator correctly.
Terminal not completing PCI boot sequence after battery swap
The Move 5000 runs a PCI security boot check that includes a battery handshake. On a freshly installed cell, the BMS hasn't yet confirmed a full charge-discharge cycle to the terminal's charge IC. The terminal can stall or loop at the boot screen until that handshake completes. Charge the battery to 100% in the terminal before powering it on for the first time — this primes the BMS and clears the boot loop.
Battery percentage stuck at 99% and not moving on first charge
New Li-ion cells often arrive at a partial state of charge, and the Move 5000's charge IC enters a top-off mode when it detects a cell already near full voltage. The indicator stays pinned at 99% while the IC trickle-charges the final milliamp-hours — this is normal behaviour, not a fault. Leave the terminal on charge until the indicator advances to 100% and the charging LED changes state. That confirms the charge IC has exited top-off mode and the battery is fully conditioned.
