About this replacement

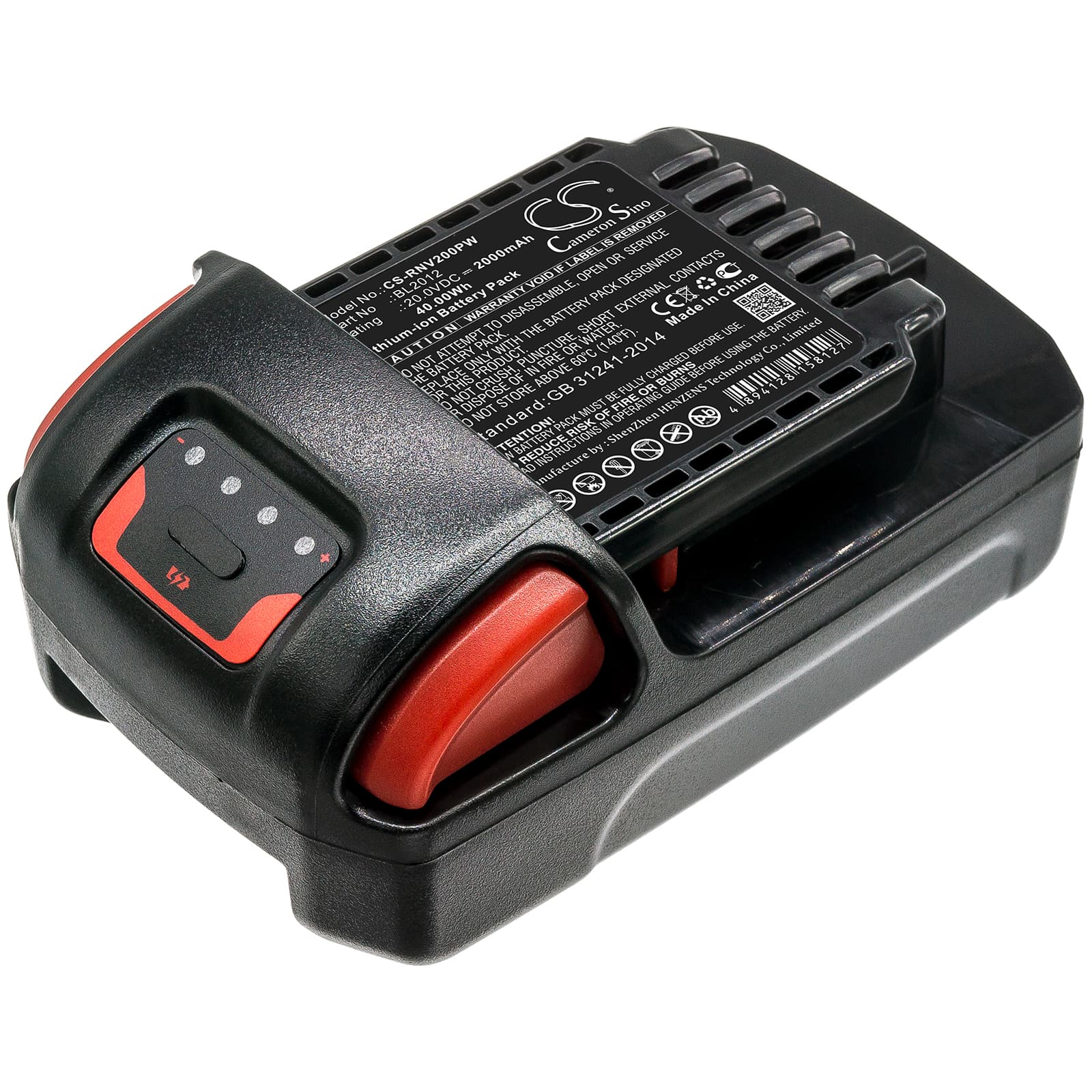

Ingersoll Rand IQV20 Series — 20V Li-ion Replacement Battery (BL2012)
This is a 20V Li-ion battery rated at 2000mAh (40Wh), cross-compatible with OEM part numbers BL2012, BL2010, and BL2022. It fits the IQV20 cordless power tool platform, including the IRC-W7150, IRTW7150, and IRW7150 impact tools, plus 23 additional IQV20-series models. The battery slots into the same slide-in port as the original pack and communicates over the same BMS data line.
- IQV20 platform compatibility: Every tool in the IQV20 range shares a common 20V rail, a three-pin BMS data connector, and the same slide-lock retention tab. That shared architecture is why one battery spans drills, impact drivers, and saws without adapter plates or firmware changes.
- Bench tested on actual hardware: We cycled this pack on an IQV20 impact driver through repeated trigger-pull inrush events. The BMS held the overcurrent threshold without nuisance tripping, and cell balance stayed within 20mV across all five cells at full discharge.
- Break-in load sequencing: On first use, run the tool at half load for two cycles before applying maximum torque. This lets the BMS profile the motor's inrush draw and calibrate its overcurrent protection threshold before it sees a full-torque spike.
BMS cutoff on IQV20 motor-start inrush surge
At trigger pull, an IQV20 impact driver or circular saw draws three to five times its running current for the first 80–120 milliseconds. A BMS that hasn't profiled the motor yet will read that spike as a fault and cut the output rail instantly. The pack appears dead even though the cells are fully charged. Releasing the trigger, waiting three seconds, and squeezing slowly past half travel lets the BMS see a graduated current ramp instead of a wall — it resets and delivers full power.
Charger blinking red on a new or stored 20V pack
Most IQV20-compatible chargers won't enter fast-charge mode if any cell reads below 2.5V — a state common after packs sit in a warehouse for several months. The charger blinks red or refuses to acknowledge the pack entirely. The fix is to force a trickle-charge wake-up: if your charger has a recovery or "boost" mode, use it; if not, place the pack in the charger, remove it after 90 seconds, reinsert it, and repeat until the charger accepts it. Once all cells are above 2.8V the charger will switch to normal charge and the indicator goes solid or green.
