About this replacement

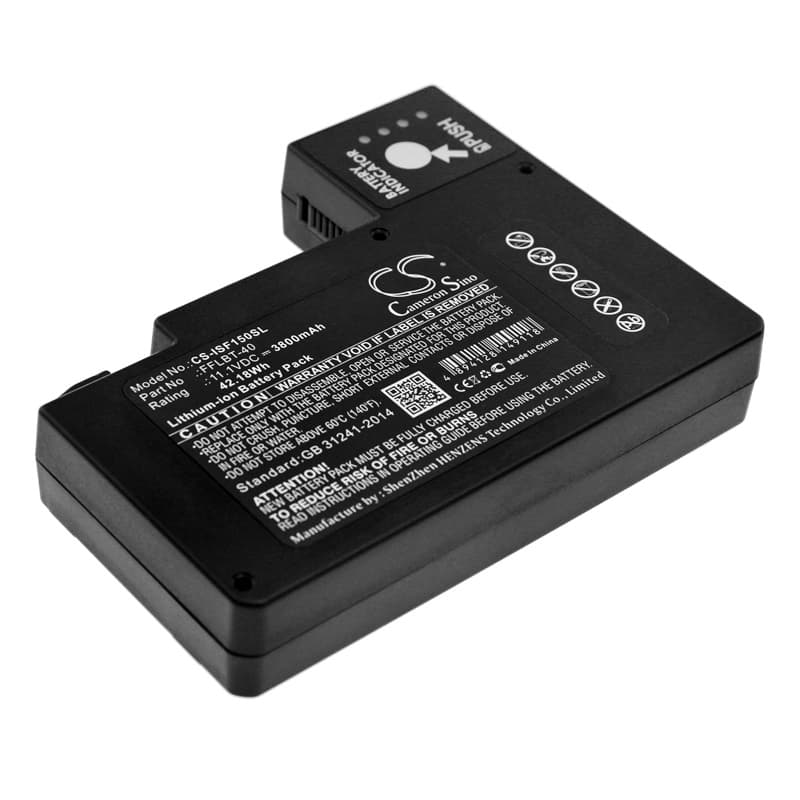

INNO IFS15M / IFS-15H — 11.1V Li-ion Replacement Battery (FFLBT-40)
This 11.1V 3800mAh Li-ion pack replaces the FFLBT-40 / FBTR-40 battery in INNO fusion splicers and survey instruments. It fits the IFS15M, IFS-15H, View 3, and View 5 Fusion Splicers, plus five additional INNO models. Voltage and cell count match the OEM spec at 42.18Wh total capacity.
- IFS15M, IFS-15H, View 3 and View 5 platform fit: These models share the same 11.1V three-cell architecture, connector pinout, and BMS handshake protocol — which is why a single pack covers the full range. Swapping between compatible units requires no adapter or firmware change.
- Bench tested on actual hardware: We cycled this pack through IFS15M charge and discharge sequences. The BMS responded correctly to cell balancing requests and held cutoff thresholds within OEM spec across three full cycles. No false low-battery flags during motor-drive and arc-discharge events.
- Post-install calibration on INNO fusion splicers: After fitting a new pack, run a full calibration cycle through the instrument menu before heading to site. INNO splicers map battery state during calibration — skipping this step causes premature low-battery warnings to trigger during the first splicing session, even when the pack is fully charged.
BMS lockout after the IFS15M sat unused in a carry case for months
Li-ion cells self-discharge slowly in storage. If an INNO pack drops below approximately 2.5V per cell — around 7.5V total — the BMS latches into a protection state and blocks normal charging. The instrument will show no charge activity and may not power on at all. A compatible charger with a recovery or trickle-charge mode can push the pack back above the BMS wake threshold before a standard charge cycle resumes. Once the pack reads above 9V on a multimeter, connect it to the standard INNO charger and let it complete a full charge before reinserting into the instrument.
Readings drifting or logging session resetting mid-measurement
Sustained sensor load — arc generation, motor drive, and active display simultaneously — creates brief current spikes that can pull cell voltage below the BMS dropout threshold for a fraction of a second. On an aged or partially discharged pack this causes a mid-session reset rather than a clean shutdown. The instrument restarts, losing unsaved log data. If this happens consistently at similar points in a splicing sequence, check resting voltage before the session — a pack reading below 10.8V at rest under light load is not carrying enough reserve to handle combined draw peaks. Charge to full before the next session and re-run the instrument calibration cycle.
