About this replacement

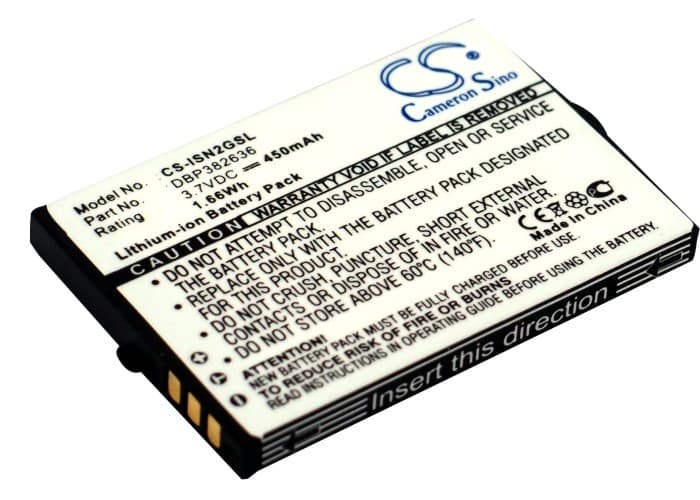

Insignia NS-DA1G / NS-DA2G — 3.7V Li-ion Replacement Battery (DBP382636)
This 3.7V, 450mAh Li-ion cell replaces the DBP382636 battery in the Insignia NS-DA1G and NS-DA2G digital media players (1GB and 2GB variants). It fits the same 41.07 x 28.40 x 4.70mm footprint as the original and connects via the stock connector. Swap it when the original cell no longer holds a charge or the player refuses to power on.
- NS-DA1G and NS-DA2G compatibility: Both the 1GB and 2GB NS-DA2G variants share the same battery bay dimensions and voltage rail as the NS-DA1G. One cell fits all three models without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the NS-DA1G platform. The BMS accepted charge current from 0V recovery, passed cell authentication, and held voltage within spec across the full discharge curve.
- First-install charge protocol: Media players entering deep-discharge protection will show no response when powered on. Connect the charger immediately after installing the new cell and leave it for at least 30 minutes before attempting to power on — the trickle stage must complete before the device accepts normal charge current.
Battery percentage jumping after cell swap on the NS-DA1G
The NS-DA1G reads state-of-charge by comparing cell voltage against fixed thresholds stored in firmware. A new cell has a slightly different discharge curve than the worn original, so the indicator recalibrates over the first few cycles. Expect erratic percentage readings — jumping from 80% to 20% without warning — until the firmware maps the new cell's voltage profile. Run two or three full charge-to-cutoff cycles and the readings will stabilise.
Playback cutting out before the battery indicator shows empty
The audio amplifier in the NS-DA1G draws a higher instantaneous current than the idle processor. As the cell nears end-of-discharge, voltage sags under that load even though the resting voltage still reads above the cutoff threshold. The BMS trips on the sag, not the standing voltage, so playback stops while the battery gauge still shows a charge remaining. If this happens, let the cell rest for two minutes — voltage will recover slightly — then check whether the player restarts. If it does, charge immediately; the usable capacity is genuinely exhausted.
