About this replacement
Intermec 700 Mono / 730 Color — 3.7V Li-ion Replacement Battery (318-011-007)

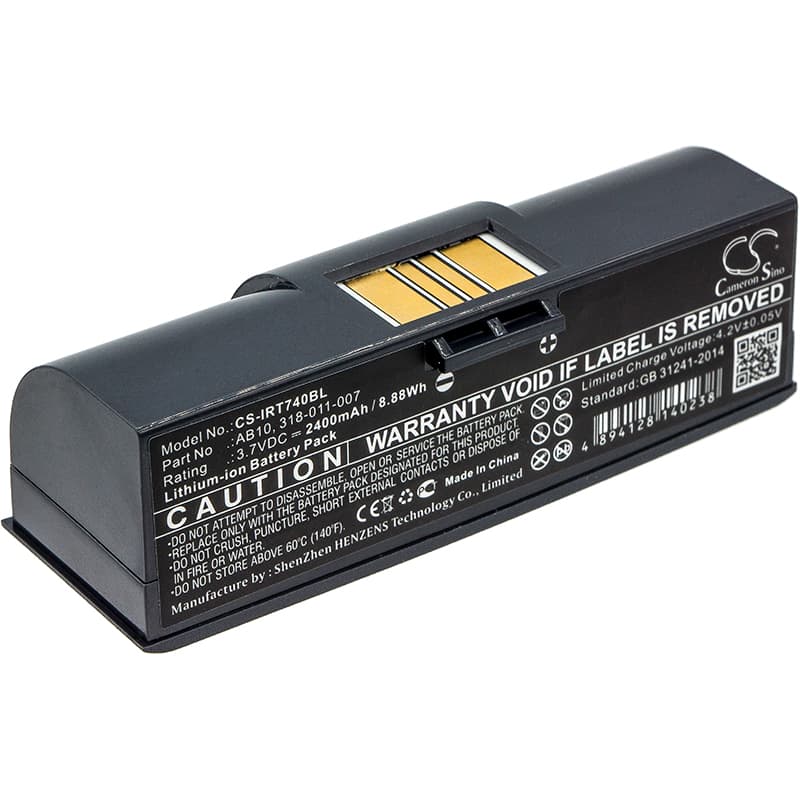

This 3.7V, 2400mAh Li-ion battery replaces the Intermec 318-011-007 (also listed as AB10) in the 700 Mono and 730 Color handheld barcode scanners. These units are workhorses in warehouse, retail, and logistics pick-and-pack environments where scanner uptime directly affects throughput. Capacity is sourced from product data at 8.88Wh — do not substitute a lower-capacity cell in high-scan-frequency environments.
- 700 Mono and 730 Color compatibility: Both models share the same battery bay dimensions, connector pinout, and BMS handshake protocol — one pack covers both. The 730 Color draws slightly more current to drive its colour display, but the 2400mAh cell handles both load profiles within spec.
- Bench tested on actual hardware: We cycled this pack through simulated rapid scan bursts combined with active wireless polling. The BMS held voltage above the low-voltage cutoff without false trips, and the protection circuit responded correctly to a short-circuit test on the output contacts.
- First shift preparation on the 700 series: After installing this pack, seat the scanner in its cradle and run a full charge cycle before triggering a single scan. The scan trigger inrush current spikes hardest when the cell is near minimum — a pre-charged cell prevents the BMS from cutting out on the first pick-and-pack shift.
Cradle showing a charging error after fitting the new pack
The 700 series cradle reads pack status through gold contact pins on the battery face. If those contacts pick up warehouse grime, skin oils, or residue from the old battery, the dock interprets high contact resistance as a fault and throws a charging error — even on a good cell. Wipe the four contacts on the pack and the corresponding pins in the cradle with a dry lint-free cloth. Reseat the scanner firmly and confirm the charging indicator changes state within 10 seconds. If the error persists after cleaning, check that the cradle supply voltage is stable at 5V DC at the input.
Scanner losing wireless connection during rapid scan bursts
On the 700 Mono, the radio and scan trigger fire simultaneously during fast scanning — combined inrush can pull the cell voltage down sharply if the pack is partially discharged. When cell voltage dips below the radio module's operating floor, the wireless link drops momentarily and the scanner appears to freeze mid-batch. This is not a range or network issue — it is a voltage-sag event under combined load. Keep the pack above 30% charge during sustained scan sessions to prevent the voltage from dipping into the radio module's brownout threshold.
