About this replacement

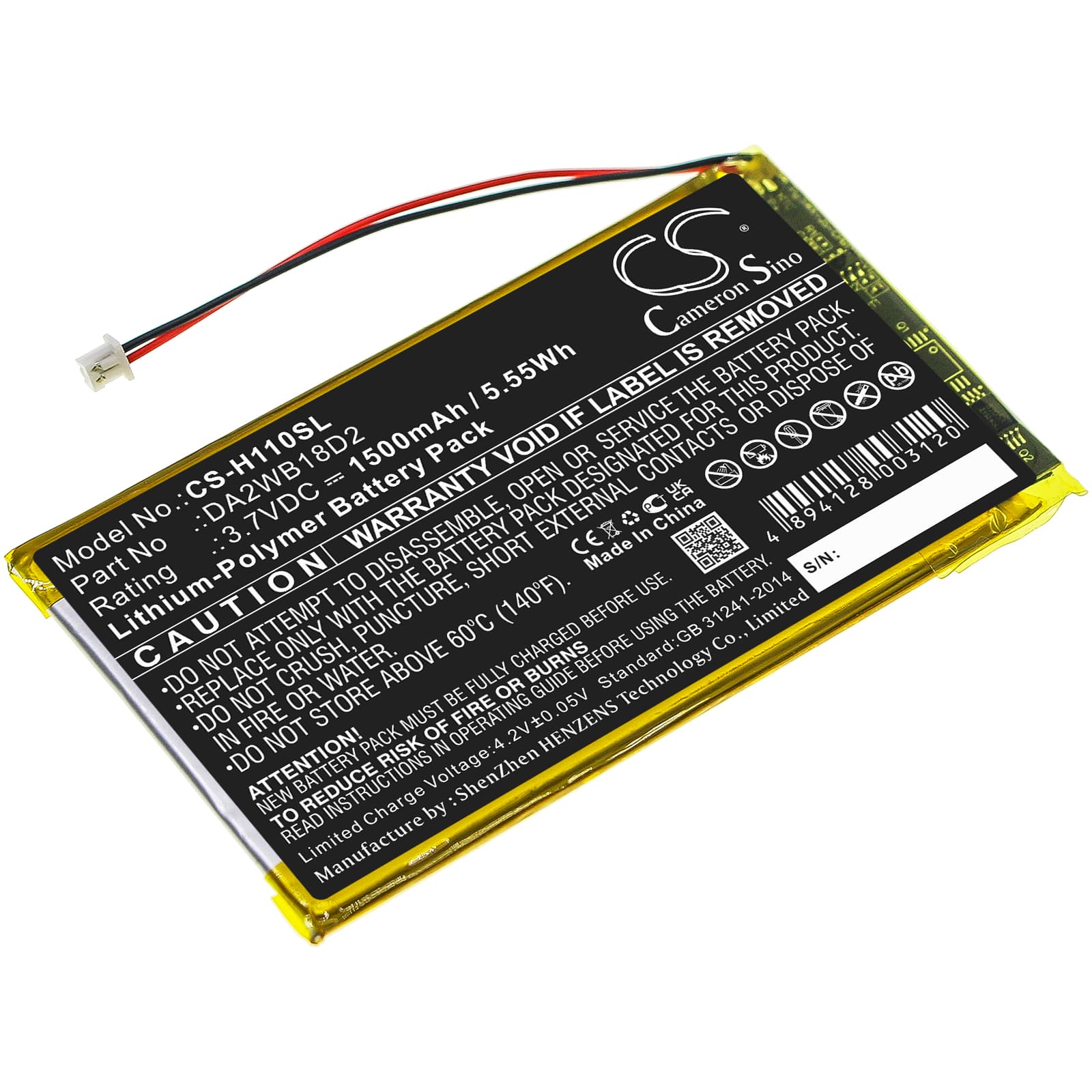

iRiver H110 / H120 / H140 / H320 Series — 3.7V Li-Polymer Replacement Battery (DA2WB18D2)
This is a 3.7V 1500mAh Li-Polymer replacement battery for the iRiver H110, H120, H140, and H320 portable digital audio players. It replaces OEM part DA2WB18D2 and uses the same flat-cell format as the original. Capacity is 1500mAh — match that against your current cell before ordering.
- H110 / H120 / H140 / H320 compatibility: These four models share the same internal battery bay dimensions and connector pinout. The BMS on each unit expects the same 3.7V nominal cell and cutoff thresholds, so one cell covers the full group without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on an H120 unit. The BMS accepted the cell without error, charge termination triggered correctly at full capacity, and low-voltage cutoff fired before the cell dropped below safe discharge limits.
- First charge after a cell swap: Media players in this series can enter deep discharge protection after sitting with a depleted cell. Connect the charger immediately after fitting the new battery and allow at least 30 minutes of trickle charge before attempting to power the unit on — skipping this step is the most common reason the device appears dead after installation.
Battery percentage jumping erratically after cell swap on the H-series
The H-series displays battery level by reading cell voltage against fixed thresholds stored in the firmware. After a cell swap, the new cell's voltage curve doesn't match the state the firmware last recorded. For the first several charge and discharge cycles, the indicator will jump — showing 80% then dropping to 40% within minutes. This is a recalibration issue, not a fault. Run three full charge-to-discharge cycles and the readout will stabilise.
Playback cutting out before the battery indicator shows empty
At the tail end of a discharge, cell voltage sags under the load of the audio amplifier circuit. The H-series amplifier draws enough current that voltage drops below the BMS cutoff threshold before the indicator reaches zero. This is more noticeable with aged cells but can appear with a new cell if the device has been stored in a partially discharged state. A full charge cycle before heavy playback use resolves it — target a full green indicator before starting a long session.
