About this replacement

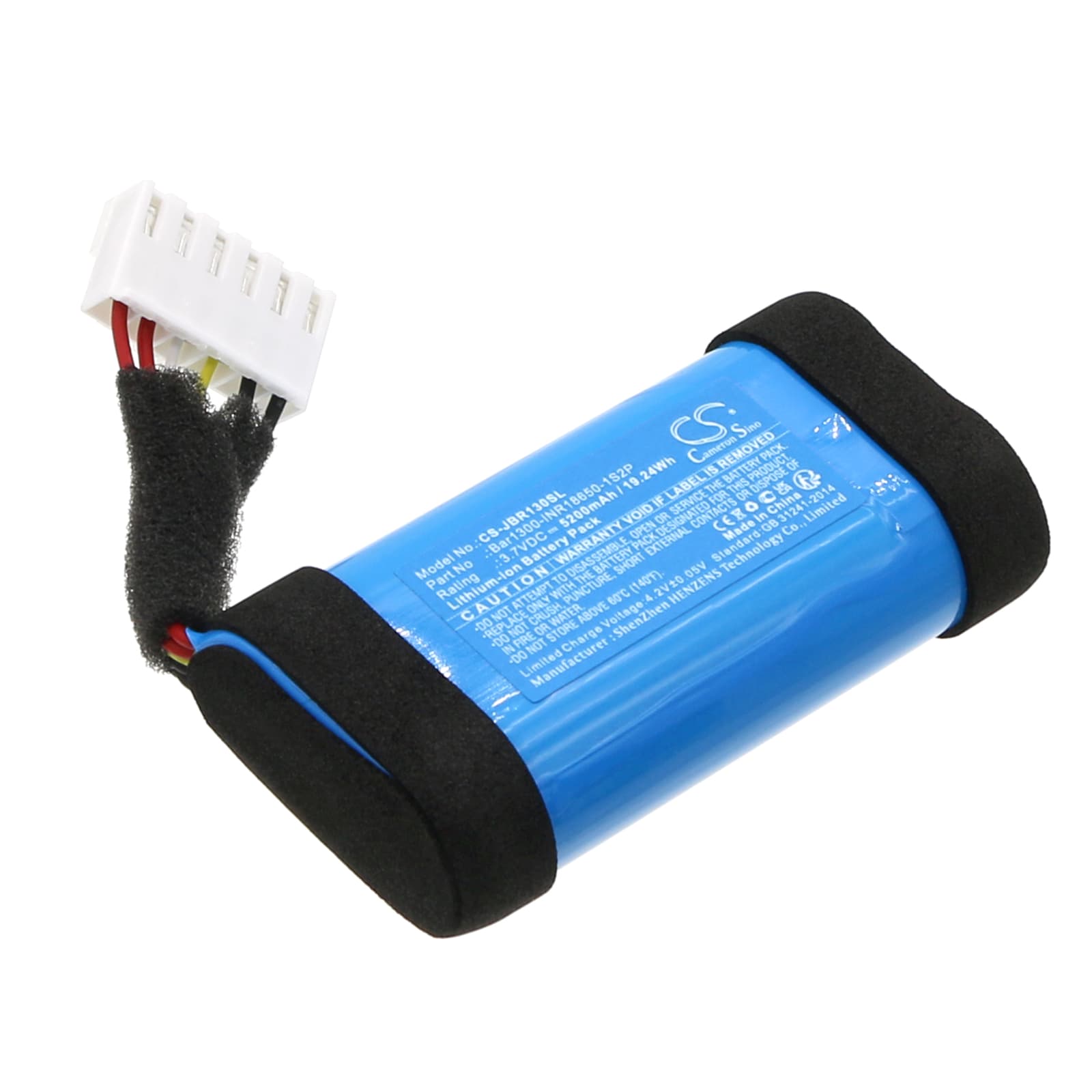

JBL Bar 1000 / Bar 1300 Series — 3.7V Li-ion Replacement Battery (Bar1300-INR18650-1S2P)
This is a 3.7V 5200mAh (19.24Wh) Li-ion replacement battery for the JBL Bar 1000, Bar 1300, and Bar 1300X soundbars. It slots into the wireless speaker module, restoring battery-backed audio when the original cell has degraded. OEM part number is Bar1300-INR18650-1S2P.
- Bar 1000, Bar 1300, and Bar 1300X compatibility: All three models share the same speaker module cavity, connector pinout, and BMS handshake protocol — the 1S2P cell configuration is identical across the range, so one part number covers all three.
- Bench tested on actual hardware: We ran this battery through charge cycles on the Bar 1300 module and confirmed the BMS accepted the cell without fault codes, held the charge curve correctly, and released current cleanly under amplifier load at high volume.
- Fuel gauge reset after swap: After fitting a new cell, discharge the soundbar to below 20% before the first full recharge. Skipping this step leaves the fuel gauge calibrated to the old cell's wear curve, so the indicator reads inaccurate from day one.
Why the Bar 1000 cuts audio mid-session despite showing charge remaining
The Bar 1000's amplifier draws a sharp current spike whenever bass hits hard or volume jumps. A degraded cell can't sustain that surge, and voltage sags below the BMS protection threshold — the module cuts out to protect the cell, even though the indicator showed charge left. This isn't a software glitch; it's the BMS responding to instantaneous voltage drop, not state of charge. A fresh 5200mAh cell with lower internal resistance handles the current spike without triggering the cutoff.
Speaker warm inside the fabric housing during extended play
