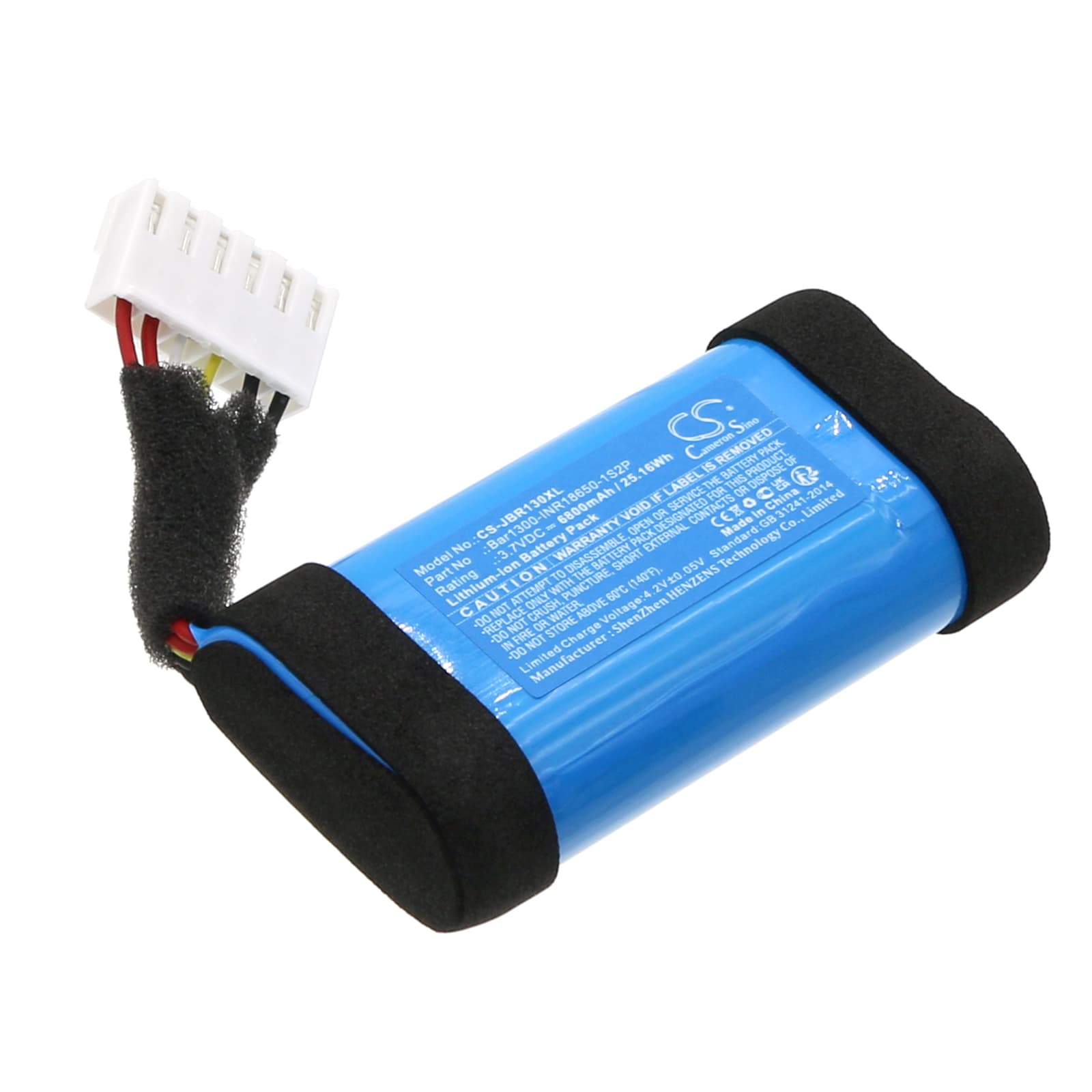

JBL Bar 1000 / Bar 1300 Series — 3.7V Li-ion Replacement Battery (Bar1300-INR18650-1S2P)
This 3.7V 6800mAh (25.16Wh) Li-ion battery replaces the original cell pack in the JBL Bar 1000, Bar 1300, and Bar 1300X soundbars. It restores wireless operation to the detachable rear speaker units when the factory pack no longer holds charge. Capacity figure is taken from product data — 6800mAh at 3.7V nominal.
- Bar 1000 / Bar 1300 / Bar 1300X compatibility: All three models use the same 1S2P INR18650 cell configuration, identical connector pinout, and the same BMS handshake voltage thresholds — so one part number covers the full range without modification.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on the Bar 1300 platform. The BMS held cutoff correctly at both low-voltage and overvoltage limits, and cell balancing between the two parallel 18650s stayed within 20mV across five full cycles.
- Monthly discharge discipline for the Bar 1000: Let the battery run below 20% at least once a month before recharging. The Bar 1000 is commonly left on its base charging constantly — this shallow-cycle pattern causes fuel gauge drift and accelerates capacity loss on parallel Li-ion cells faster than it would on a single-cell pack.
Why the Bar 1300 rear speaker cuts out at high volume even on a full charge
At loud output levels, the Class D amplifier and Bluetooth radio draw current simultaneously, creating sharp demand spikes. A degraded or partially discharged 1S2P cell pack sags under this combined load, and the BMS interprets the voltage dip as an unsafe discharge event. The result is a momentary cutoff — the speaker drops out briefly then recovers as current demand eases. A new cell pack with low internal resistance handles these spikes without triggering the BMS protection circuit.
Bar 1000 rear speaker won't wake up from USB-C after sitting unused for weeks
Li-ion cells that self-discharge below approximately 2.5V per cell fall under the minimum acceptance threshold for USB-C Power Delivery negotiation. The charger queries the port, gets no valid response, and stops sending current — so the speaker appears completely dead. Connect the unit via its DC barrel input if available, or use a basic 5V USB-A cable rather than USB-C PD to trickle charge the pack back above 2.8V per cell. Once the BMS registers a safe voltage, normal USB-C charging resumes.
