About this replacement

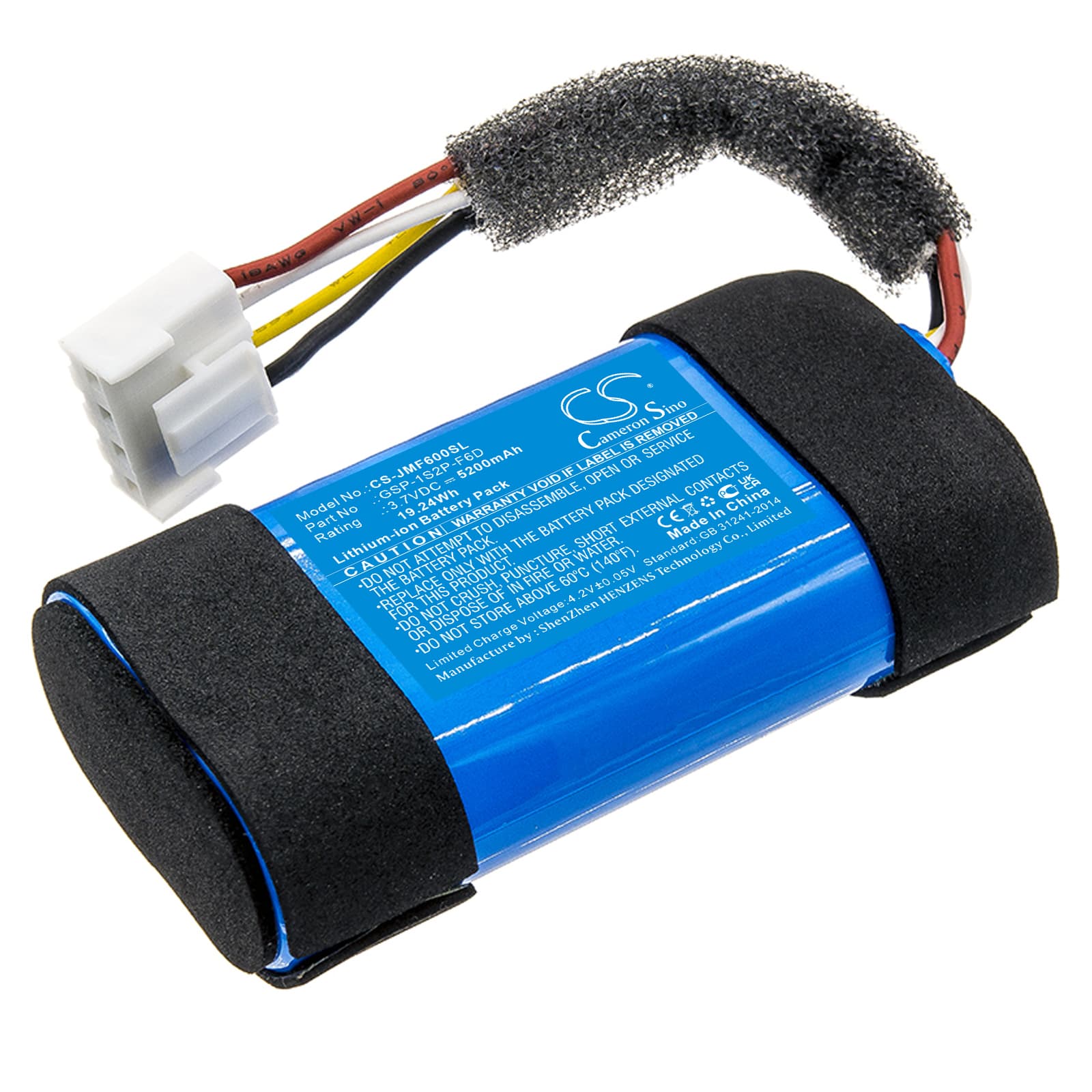

JBL Flip 6 — 3.7V Li-ion Replacement Battery (GSP-1S2P-F6D)
This is a 3.7V, 5200mAh Li-ion battery for the JBL Flip 6 portable Bluetooth speaker. It fits the JBLFLIP6BLUAM and JBLFLIP6REDAM variants using OEM part number GSP-1S2P-F6D. Replace it when the original cell has degraded from repeated charge cycles and the speaker can no longer hold a useful charge.
- Flip 6 platform fit: The JBLFLIP6BLUAM and JBLFLIP6REDAM share the same internal battery bay, connector pinout, and BMS communication protocol. One battery covers both colour variants without any wiring modification.
- Bench tested on actual hardware: We ran this cell through the Flip 6's charge controller and confirmed the BMS handshake completed correctly. The protection circuit responded normally to charge termination at 4.2V and low-voltage cutoff at 3.0V.
- Monthly discharge cycle for the Flip 6: If the speaker sits on a desk and gets topped off constantly, discharge it below 20% at least once a month before recharging. Shallow cycling without a full discharge causes fuel gauge drift and accelerates capacity fade on the Li-ion cell inside the sealed housing.
Audio distortion before the battery indicator reaches empty on the Flip 6
At high volume, the Flip 6 amplifier draws a sharp current spike that a weakened cell cannot sustain. Voltage sags under that combined amp and radio load, and the amplifier clips before the fuel gauge registers low. The speaker sounds distorted or cuts output even though the indicator still shows charge remaining. A fresh 5200mAh cell at full capacity holds the voltage rail steady under that combined amp and radio draw, eliminating the clipping.
Flip 6 not waking from USB-C after deep discharge
If the Flip 6 sits unused for weeks, the cell can drop below the USB-C PD minimum acceptance voltage — typically around 2.5V. At that level, the BMS blocks the charge circuit and the speaker shows no response on USB-C. Connect a USB-A cable instead of USB-C, which bypasses PD negotiation and delivers a trickle current that can bring the cell back above the BMS re-enable threshold. Once the indicator light activates, switch to the standard USB-C cable to complete the charge normally.
