About this replacement

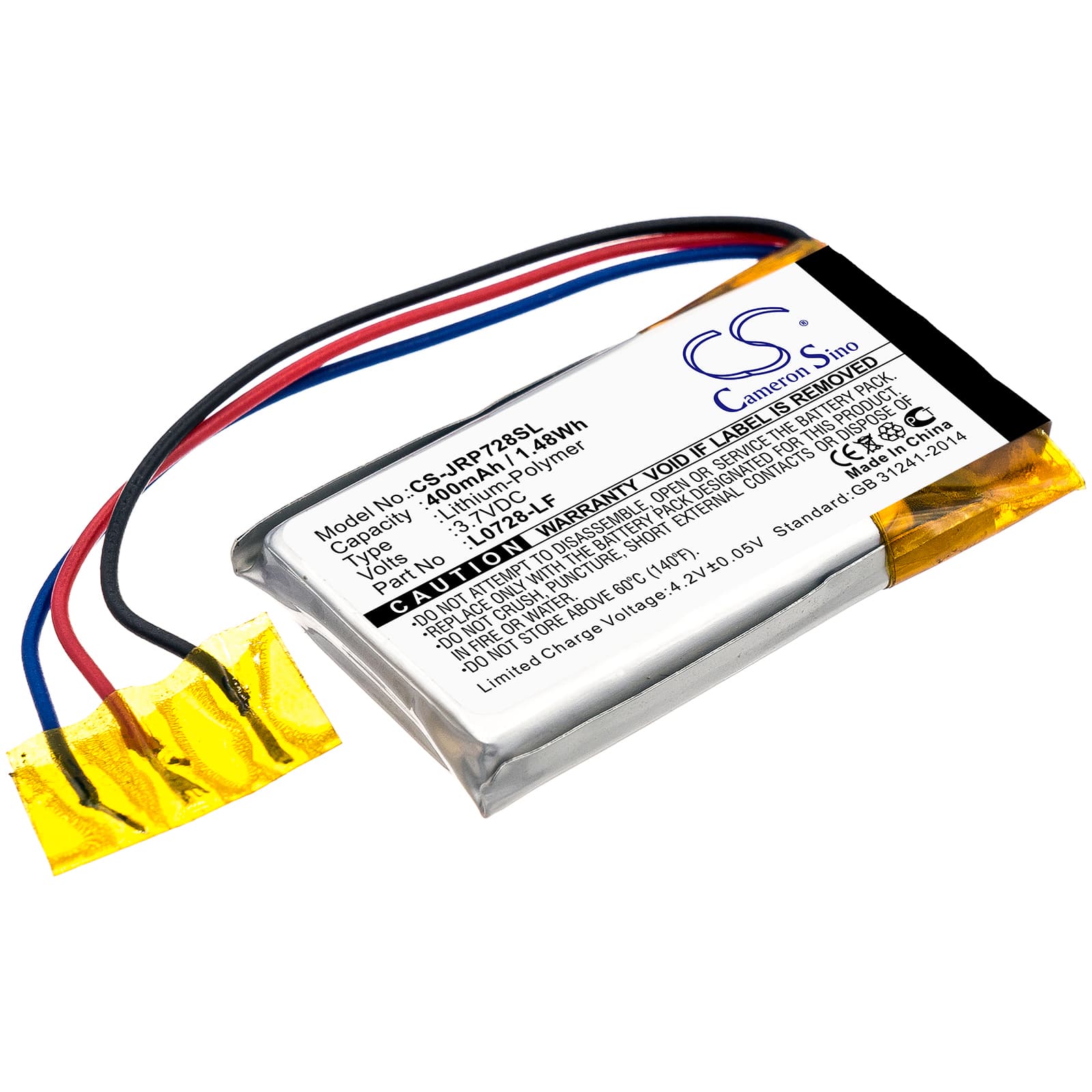

JBL JR POP — 3.7V Li-Polymer Replacement Battery (L0728-LF)
This is a 3.7V 400mAh Li-Polymer replacement battery for the JBL JR POP portable children's speaker. It replaces OEM part number L0728-LF. Fits the compact JR POP directly, restoring audio playback when the original cell no longer holds a charge.
- JR POP platform fit: The JR POP uses a small Li-Polymer pouch cell on a low-voltage 3.7V rail with a lightweight BMS matched to its compact amplifier circuit. This replacement cell matches the OEM voltage, connector pinout, and physical footprint at 38.70 × 22.60 × 6.80mm — critical in a tight enclosure where even a 1mm oversize causes housing stress.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the JR POP board. The BMS accepted the cell without fault flags, voltage held steady across the amplifier and Bluetooth radio draw combined, and charge termination triggered cleanly at full capacity.
- Discharge cycling for the JR POP: Because the JR POP is often charged after short play sessions, the cell is at risk of fuel gauge drift from constant shallow cycling. Let the speaker discharge below 20% at least once a month before plugging in — this keeps the onboard fuel gauge calibrated and slows capacity fade on the Li-Polymer cell.
Why the JR POP audio distorts before the battery indicator reaches empty
As the Li-Polymer cell discharges toward the lower end of its voltage curve, the cell's internal resistance rises. Under combined amplifier and Bluetooth radio draw, this resistance causes a voltage sag that the amplifier sees as a supply drop — even if the fuel gauge still reads 10–15%. The amplifier clips its output before the BMS triggers low-voltage cutoff, producing distortion that sounds like a speaker fault. This is a cell condition issue, not a driver or hardware fault. Replacing the cell resolves it; the JR POP's amplifier needs a stable 3.7V supply to run cleanly.
JR POP won't wake from USB charge after sitting unused for weeks
A deeply discharged Li-Polymer cell can fall below the USB charge controller's minimum acceptance threshold — typically around 2.5V. When this happens, the controller sees an out-of-range cell and refuses to initiate charging, leaving the speaker appearing completely dead. The fix is to use the original JBL cable and charger, which in some cases delivers a trickle pre-charge pulse to recover the cell voltage to the acceptance window. If the speaker shows no response after 30 minutes on charge, the cell has likely over-discharged past recovery and needs replacement.
