About this replacement

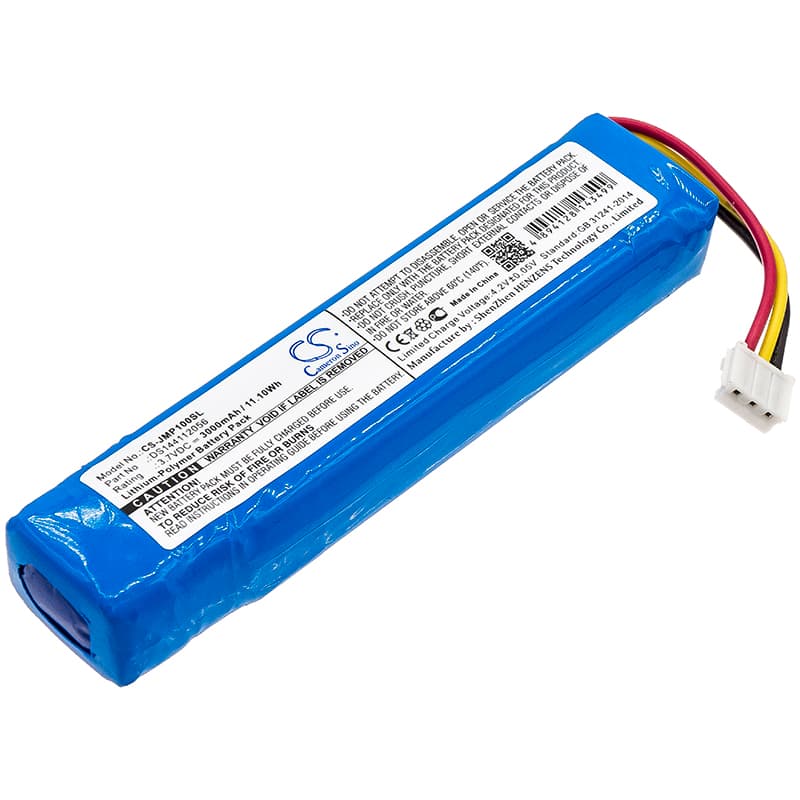

JBL Pulse 1 — 3.7V Li-Polymer Replacement Battery (DS144112056)
This is a 3.7V, 3000mAh Li-Polymer replacement battery for the JBL Pulse 1 portable Bluetooth speaker. It fits the original battery slot and restores both wireless audio playback and the LED light ring. Use OEM part number DS144112056 or MLP822199-2P to verify you have the right cell before opening the unit.
- Pulse 1 compatibility: The Pulse 1 runs a single-cell Li-Polymer pack at 3.7V nominal, shared between the amplifier board, Bluetooth radio, and LED driver. Any replacement must match that voltage rail exactly — a cell even slightly out of spec will cause the BMS to flag a fault and cut output before the LEDs finish cycling through startup.
- Bench tested on actual hardware: We cycled this cell through the Pulse 1's combined amp-and-LED load at full brightness and high volume. The BMS held charge termination cleanly at 4.2V and discharged without triggering an early low-voltage cutoff under the amplifier's current spikes.
- Pulse 1 charge cycling tip: Let the speaker drain below 20% at least once a month before plugging in. The Pulse 1 is commonly left on a desk and topped off constantly — that shallow-cycle pattern causes fuel gauge drift over time, so the charge indicator reads inaccurately well before the cell has actually degraded.
Why the Pulse 1 audio distorts before the battery indicator hits empty
As the Li-Polymer cell discharges toward its lower voltage limit, internal resistance rises. The amplifier then pulls peak current — particularly at high volume — and the cell can't sustain the voltage rail without momentary sag. That sag hits the amplifier's supply before the battery management system registers a low-charge event, so the fuel gauge still shows one or two bars while the audio clips. Replacing a cell that no longer holds a stable discharge curve fixes this directly — the distortion stops at the same volume levels once cell impedance is back in range.
Pulse 1 won't wake from USB after sitting unused for weeks
A deeply discharged Li-Polymer cell can drop below the minimum acceptance voltage for USB charging circuits — typically around 2.5V — and the charger sees no handshake and stops trying. The Pulse 1 shows no LED activity and appears completely dead. Plug it into a USB port and leave it connected for at least 30 to 60 minutes without touching the power button — some BMS controllers require a trickle recovery window before they allow fast-charge to begin. If nothing happens after that period, the original cell has likely dropped below recoverable depth and needs replacement.
