About this replacement

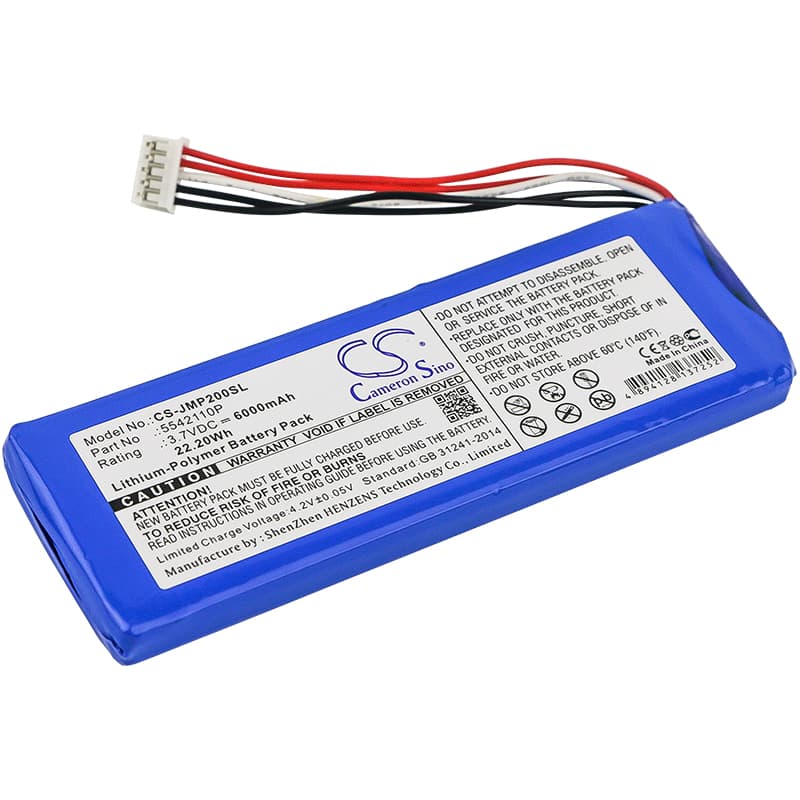

JBL Pulse 2 — 3.7V Li-Polymer Replacement Battery (5542110P)
This is a 3.7V, 6000mAh Li-Polymer replacement battery for the JBL Pulse 2 Bluetooth speaker. It fits the Pulse 2, Pulse II, and PULSE2BLKUS variants. Swapping this cell restores wireless audio playback and the LED light synchronisation the speaker is known for.
- Pulse 2, Pulse II, PULSE2BLKUS compatibility: All three model designations share the same internal cell bay, connector pinout, and BMS handshake protocol. The 5542110P part number covers the full production run of this speaker across regions.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on a Pulse 2 unit. The BMS accepted the cell without fault flags, the LED ring initialised normally, and the speaker held stable voltage under combined amplifier and radio draw at high volume.
- Monthly discharge cycle for Pulse 2: This speaker spends most of its life plugged in on a desk between uses. Let the cell drop below 20% at least once a month before recharging — constant top-off charging without a full discharge causes fuel gauge drift and accelerates capacity fade on the Li-Polymer cell.
Why the Pulse 2 reads full charge but audio cuts early
The Pulse 2 fuel gauge reads state-of-charge based on voltage curves calibrated to a healthy cell. When the cell ages from shallow cycling — never discharging below 50% — the gauge loses accuracy and overreports remaining charge. The speaker then shuts down from low-voltage cutoff while the indicator still shows bars. A new cell alone does not fix a drifted gauge; you need two or three full discharge-to-recharge cycles after installation to let the BMS recalibrate its voltage-to-capacity mapping.
Audio distorting before the battery indicator reaches empty
At high volume, the amplifier draws a sharp current spike that causes voltage sag on a weakened cell. The amplifier clips when supply voltage drops below its operating floor — that clipping sounds like distortion or crackling, and it happens well before the battery indicator reads empty. The battery indicator reflects average resting voltage, not the sag voltage under peak load. If this distortion disappears at moderate volume but returns when the speaker is loud, the cell is the cause — check resting voltage after a full charge; it should sit at or above 4.1V.
