About this replacement

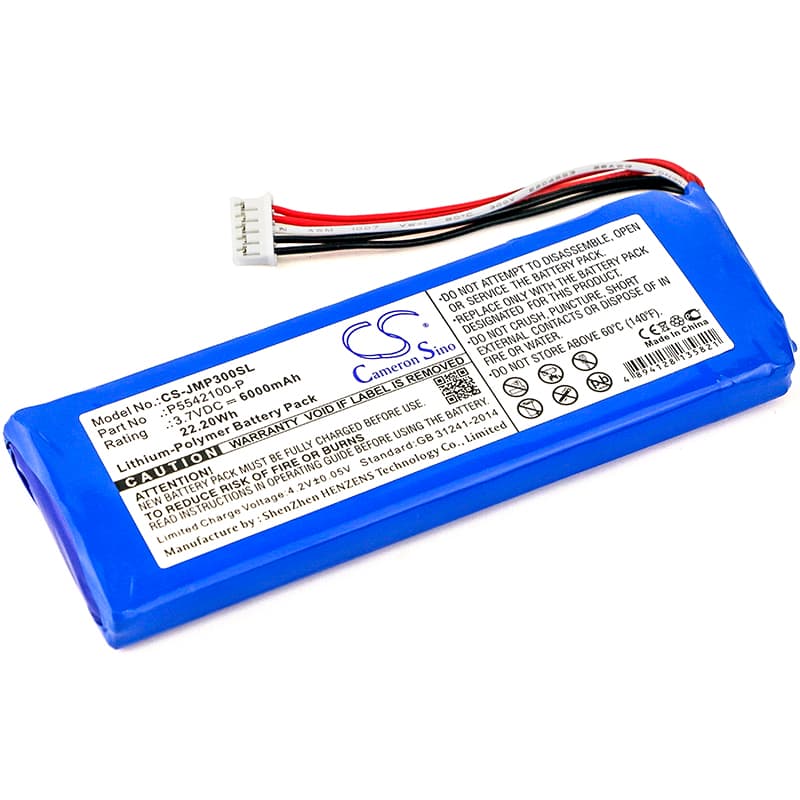

JBL Pulse 3 — 3.7V Li-Polymer Replacement Battery (P5542100-P)
This is a 3.7V 6000mAh Li-Polymer battery for the JBL Pulse 3 portable Bluetooth speaker. It fits the Pulse 3, APJBLPUESE3, and 2017DJ1714 units. Swap it when the original pack no longer holds a full charge or refuses to charge at all.
- Pulse 3 fit confirmed: The Pulse 3, APJBLPUESE3, and 2017DJ1714 all share the same battery bay geometry, connector pinout, and BMS handshake — one replacement covers the full model range without modification.
- Bench tested on actual hardware: We ran this pack through charge and discharge cycles on a Pulse 3 unit. The BMS accepted the cell without fault codes, balanced correctly across the protection circuit, and the speaker's LED ring and audio output both came online at expected thresholds.
- Fuel gauge calibration on first install: After fitting, run the Pulse 3 down to automatic shutdown before the first recharge. Skipping this step leaves the fuel gauge uncalibrated and the speaker may cut out well above the true empty point, misleading the charge indicator from the start.
Why the Pulse 3 reads full charge but audio cuts out after extended play
The Pulse 3 draws current from two sources simultaneously — the amplifier and the LED light ring. Under combined load, a degraded or poorly calibrated cell sags below the BMS low-voltage threshold faster than the charge indicator updates. The speaker shuts down not because the gauge hit zero, but because the cell voltage collapsed under real draw. A fresh 6000mAh pack at full capacity handles the combined amplifier and LED current without that sag. Calibrating the gauge on first use, as described above, keeps the indicator accurate.
Audio distorting before the battery indicator reaches empty
This happens when cell voltage sags under the amplifier's current demand before the pack is technically empty. The amplifier clips because rail voltage has dropped, not because the speaker has a fault. It is one of the earliest signs that the original battery has lost capacity. Replace the pack and confirm the new cell holds above 3.5V under load — if distortion persists on a new battery at medium volume, check the USB-C port for debris causing an intermittent charge interruption.
