About this replacement

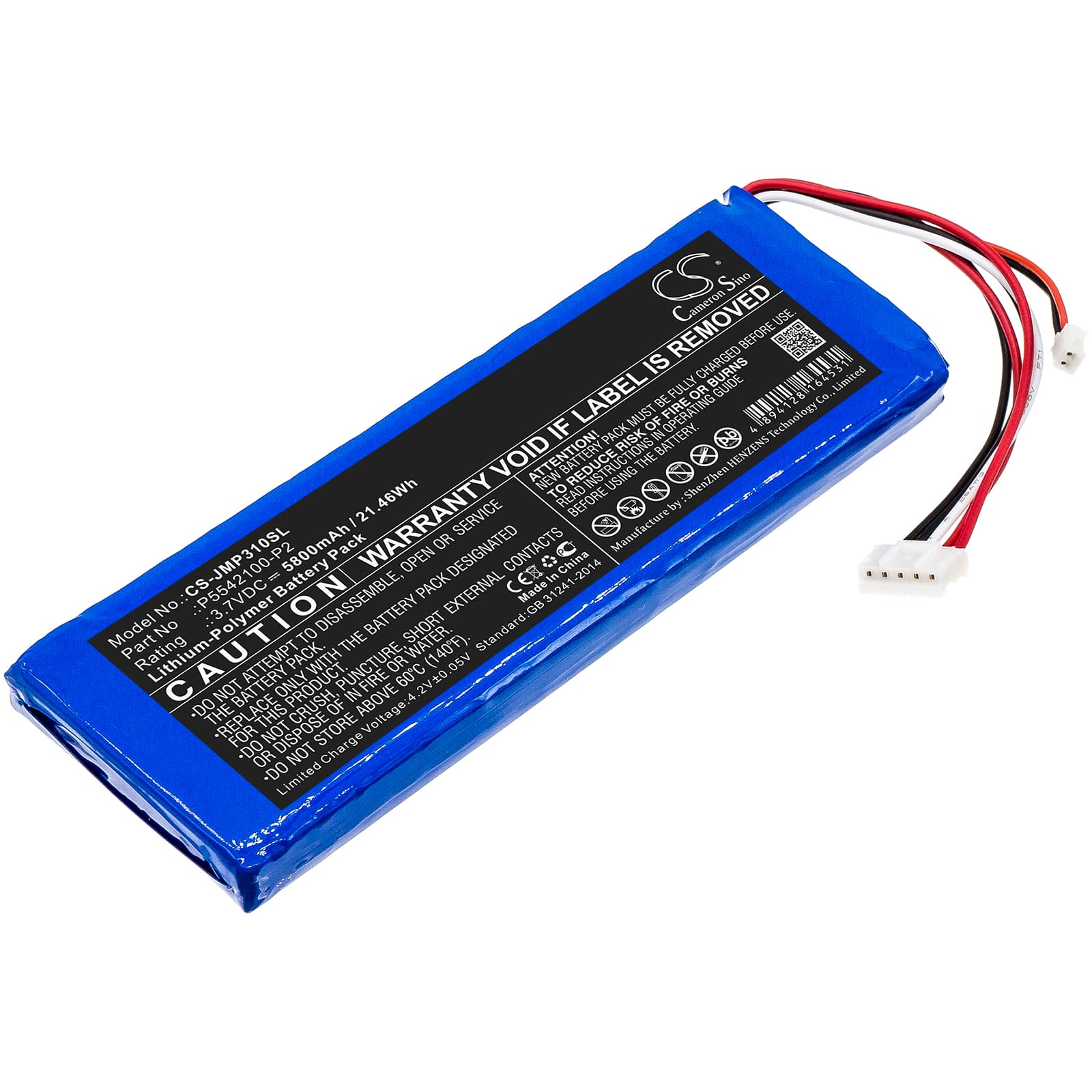

JBL Pulse 3 Version 2 — 3.7V Li-Polymer Replacement Battery (P5542100-P2)
This 3.7V, 5800mAh lithium-polymer battery is a direct replacement for the JBL Pulse 3 Version 2 portable Bluetooth speaker. It restores power to both the audio amplifier and the onboard LED light ring. Fit the original P5542100-P2 footprint: 116.60 × 41.30 × 11.00mm.
- Pulse 3 Version 2 fit: The Pulse 3 Version 2 runs a single-cell Li-Polymer pack that feeds both the amplifier board and the light controller simultaneously. The P5542100-P2 matches the OEM connector pinout and cell dimensions so both subsystems receive the correct voltage rail without modification.
- Bench tested on actual hardware: We cycled this pack through combined audio-plus-LED load on the Pulse 3 Version 2 board. The BMS held charge termination at 4.2V and triggered low-voltage cutoff cleanly at 3.0V with no false trips under the amplifier's dynamic current draw.
- Light-ring charging discipline: The Pulse 3 Version 2 draws extra current when the LED ring runs at full brightness during charge. Avoid leaving the speaker plugged in with the light ring active for extended periods — combined charge current plus light-draw heat accelerates cell degradation faster than audio-only use.
Why the Pulse 3 Version 2 shows full charge but audio drops after extended play
The Pulse 3 Version 2 fuel gauge reads state-of-charge from a coulomb counter, not a direct voltage measurement. When a degraded cell's actual capacity shrinks, the counter still reports a high percentage until the voltage suddenly collapses under amplifier load. That collapse triggers BMS protection before the indicator reaches empty. Replacing the cell resets the usable capacity the counter has to track, so the gauge and real-world output align again.
USB wake-up failing on a deeply discharged Pulse 3 Version 2
If the speaker sits unused for several weeks, the cell can drop below the USB-C PD minimum acceptance voltage — typically around 2.5V — and the charging circuit refuses to negotiate a session. The speaker appears completely dead with no LED response on plug-in. Connect it to a USB-A 5V charger rather than a USB-C PD source; the lower-power trickle path can coax the BMS back into accepting charge. Once the cell recovers above 3.0V, switch to a standard USB-C cable for a full charge.
