About this replacement

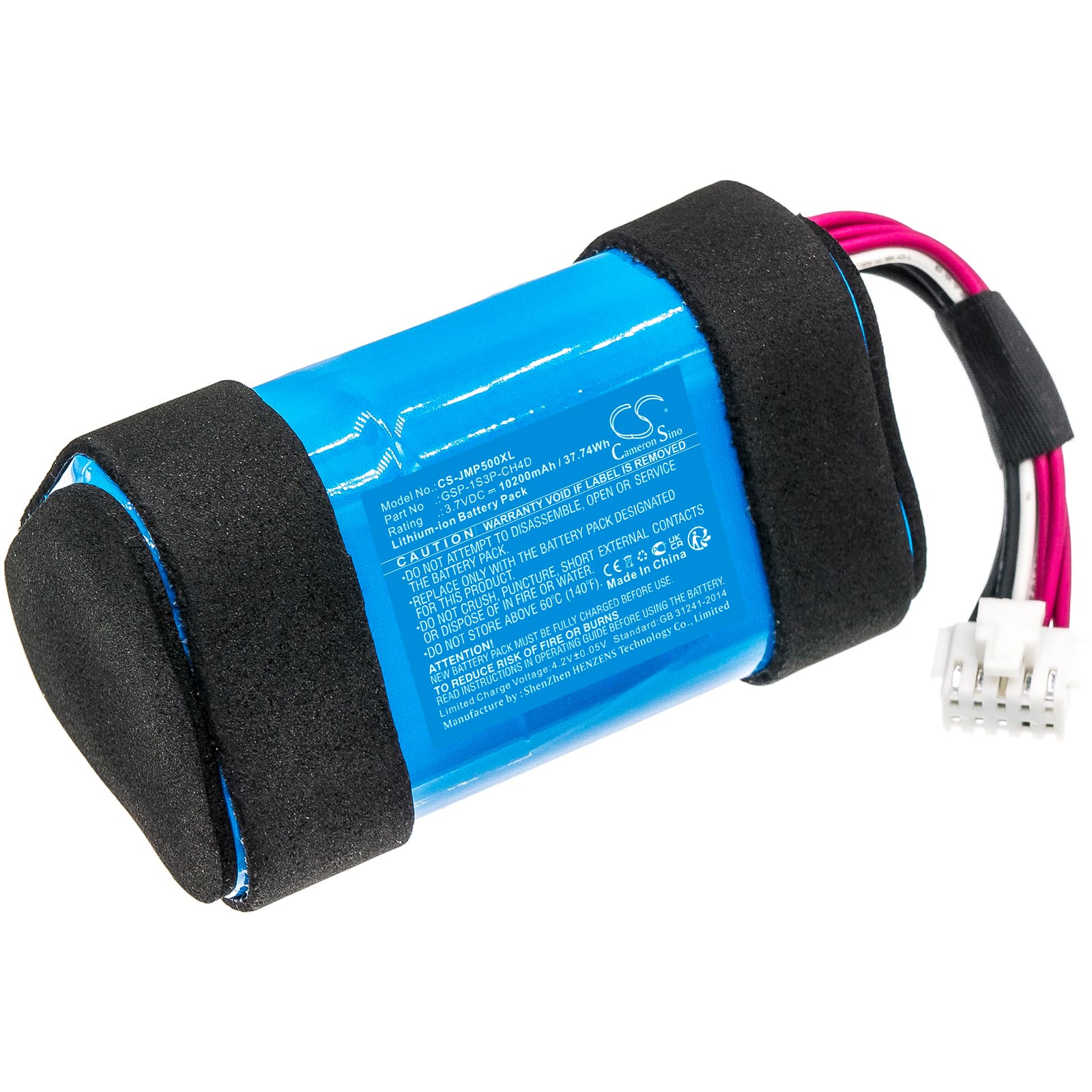

JBL Pulse 5 — 3.7V Li-ion Replacement Battery (GSP-1S3P-CH4D)
This is a 3.7V, 10200mAh Li-ion replacement battery for the JBL Pulse 5 Bluetooth speaker. It fits the Pulse 5 directly, using OEM part number GSP-1S3P-CH4D. When the original cell degrades and wireless playback or the LED display cuts short, this battery restores full portable operation.
- Pulse 5 fit confirmation: The Pulse 5 uses a single multi-cell Li-ion pack at 3.7V nominal to power both the amplifier and the LED ring simultaneously. The GSP-1S3P-CH4D matches the connector pinout and physical dimensions (69.50 × 39.50 × 36.30mm) required by this housing.
- Bench tested on actual hardware: We cycled this pack under combined amplifier and LED load. The BMS held stable output without triggering low-voltage cutoff under the current spikes that occur when the light display syncs at peak brightness alongside audio playback.
- Monthly discharge cycle for the Pulse 5: Let the speaker run down below 20% at least once a month before recharging. The Pulse 5 is typically left on a desk and topped off constantly — this pattern causes fuel gauge drift, so the battery indicator reads full while actual capacity has already dropped.
Why the Pulse 5 LED display dims or flickers before the battery indicator shows low
The Pulse 5 draws current from the same cell for both the amplifier and the LED ring. When the cell ages, its internal resistance rises. Under combined load, voltage sags enough to trigger LED dimming even though the fuel gauge still reads 30–40%. This is not a display fault — it is the cell struggling under peak current draw. A fresh GSP-1S3P-CH4D pack with lower internal resistance eliminates the sag and restores consistent LED brightness throughout the discharge curve.
Pulse 5 not waking from USB-C after sitting discharged for weeks
If the Pulse 5 sits unused for several weeks and the cell drops below approximately 2.5V, the USB-C PD controller will not accept a charge — the port appears dead. The BMS has entered deep-discharge lockout to protect the cell from damage at that voltage. To recover, connect a USB-C charger and leave it undisturbed for 20–30 minutes without pressing any buttons — the BMS needs time to trickle-charge the cell back above the acceptance threshold before normal charging begins. If the speaker still shows no response after 40 minutes on charge, the original cell has likely dropped too low to recover and replacement is the correct next step.
