About this replacement

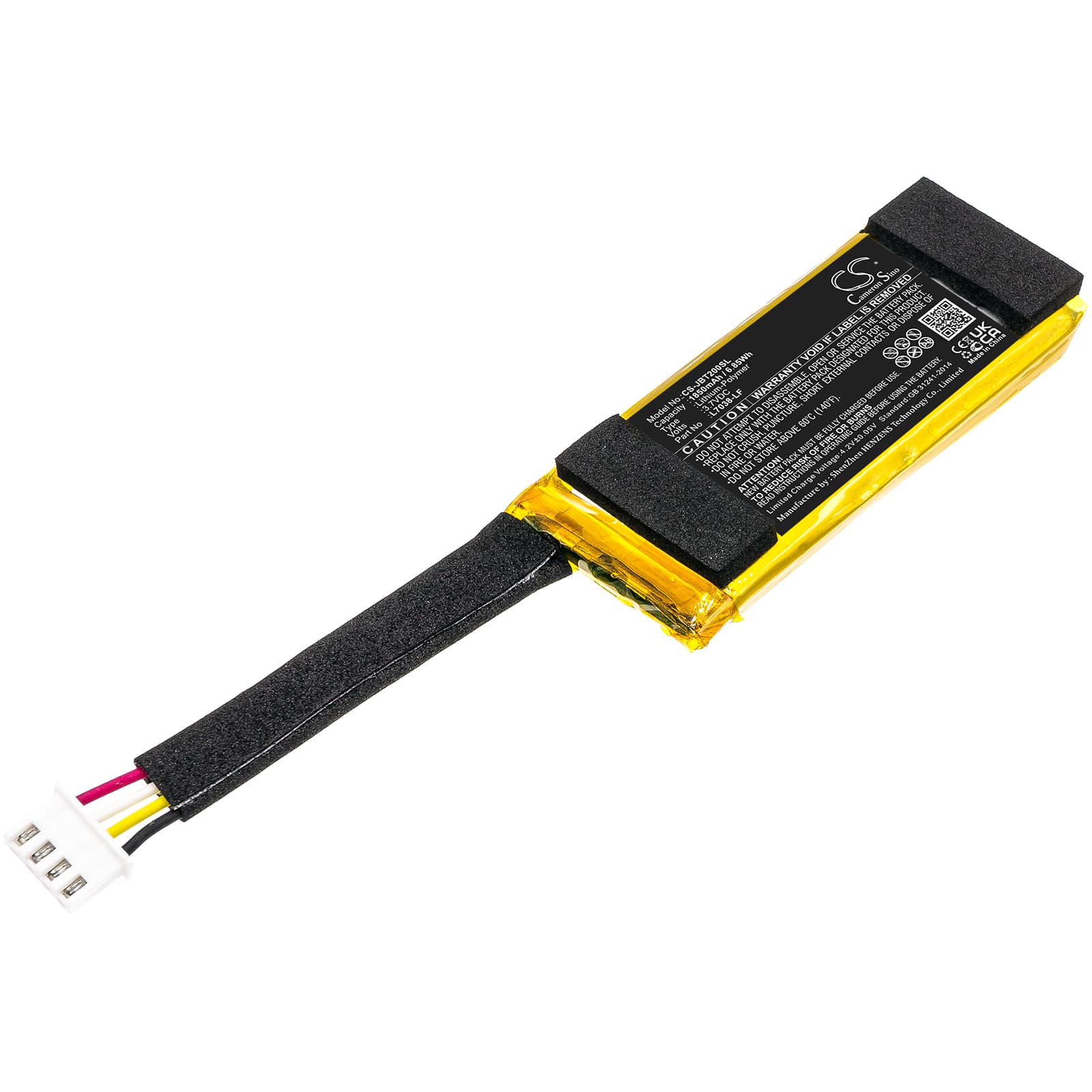

JBL Tuner — 3.7V Li-Polymer Replacement Battery (L0738-LF)
This is a 3.7V, 1850mAh Li-Polymer battery for the JBL Tuner portable speaker (AM0304). It replaces OEM part L0738-LF. When the original cell degrades, this swap restores wireless playback and FM radio operation away from the mains.
- Tuner and AM0304 compatibility: Both the Tuner and AM0304 share the same PCM connector, cell footprint (69.30 × 30.00 × 7.10mm), and 3.7V nominal rail — that's why one cell covers both model references without modification.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge passes on the Tuner board. The protection circuit responded correctly to end-of-charge and low-voltage cutoff thresholds, with no fault flags triggered during combined amplifier and Bluetooth radio draw.
- Monthly discharge cycle for the Tuner: If you use the Tuner at a desk and top it off constantly, let it run below 20% at least once a month before recharging. Continuous shallow cycling without a full discharge causes fuel gauge drift — the indicator reads full while actual capacity is already shrinking.
Audio distortion before the battery indicator reaches empty
As the Li-Polymer cell discharges past roughly 3.5V, voltage sag under combined amplifier and Bluetooth draw can push the amp stage below its clean operating threshold. The speaker clips the audio signal before the battery indicator registers low. This isn't a speaker fault — it's the cell struggling to hold voltage under load. Replacing a degraded cell that can no longer sustain 3.5V under peak draw resolves the distortion.
JBL Tuner won't accept a charge after sitting unused for months
A deeply discharged Li-Polymer cell can drop below the USB input's minimum acceptance voltage — typically around 2.5V — and the charging circuit simply won't initiate. The Tuner shows no charge indicator and feels unresponsive. Some chargers will trickle-recover the cell if left connected for 30–60 minutes at low current; others will not attempt recovery at all below that floor. If the cell won't recover past 2.8V after an extended charge attempt, the cell itself needs replacing.
