About this replacement

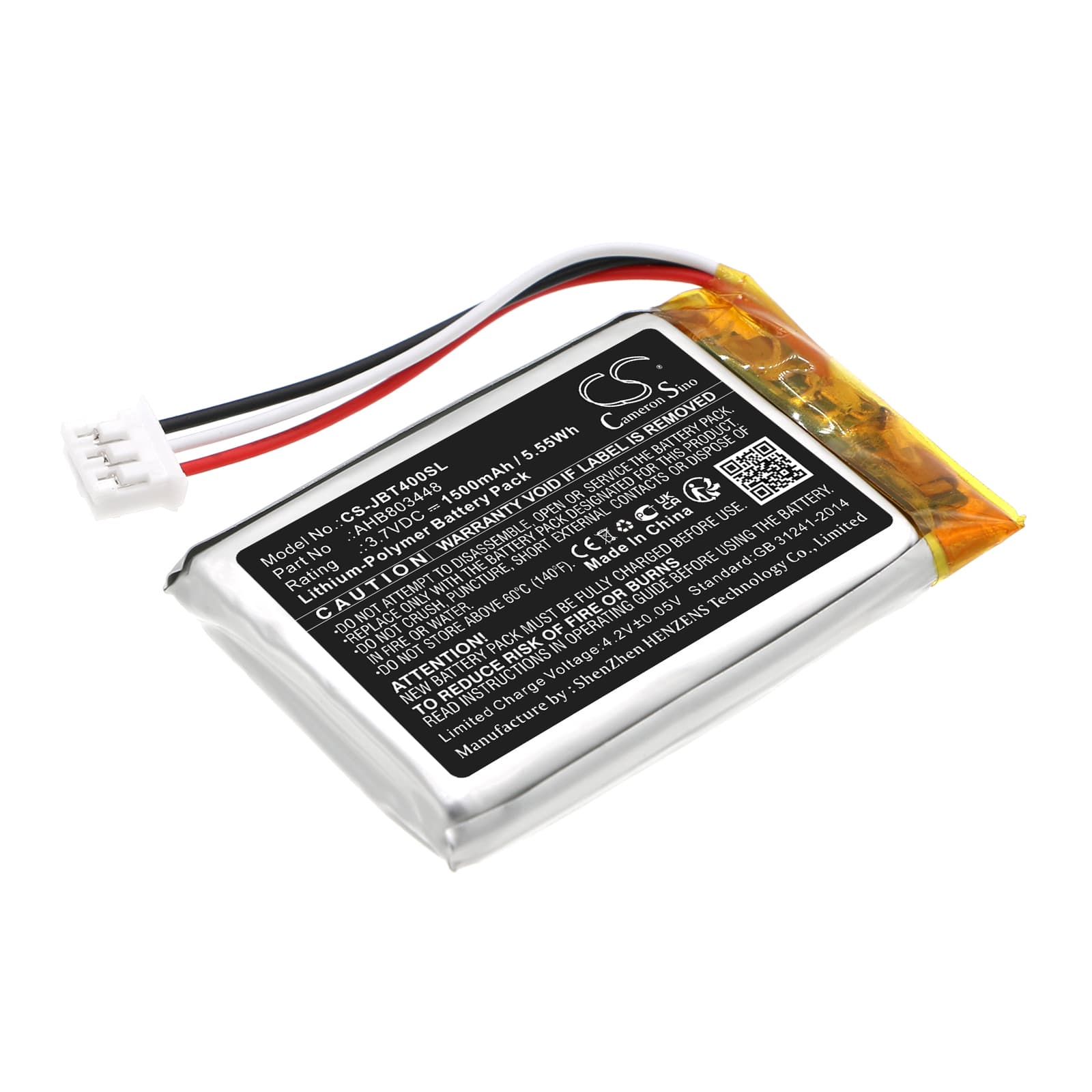

JBL Tuner 3 — 3.7V Li-Polymer Replacement Battery (AHB803448)
This 3.7V, 1500mAh lithium-polymer cell replaces the original AHB803448 battery in the JBL Tuner 3 portable Bluetooth speaker. It restores audio playback and wireless connectivity to speakers where the factory cell no longer holds a usable charge. Dimensions are 50.80 × 33.70 × 8.00mm — confirm these against your existing cell before ordering.
- Tuner 3 fit: The Tuner 3 runs a single-cell Li-Polymer pack at 3.7V nominal. The AHB803448 spec covers both the audio amplifier rail and the Bluetooth radio draw simultaneously. No voltage conversion — the cell connects directly to the protection circuit inside the speaker chassis.
- Bench tested on actual hardware: We cycled this cell through combined Bluetooth radio and amplifier load. The BMS held stable through peak current draws during loud audio playback and maintained cutoff thresholds at both the low-voltage and charge-complete limits.
- Fuel gauge calibration on the Tuner 3: Let the speaker discharge below 20% at least once a month before recharging. The Tuner 3 uses a coulomb-counting fuel gauge — constant top-off charging without a periodic fuller discharge causes the gauge to drift, making the battery indicator unreliable well before actual capacity loss sets in.
Audio distorting before the battery indicator reaches empty
As a Li-Polymer cell ages, its internal resistance rises. Under the combined current draw of the amplifier and Bluetooth radio at high volume, terminal voltage sags faster than the indicator reacts. The amplifier clips because the supply rail drops below what it needs — not because the cell is empty. A fresh AHB803448 cell has lower internal resistance, so the voltage sag under load is smaller and the amplifier stays above its clipping threshold. After fitting the replacement, check that the speaker plays cleanly at full volume with the indicator still showing above 30%.
Tuner 3 not waking from USB-C after sitting unused for weeks
A deeply discharged Li-Polymer cell can fall below the USB-C PD minimum acceptance voltage — typically around 2.5V — and the charger will not initiate a charge handshake. The speaker appears completely dead even with a cable connected. Some units recover with a 5V direct trickle applied for 10–15 minutes via a basic USB charger rather than a PD-capable brick, which coaxes the cell back above the threshold. If the cell has sat below 2.5V for an extended period, recovery is unlikely and replacement is the correct step.
