About this replacement

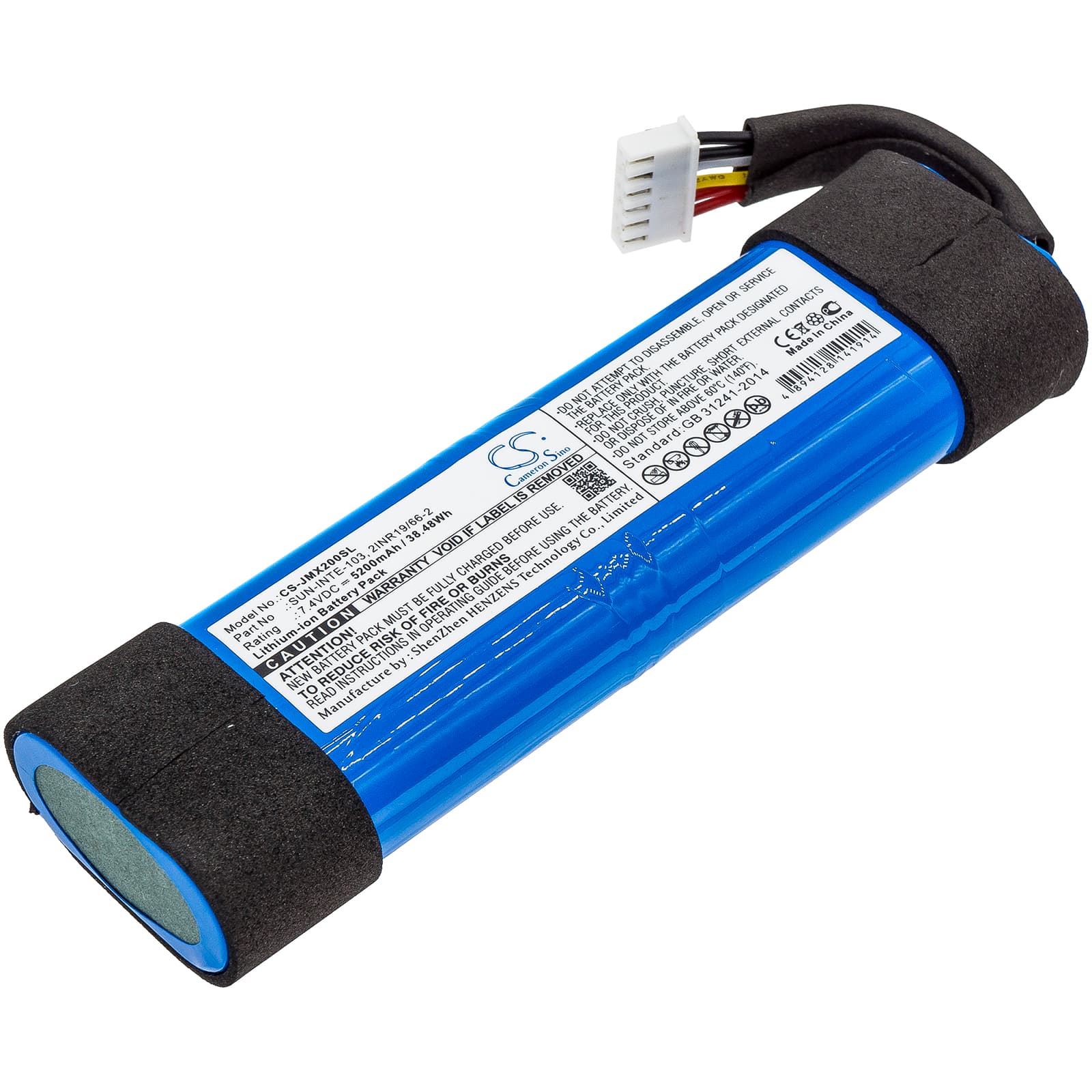

JBL Xtreme 2 — 7.4V Li-ion Replacement Battery (SUN-INTE-103)
This 7.4V, 5200mAh Li-ion battery replaces the original pack in the JBL Xtreme 2 portable Bluetooth speaker. It fits the JBLXTREME2BLKAM and JBLXTREME2BLUAM variants. Swap it in when the original cell no longer holds enough charge to get through a full session outdoors.
- Xtreme 2 compatibility: The Xtreme 2 uses a 2S Li-ion configuration at 7.4V nominal. The connector pinout and BMS communication on this pack match the original, so the speaker's charge indicator and protection circuitry read the cell state correctly.
- Bench tested on actual hardware: We cycled this pack through the Xtreme 2's charge circuit and monitored BMS handshake, cell balance across both strings, and cutoff behaviour at low voltage. Both cells balanced within spec and the protection board tripped correctly at the low-voltage threshold.
- Monthly discharge cycle for Xtreme 2 users: If the speaker sits on a desk and gets topped off constantly, run it down below 20% at least once a month before recharging. Shallow cycling without a full discharge causes fuel gauge drift on this platform, and the charge indicator will stop reflecting actual cell state.
Why the Xtreme 2 audio distorts before the battery indicator reaches empty
The Xtreme 2 amplifier draws a sharp current spike when reproducing bass-heavy content at high volume. As the cell ages and internal resistance climbs, voltage sags under that spike even when the indicator still shows two or three bars. The amplifier clips at the lower supply voltage, producing audible distortion before the BMS triggers a low-voltage cutoff. A fresh cell at 5200mAh with lower internal resistance absorbs that transient draw without the sag that causes clipping.
USB charging won't start after the Xtreme 2 sits unused for weeks
If the speaker is stored without use, the cell can discharge below the USB-C PD minimum acceptance voltage — typically under 6V for a 2S pack. At that point the charger handshake fails and the LED gives no response when you plug in. Connect the speaker to a 5V USB source and leave it for 15–20 minutes to let the BMS accept a trickle recovery charge before attempting a full charge cycle. If the LED still shows nothing after that window, check the cell resting voltage — anything below 5.4V across the pack means the cell needs replacement.
